Cambium Networks

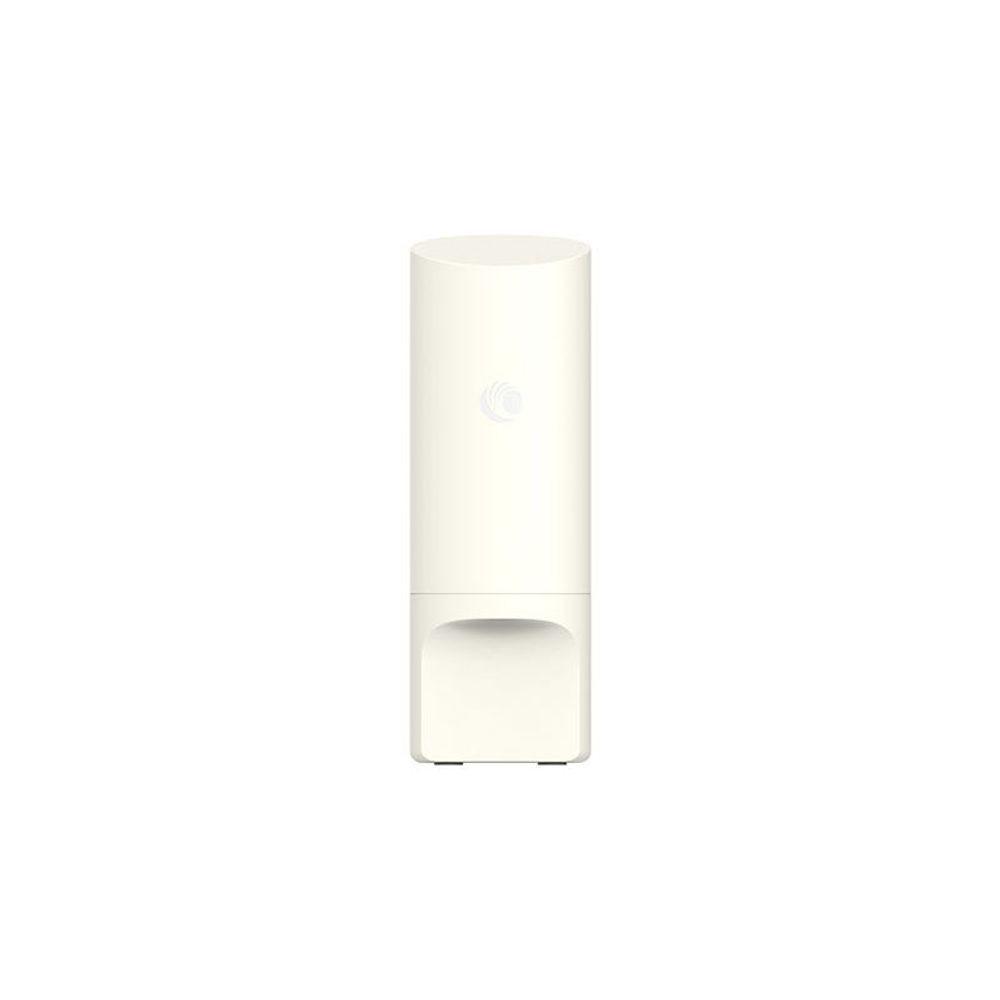

XV2-2T1 - Cambium XV2-2T1 Outdoor Dual Radio 2x2 WiFi 6 Access Point with 120deg Integrated Sector Antenna
XV2-2T1 - Cambium XV2-2T1 Outdoor Dual Radio 2x2 WiFi 6 Access Point with 120deg Integrated Sector Antenna
SKU:XV2-2T1
Regular price
$1,498.00 NZD
Regular price
Sale price
$1,498.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability
Cambium XV2-2T1 Outdoor Dual Radio 2x2 Wi-Fi 6 Access Point with 120° Integrated Sector Antenna and PoE Out port.
The XV2-2T1 is a dual radio WiFi6 access point (AP) designed for outdoor deployments in Wi-Fi hotspots, outdoor enterprise networks, hospitality, and education markets. Surge suppression up to 4kV and an LTE co-existence filter are featured.
The XV2-2T1 delivers Cambium 30VDC power out, or 48VDC for PoE devices connected to the second gigabit Ethernet port. Ideal for connecting the XV2-2T1 to a Cambium subscriber module (SM), Terragraph CN (connection node), or any IP and Ethernet device such as a security IP camera, or another Wi-Fi access point.
The new IEEE 802.11ax standard delivers higher network speeds and enables more connected devices at higher packet quality. In outdoor deployments, the IEEE 802.11ax standard delivers greater range by boosting the RF frame preamble by 3dB and improved signal quality with increased guard interval vs previous Wi-Fi technology. The XV2-2T1 is fully backward compatible with existing Wi-Fi technology and prepares a network for higher growth and greater density of Wi-Fi connected devices.
The XV2-2T1 is a dual radio WiFi6 access point (AP) designed for outdoor deployments in Wi-Fi hotspots, outdoor enterprise networks, hospitality, and education markets. Surge suppression up to 4kV and an LTE co-existence filter are featured.
The XV2-2T1 delivers Cambium 30VDC power out, or 48VDC for PoE devices connected to the second gigabit Ethernet port. Ideal for connecting the XV2-2T1 to a Cambium subscriber module (SM), Terragraph CN (connection node), or any IP and Ethernet device such as a security IP camera, or another Wi-Fi access point.
The new IEEE 802.11ax standard delivers higher network speeds and enables more connected devices at higher packet quality. In outdoor deployments, the IEEE 802.11ax standard delivers greater range by boosting the RF frame preamble by 3dB and improved signal quality with increased guard interval vs previous Wi-Fi technology. The XV2-2T1 is fully backward compatible with existing Wi-Fi technology and prepares a network for higher growth and greater density of Wi-Fi connected devices.
Features
- Compatible with Cambium Networks XMS or cnMaestro management system
- Dual radios 802.11ax (WiFi 6)
- 2.5 GbE uplink port
- 1 GbE with power out
- Outdoor IP67 rated, -40ºC to 65ºC
- HE 120º Sector Antenna
- Application policy control (requires XMS Cloud or Enterprise)
- EasyPass with Microsoft Azure and Google G Suite integration (requires XMS Cloud or Enterprise)
- 5 Year limited lifetime warranty
| Details | |
|---|---|
| Product Code | XV2-2T1XA00-RW |
| Radios | 2.4 GHz 802.11 b/g/n/ax, 2x2; 5 GHz 802.11 a/n/ac Wave 2/ax, 2x2 |
| Wi-Fi | 802.11 a/b/g/n/ac Wave 2/ax |
| SSID Security | WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open |
| Max PHY Rate | 2.4 GHz radio 573.5 Mbps; 5 GHz radio 1,201 Mbps |
| Ports | 1 x IEEE 10/100/1000/2500 Mbps Auto sensing MDIX, 1 x IEEE 10/100/1000 Mbps Ethernet with SW configurable passive PoE output of 30V or 48V up to 30 Watts |
| Antenna | 2.4 GHz 11 dBi, Sector; 5 GHz 13.5 dBi, Sector |
| Max EIRP | 2.4 GHz 35 dBm; 5 GHz 36 dBm |
| LTE Filter | Band 38, 40 |
| Power | 20 W max, Up to 50W when powering an auxiliary device |
| Dimensions | 582 mm x 200 mm x 80 mm |
| Weight | 1,200 g |
| Outdoor Rating | IP67 Rated |
| Ambient Operating Temperature | -40ºC to 65ºC |
| Storage Temperature | -40ºC to 70ºC |
| Humidity | 95% RH non-condensing |
| MTBF | 25ºC = 674,966 hours, 65ºC = 197,106 hours |
| Mount Options | Pole or wall mounting. Pole diameter: MIN 30 mm / MAX 75 mm |
| Details | |
|---|---|
| Power Supply | Sold Separately (N000000L142A) |
| Mounting Hardware | Pole or wall mounting. Pole diameter: MIN 30 mm / MAX 75 mm |
Specifications
Cambium XV2-2T1 Outdoor Dual Radio 2x2 Wi-Fi 6 Access Point with 120° Integrated Sector Antenna and PoE Out port.
The XV2-2T1 is a dual radio WiFi6 access point (AP) designed for outdoor deployments in Wi-Fi hotspots, outdoor enterprise networks, hospitality, and education markets. Surge suppression up to 4kV and an LTE co-existence filter are featured.
The XV2-2T1 delivers Cambium 30VDC power out, or 48VDC for PoE devices connected to the second gigabit Ethernet port. Ideal for connecting the XV2-2T1 to a Cambium subscriber module (SM), Terragraph CN (connection node), or any IP and Ethernet device such as a security IP camera, or another Wi-Fi access point.
The new IEEE 802.11ax standard delivers higher network speeds and enables more connected devices at higher packet quality. In outdoor deployments, the IEEE 802.11ax standard delivers greater range by boosting the RF frame preamble by 3dB and improved signal quality with increased guard interval vs previous Wi-Fi technology. The XV2-2T1 is fully backward compatible with existing Wi-Fi technology and prepares a network for higher growth and greater density of Wi-Fi connected devices.
The XV2-2T1 is a dual radio WiFi6 access point (AP) designed for outdoor deployments in Wi-Fi hotspots, outdoor enterprise networks, hospitality, and education markets. Surge suppression up to 4kV and an LTE co-existence filter are featured.
The XV2-2T1 delivers Cambium 30VDC power out, or 48VDC for PoE devices connected to the second gigabit Ethernet port. Ideal for connecting the XV2-2T1 to a Cambium subscriber module (SM), Terragraph CN (connection node), or any IP and Ethernet device such as a security IP camera, or another Wi-Fi access point.
The new IEEE 802.11ax standard delivers higher network speeds and enables more connected devices at higher packet quality. In outdoor deployments, the IEEE 802.11ax standard delivers greater range by boosting the RF frame preamble by 3dB and improved signal quality with increased guard interval vs previous Wi-Fi technology. The XV2-2T1 is fully backward compatible with existing Wi-Fi technology and prepares a network for higher growth and greater density of Wi-Fi connected devices.
Features
- Compatible with Cambium Networks XMS or cnMaestro management system
- Dual radios 802.11ax (WiFi 6)
- 2.5 GbE uplink port
- 1 GbE with power out
- Outdoor IP67 rated, -40ºC to 65ºC
- HE 120º Sector Antenna
- Application policy control (requires XMS Cloud or Enterprise)
- EasyPass with Microsoft Azure and Google G Suite integration (requires XMS Cloud or Enterprise)
- 5 Year limited lifetime warranty
| Details | |
|---|---|
| Product Code | XV2-2T1XA00-RW |
| Radios | 2.4 GHz 802.11 b/g/n/ax, 2x2; 5 GHz 802.11 a/n/ac Wave 2/ax, 2x2 |
| Wi-Fi | 802.11 a/b/g/n/ac Wave 2/ax |
| SSID Security | WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open |
| Max PHY Rate | 2.4 GHz radio 573.5 Mbps; 5 GHz radio 1,201 Mbps |
| Ports | 1 x IEEE 10/100/1000/2500 Mbps Auto sensing MDIX, 1 x IEEE 10/100/1000 Mbps Ethernet with SW configurable passive PoE output of 30V or 48V up to 30 Watts |
| Antenna | 2.4 GHz 11 dBi, Sector; 5 GHz 13.5 dBi, Sector |
| Max EIRP | 2.4 GHz 35 dBm; 5 GHz 36 dBm |
| LTE Filter | Band 38, 40 |
| Power | 20 W max, Up to 50W when powering an auxiliary device |
| Dimensions | 582 mm x 200 mm x 80 mm |
| Weight | 1,200 g |
| Outdoor Rating | IP67 Rated |
| Ambient Operating Temperature | -40ºC to 65ºC |
| Storage Temperature | -40ºC to 70ºC |
| Humidity | 95% RH non-condensing |
| MTBF | 25ºC = 674,966 hours, 65ºC = 197,106 hours |
| Mount Options | Pole or wall mounting. Pole diameter: MIN 30 mm / MAX 75 mm |
| Details | |
|---|---|
| Power Supply | Sold Separately (N000000L142A) |
| Mounting Hardware | Pole or wall mounting. Pole diameter: MIN 30 mm / MAX 75 mm |
