Cambium Networks

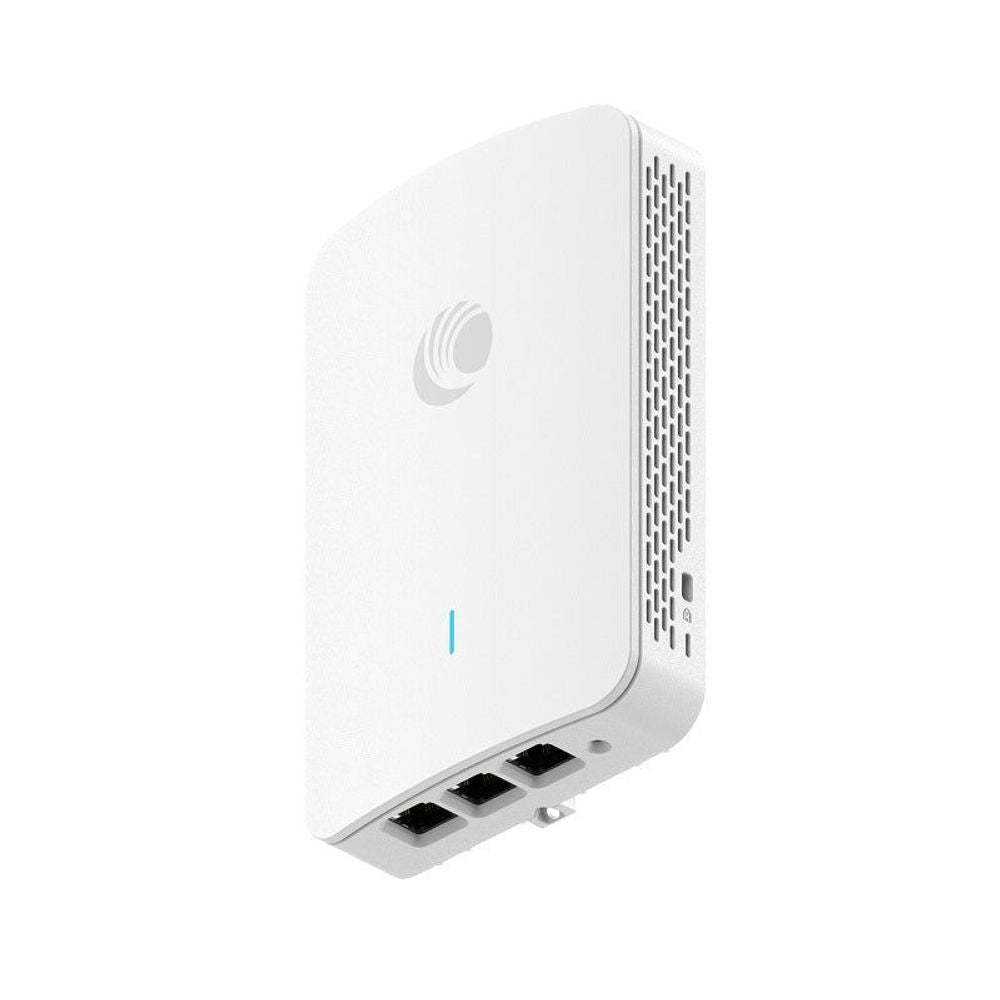

XV2-22H - Cambium XV2-22H Wallplate Dual-Radio WiFi 6 2x2 Access Point with 3x GbE (1x 48V PoE out)
XV2-22H - Cambium XV2-22H Wallplate Dual-Radio WiFi 6 2x2 Access Point with 3x GbE (1x 48V PoE out)
SKU:XV2-22H
Regular price
$699.00 NZD
Regular price
Sale price
$699.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability
Cambium XV2-22H Wallplate Dual-Radio WiFi 6 2x2 Access Point with 3x GbE and 48V PoE out. Enterprise grade software-defined access point.
The XV2-22H indoor Wi-Fi 6 AP offers 2.97 Gbps of bandwidth and an integrated switch. Ideal for hospitality, MDU, education and small/medium business applications.
Cloud-Managed Access
All Cambium WiFi6 access points are managed by cnMaestro from the cloud, an on-premises VM or a private datacenter. cnMaestro provides single-pane-of- glass dashboard for Wi-Fi, Ethernet, fixed wireless broadband and service provider home routers.
Cambium Networks Wi-Fi 6 wall plate access points (AP) put personal Wi-Fi in the room where people and devices connect. Designed for discreet installation on a flat wall surface or over a wiring box.
Do-Not-Disturb Hotel Design
Hotel guests connect to Wi-Fi before turning on the TV. Wi-Fi is a must-have to stay connected with coworkers, family and social media. With the XV2-22H wall plate AP, the guest will be delighted with a perfect connection to all their devices. Customize the cloud-managed guest access with a fully configurable cloud portal with templates, point and click interface, or HTML CSS.
Designed for fast installation
XV2-22H install quickly over a standard wiring box, or to other boxes and surfaces using the optional mounting adapters. XV2-22H has three gigabit Ethernet ports. All ports support 802.1Q VLANs, IGMP, switched virtual interface layer 3 routing, DHCP, and firewall. Deliver 10 watts of operating power to an external device such as a VoIP phone, an in-room IoT hub or even another AP. VLAN and IP segmentation allows secure connections to a TV set-top box, laptop, printer, or any networked device.
IoT Ready
Integrated 802.15.4 multi-functional radio supports either BLE, Zigbee, or Thread. Easily integrate with popular Zigbee based door access control systems or temperature control or enable BLE for close point of presence location services.
The XV2-22H indoor Wi-Fi 6 AP offers 2.97 Gbps of bandwidth and an integrated switch. Ideal for hospitality, MDU, education and small/medium business applications.
Cloud-Managed Access
All Cambium WiFi6 access points are managed by cnMaestro from the cloud, an on-premises VM or a private datacenter. cnMaestro provides single-pane-of- glass dashboard for Wi-Fi, Ethernet, fixed wireless broadband and service provider home routers.
Cambium Networks Wi-Fi 6 wall plate access points (AP) put personal Wi-Fi in the room where people and devices connect. Designed for discreet installation on a flat wall surface or over a wiring box.
Do-Not-Disturb Hotel Design
Hotel guests connect to Wi-Fi before turning on the TV. Wi-Fi is a must-have to stay connected with coworkers, family and social media. With the XV2-22H wall plate AP, the guest will be delighted with a perfect connection to all their devices. Customize the cloud-managed guest access with a fully configurable cloud portal with templates, point and click interface, or HTML CSS.
Designed for fast installation
XV2-22H install quickly over a standard wiring box, or to other boxes and surfaces using the optional mounting adapters. XV2-22H has three gigabit Ethernet ports. All ports support 802.1Q VLANs, IGMP, switched virtual interface layer 3 routing, DHCP, and firewall. Deliver 10 watts of operating power to an external device such as a VoIP phone, an in-room IoT hub or even another AP. VLAN and IP segmentation allows secure connections to a TV set-top box, laptop, printer, or any networked device.
IoT Ready
Integrated 802.15.4 multi-functional radio supports either BLE, Zigbee, or Thread. Easily integrate with popular Zigbee based door access control systems or temperature control or enable BLE for close point of presence location services.
Features
- Wall plate 802.11ax, 2x2 WiFi6 Access Point
- 3 x GbE Ethernet, one with PoE out
- RJ45 electrical pass-through ports
- BLE/Zigbee/Thread/Matter
- 5 Year Limited Lifetime Warranty
| Details | |
|---|---|
| Product Code | XV2-22H0A00-RW |
| Radios | 2.4 GHz 802.11 b/g/n/ax, 2x2:2; 5 GHz 802.11 a/n/ac Wave 2/ax, 2x2:2, 1x 802.15.4 or 1x 802.15.1 IoT transceiver, multi-protocol |
| Wi-Fi | 802.11 a/b/g/n/ac Wave 2/ax |
| SSID Security | WPA3-SAE, WPA3-Enterprise, WPA2 (802.11i), WPA2 AES, WPA2 Enterprise (802.1x/EAP), WPA PSK, Open |
| Max PHY Rate | 2.4 GHz radio 573.5 Mbps; 5 GHz radio 2402 Mbps |
| Ports | 1 x GE WAN, 2 x GE LAN, PoE out (up to 10W) |
| WiFi Antenna Gain | 2.4 GHz 4.47 dBi, Omni; 5 GHz 5.56 dBi, Omni |
| IoT Antenna Gain | 5.18 dBi, Omni |
| Max EIRP | 2.4 GHz 30 dBm; 5 GHz 28 dBm |
| Power | 802.3af or 802.3at powered device; Typical load, no power out: 10W; Typical load, with 10W power out: 20W |
| MTBF | 511k hours at 25ºC; 121.79k hours 45ºC |
| Dimensions | 160 mm x 105 mm x 32 mm |
| Weight | 417 g |
| Ambient Operating Temperature | 0ºC to 40ºC (32ºF to 122ºF) |
| Storage Temperature | -40ºC to 70ºC (-40ºF to 158ºF) |
| Humidity | 95% RH non-condensing |
| Details | |
|---|---|
| Power Supply | Sold Separately (N000000L034A) |
| Mounting Hardware | Wall or ceiling, T-bar with included locking bracket, ceiling tile plate |
Â
Â
Specifications
Â
Â
Cambium XV2-22H Wallplate Dual-Radio WiFi 6 2x2 Access Point with 3x GbE and 48V PoE out. Enterprise grade software-defined access point.
The XV2-22H indoor Wi-Fi 6 AP offers 2.97 Gbps of bandwidth and an integrated switch. Ideal for hospitality, MDU, education and small/medium business applications.
Cloud-Managed Access
All Cambium WiFi6 access points are managed by cnMaestro from the cloud, an on-premises VM or a private datacenter. cnMaestro provides single-pane-of- glass dashboard for Wi-Fi, Ethernet, fixed wireless broadband and service provider home routers.
Cambium Networks Wi-Fi 6 wall plate access points (AP) put personal Wi-Fi in the room where people and devices connect. Designed for discreet installation on a flat wall surface or over a wiring box.
Do-Not-Disturb Hotel Design
Hotel guests connect to Wi-Fi before turning on the TV. Wi-Fi is a must-have to stay connected with coworkers, family and social media. With the XV2-22H wall plate AP, the guest will be delighted with a perfect connection to all their devices. Customize the cloud-managed guest access with a fully configurable cloud portal with templates, point and click interface, or HTML CSS.
Designed for fast installation
XV2-22H install quickly over a standard wiring box, or to other boxes and surfaces using the optional mounting adapters. XV2-22H has three gigabit Ethernet ports. All ports support 802.1Q VLANs, IGMP, switched virtual interface layer 3 routing, DHCP, and firewall. Deliver 10 watts of operating power to an external device such as a VoIP phone, an in-room IoT hub or even another AP. VLAN and IP segmentation allows secure connections to a TV set-top box, laptop, printer, or any networked device.
IoT Ready
Integrated 802.15.4 multi-functional radio supports either BLE, Zigbee, or Thread. Easily integrate with popular Zigbee based door access control systems or temperature control or enable BLE for close point of presence location services.
The XV2-22H indoor Wi-Fi 6 AP offers 2.97 Gbps of bandwidth and an integrated switch. Ideal for hospitality, MDU, education and small/medium business applications.
Cloud-Managed Access
All Cambium WiFi6 access points are managed by cnMaestro from the cloud, an on-premises VM or a private datacenter. cnMaestro provides single-pane-of- glass dashboard for Wi-Fi, Ethernet, fixed wireless broadband and service provider home routers.
Cambium Networks Wi-Fi 6 wall plate access points (AP) put personal Wi-Fi in the room where people and devices connect. Designed for discreet installation on a flat wall surface or over a wiring box.
Do-Not-Disturb Hotel Design
Hotel guests connect to Wi-Fi before turning on the TV. Wi-Fi is a must-have to stay connected with coworkers, family and social media. With the XV2-22H wall plate AP, the guest will be delighted with a perfect connection to all their devices. Customize the cloud-managed guest access with a fully configurable cloud portal with templates, point and click interface, or HTML CSS.
Designed for fast installation
XV2-22H install quickly over a standard wiring box, or to other boxes and surfaces using the optional mounting adapters. XV2-22H has three gigabit Ethernet ports. All ports support 802.1Q VLANs, IGMP, switched virtual interface layer 3 routing, DHCP, and firewall. Deliver 10 watts of operating power to an external device such as a VoIP phone, an in-room IoT hub or even another AP. VLAN and IP segmentation allows secure connections to a TV set-top box, laptop, printer, or any networked device.
IoT Ready
Integrated 802.15.4 multi-functional radio supports either BLE, Zigbee, or Thread. Easily integrate with popular Zigbee based door access control systems or temperature control or enable BLE for close point of presence location services.
Features
- Wall plate 802.11ax, 2x2 WiFi6 Access Point
- 3 x GbE Ethernet, one with PoE out
- RJ45 electrical pass-through ports
- BLE/Zigbee/Thread/Matter
- 5 Year Limited Lifetime Warranty
| Details | |
|---|---|
| Product Code | XV2-22H0A00-RW |
| Radios | 2.4 GHz 802.11 b/g/n/ax, 2x2:2; 5 GHz 802.11 a/n/ac Wave 2/ax, 2x2:2, 1x 802.15.4 or 1x 802.15.1 IoT transceiver, multi-protocol |
| Wi-Fi | 802.11 a/b/g/n/ac Wave 2/ax |
| SSID Security | WPA3-SAE, WPA3-Enterprise, WPA2 (802.11i), WPA2 AES, WPA2 Enterprise (802.1x/EAP), WPA PSK, Open |
| Max PHY Rate | 2.4 GHz radio 573.5 Mbps; 5 GHz radio 2402 Mbps |
| Ports | 1 x GE WAN, 2 x GE LAN, PoE out (up to 10W) |
| WiFi Antenna Gain | 2.4 GHz 4.47 dBi, Omni; 5 GHz 5.56 dBi, Omni |
| IoT Antenna Gain | 5.18 dBi, Omni |
| Max EIRP | 2.4 GHz 30 dBm; 5 GHz 28 dBm |
| Power | 802.3af or 802.3at powered device; Typical load, no power out: 10W; Typical load, with 10W power out: 20W |
| MTBF | 511k hours at 25ºC; 121.79k hours 45ºC |
| Dimensions | 160 mm x 105 mm x 32 mm |
| Weight | 417 g |
| Ambient Operating Temperature | 0ºC to 40ºC (32ºF to 122ºF) |
| Storage Temperature | -40ºC to 70ºC (-40ºF to 158ºF) |
| Humidity | 95% RH non-condensing |
| Details | |
|---|---|
| Power Supply | Sold Separately (N000000L034A) |
| Mounting Hardware | Wall or ceiling, T-bar with included locking bracket, ceiling tile plate |
