Shuttle

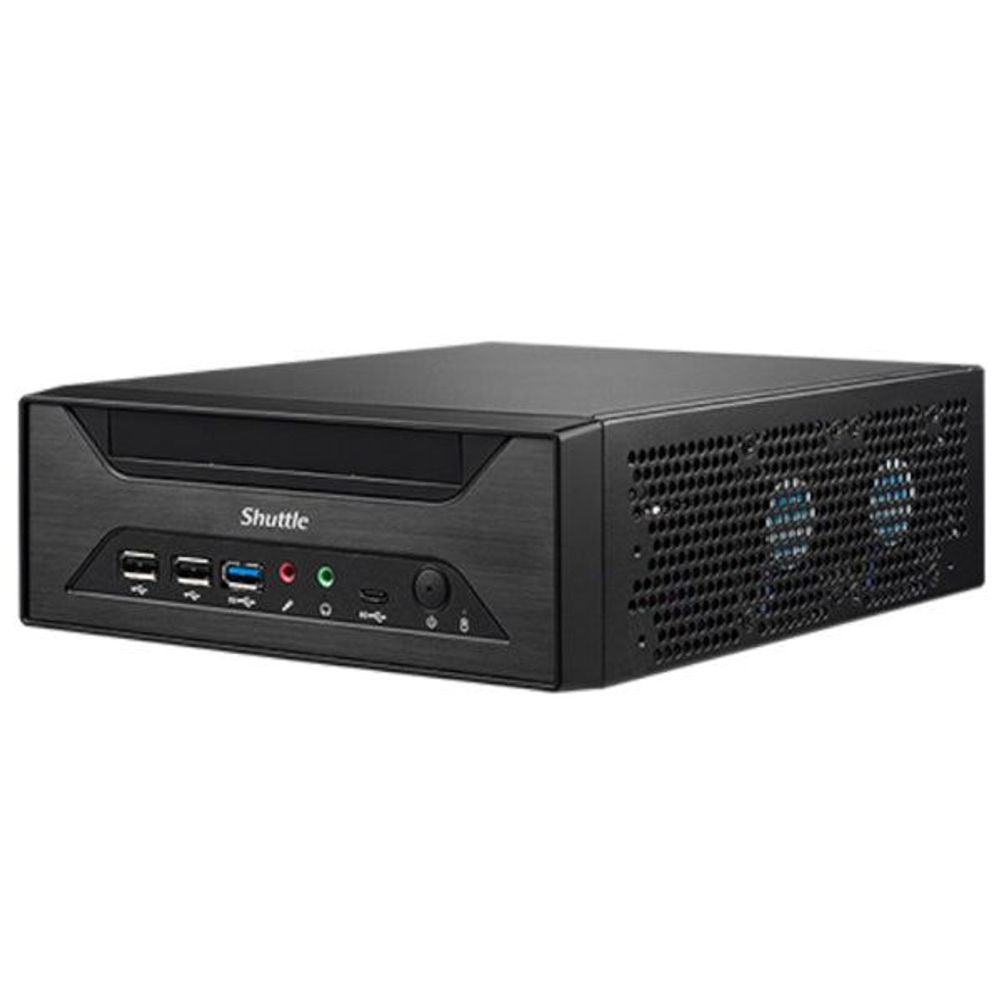

XH610 - Shuttle XH610 LGA1700 3.5L Barebones PC

XH610 - Shuttle XH610 LGA1700 3.5L Barebones PC

XH610

$946.67 NZD
$946.67 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Overview Shuttle XPC slim 3-liter XH610 is equipped with Intel® H610 chipset that supports Intel® 12th LGA1700 65W processors and delivers 4K UHD video content. Up to three displays can be used simultaneously via one HDMI 2.0b, one DisplayPort, and one VGA. Feature an extra storage expansion that supports three 2.5” HDD/SSD storage drives or one 3.5” HDD (with an optional PHD4). Besides, the series includes 4 x USB 3.2 Gen1 (Include one Type-C), 4 x USB 2.0, Intel® 1G + Intel® 2.5G LAN, 2 x M.2, and 2 x RS232 to perform its rich I/O capabilities. In addition, another optional accessory PCM31 can be chosen to support a max of five RS232 ports to connect peripheral devices and deliver a robust performance that can drive highly interactive kiosks, vending machines, digital signage, and surveillance applications.

Features

  • XH610
  • Intel LGA1700 CPU
  • H610 Chipset
  • 2x DDR4 SODIMM Memory (max 64GB)
  • 1x M.2 2280 Type M key, 1x M.2 2230 Type E Key
  • Supports Windows & Linux

Specifications

Form Factor Mini-ITX MB 3.5 L chassis
Processor Support Intel® 12th Generation Core™ i3/i5/i7/i9, Pentium®, Celeron® LGA1700 CPU max. TDP 65W
Chipset Intel H610 Express chipset
Memory 2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 3200 MHz
Video Output HDMI + Display + D-Sub (VGA) port triple display
Audio Realtek ALC662/ALC897/ALC888S 5.1 channel High Definition Audio
Ethernet 1x Intel GbE Lan / (1)Intel 2.5 GbE Lan 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function Support Teaming function
Storage Interface SATA 6.0Gb/s interface
Onboard Connectors 3x SATA connectors 1x 1x4 pin USB 2.0 header 2x 4pin fan connectors 1x SATA power connector(5V) 1x SATA power connector(12V) 1x Auto power on header 1x RS232 voltage switch 4x RS232 connectors 1x Battery connector
Front Panel 2x USB 2.0 ports 2x USB 3.2 Gen1 ports (Include Type C x 1) 1x Microphone-In 1x Earphone-Out 1x Power-On button 1x Power LED 1x HDD LED
Back Panel 2x RJ45 Gigabit LAN port w/LED 1x Display port 1x HDMI 1x D-Sub (VGA) port 2x USB 2.0 ports 2x USB 3.2 Gen1 ports 1x RS232 1x RS232/RS422/RS485 1x Line in port 1x Line out port 1x MIC in port 1x Clear CMOS button 1x DC in 1x Kensington lock 2x Wireless Antenna fixture
Drive Bays 1x 2.5" HDD / SSD bay 1x Slim ODD bay. User can install either 1 Slim ODD or (1) 2.5" HDD/SSD
Dimensions 238(L) x 200(W) x 72(H) mm
Power 120W Power Adapter Input:100- 240V AC 19V 6.32A
Accessories XPC Multilanguage Quick User Guide XPC DVD Driver 1x Power cord 1x SATA cable (pre-install for HDD) 1x SATA cable (pre-install for ODD) 1x 4 pin to SATA power cable Screws
Expansion Slot 1x M.2 2280 Type M key socket 1x M.2 2230 Type E Key socket
OS Support Windows 11 64 bit O.S Linux
36 Month Return to Base Warranty
