Shuttle

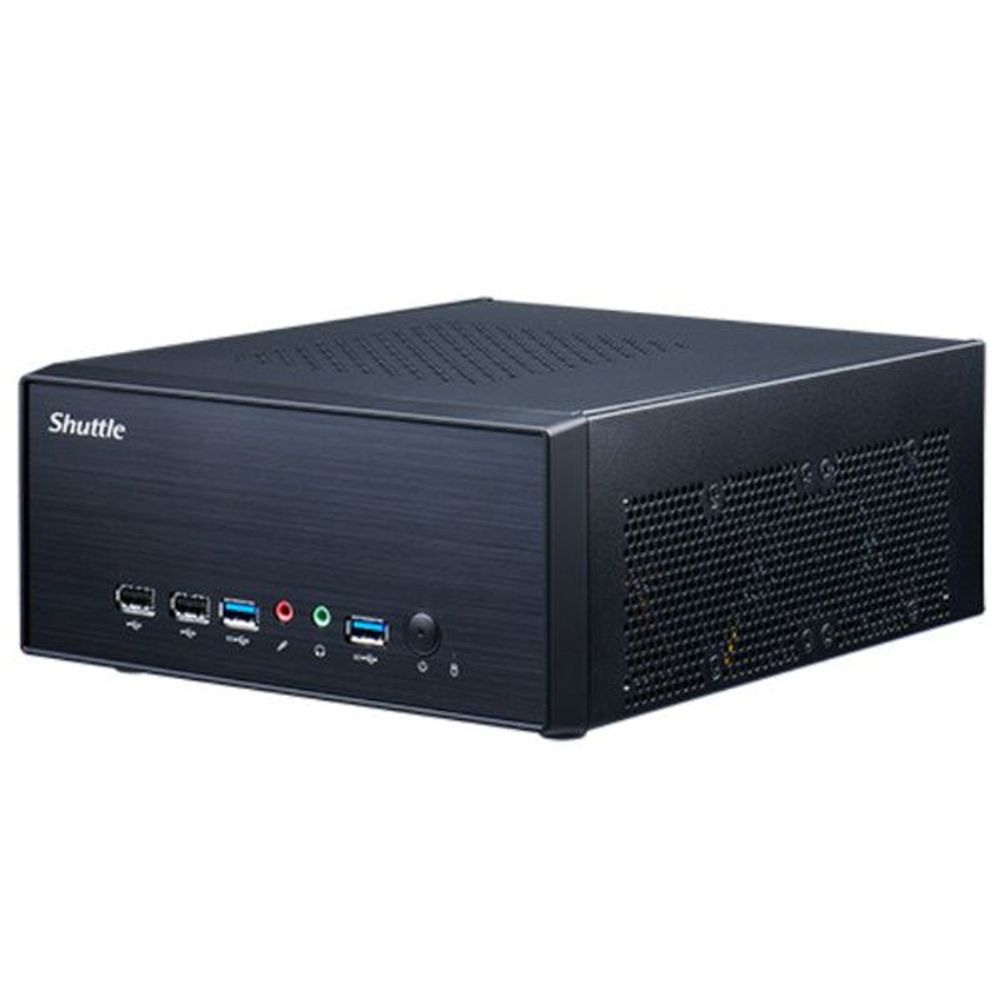

XH510G2 - Shuttle XH510G2 LGA1200 5L Barebones PC

XH510G2 - Shuttle XH510G2 LGA1200 5L Barebones PC

XH510G2

$1,028.00 NZD
$1,028.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Overview Shuttle XPC slim XH510G2 equips with Intel® H510 chipset, which expertly supports Intel® 11th Gen LGA1200 65W Core™ CPU delivers high-performance computing for applications that demand high-speed processing and computer vision. Despite its 5-liter compact chassis, XH510G2 provides a PCI-Ex16 slot to install an extra dual slot graphics card, capture card, or more to meet diverse application requirements. The XH510G2 also offers multiple interfaces to connect peripherals, including 4x USB 3.2 Gen1, 4x USB 2.0, an HDMI 2.0, a DisplayPort 1.4, SATA connectors, M.2 slots, and Intel® Gigabit LAN. These scalabilities provide all the fundamentals to boost daily productivity. It is perfect for the video wall, POS server, surveillance, professional creators, and Kiosk applications.

Features

  • XH510G2
  • LGA1200 Socket for 10th Generation Intel Processors
  • Intel H510 chipset
  • DDR4 SODIMM Memory (max 64GB)
  • 4x USB 2.0, 4x USB 3.2, 1x 3.5mm in, 1x 3.5 out, 1x RJ45, 1x HDMI, 1x Displayport
  • 1x Raiser Card Slot, 1x 4 Pin Fan Connector, 1x Sata Connector

Specifications

Form Factor Shuttle 5L Form factor
Processor Support Intel 10th/11th LGA1200 , Core i3/i5/i7/i9, Pentium, Celeron ,65W processor
Chipset Intel H510 Express chipset
Memory 2 x DDR4 SO-DIMM slots,32GB per DIMM (Max 64GB) DDR4 2666/2933/3200 MHz
Video Output 1x HDMI + 1x DP , support dual display
Audio Realtek ALC662 High Definition Audio
Ethernet Intel i219 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function
Storage Interface SATA 6.0Gb/s interface
Onboard Connectors 1x Raiser card slot 1x 4 Pin Fan connector 1x SATA connector
Front Panel 2x USB 2.0 ports 2x USB 3.2 Gen 1 ports 1x Microphone-In 1x Line-Out 1x Power button 1x Power LED 1x HDD LED
Back Panel 1x RJ45 Gigabit LAN port 1x HDMI 2x USB 2.0 ports 2x USB 3.2 Gen 1 ports 1x Displayport 2x Antenna Hole 1x DC in
Drive Bays 1x 2.5" HDD / SSD bay
Dimensions 250*200*95mm
Power Input:100- 240V AC Output: 19.5V/9.23A 180W Adapter
Accessories XPC Multilanguage Quick User Guide XPC DVD Driver 1* Power cord 1*180W adapter 1*Screw pack 1*VESA bracket 1*VESA screw pack " Optional " WLN-M ,WWN03
Expansion Slot 1x M.2 2280 Type M key socket *Top side ,NVME ,SATA support 1x M.2 2280 Type M key socket *Bottom side ,SATA support 1x M.2 2230 Type A,E Key socket 1x PCI-E X16 1x PCI-E X1
OS Support Windows 10/11 64 bit O.S Linux
Net Weight 2.98 Kg
Certification Safety certification : CB , BSMI , cTUVus EMI certification : FCC , CE , BSMI , RCM , VCCI
36 Month Return to Base Warranty
