Shuttle

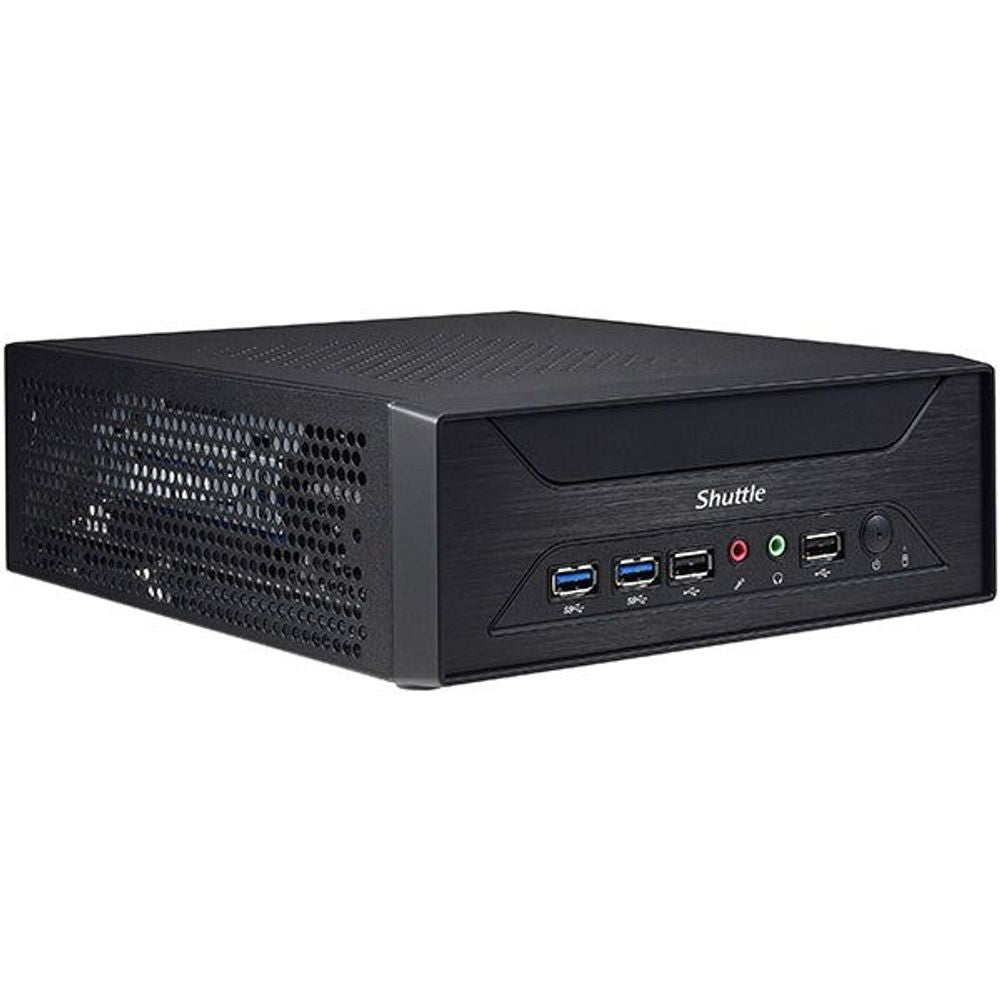

XH410G - Shuttle XH410G LGA1200 3L Barebones PC

XH410G - Shuttle XH410G LGA1200 3L Barebones PC

XH410G

$969.33 NZD
$969.33 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Overview The Shuttle Barebone XPC slim XH410G is a 3-litre PC to house one single-slot PCI-Express expansion cards. Together with an LGA 1200 Intel Core desktop processor of the Comet Lake range, this platform is perfectly suited for many professional applications where performance, flexibility and a compact form factor matter. This includes video wall presentations, graphics workstations, media capturing, surveillance, POS, POI as well as network and industrial applications. Even mid-range gaming is possible.

Features

  • XH410G
  • LGA1200 Socket for 10th Generation Intel Processors
  • 2x DDR4-2666 SO-DIMM Slots
  • 1x 2.5" SATA 9.5mm SSD/HDD Bay
  • 1x M.2 PCIe/SATA Slot up to 2280
  • 1x M.2 2230 AE Slot
  • 2x USB 3.1 Gen 1 (Front), 2x USB 2.0 (Front), 2x USB 2.0 (Rear), 2x USB 3.1 Gen 1 (Rear), 1x VGA, 1x HDMI, 1x DisplayPort, 1x RS232, 1x RS232/422/485
  • 2x Gigabit Ethernet

Specifications

PCIe Expansion Slot The used expansion card must meet the following conditions: - Maximum dimensions: 208 mm x 120 mm x 30 mm (Single Slot) - Maximum power consumption: 75 W

Processor Support Intel Comet Lake-S Core i3/i5/i7, Pentium, Celeron CPU max. TDP 65W
Memory 2x DDR4 SODIMM slots, 32GB per DIMM (Max 64GB) DDR4 2666/2933 MHz
Drive Bays 1x 2.5" HDD / SSD bay
Expansion Slot 1x PCI-Express X16 v3.0 slot with installed 90° Riser Card 1x M.2 2280 Type M key socket 1x M.2 2230 Type E Key socket
Storage Interface SATA 6.0Gb/s interface
Audio Realtek ALC662 5.1 Channel High Definition Audio
Ethernet Intel i219LM network controller Supports 10/100/1000 MBit/s operation Supports WAKE ON LAN (WOL) Supports network boot by Preboot eXecution Environment (PXE)
Onboard Connectors 2-pin onboard ATX connector with 5V (max. 2 A) output voltage with 4-pin Molex adapter cable Power-on-after-power-fail (hardware solution by jumper) RS232 COM port (2x5-pin header, 2 mm pitch) Front connector for power button, LEDs, USBs, audio ports 4-pin fan connectors (occupied by the CPU cooling system) 4-pin USB 2.0 connector (occupied by the internal USB port) 2x 5-pin debug port
Front Panel 1x Microphone input (3.5 mm) 1x Headphones output (3.5 mm, line out) 2x USB 3.2 Gen 1 2x USB 2.0 1x Power button with Power LED (blue) 1x HDD LED (yellow)
Back Panel 1x HDMI 2.0a digital audio/video output, supports screw lock [4] 1x VGA / D-Sub analog video output 2x USB 3.2 Gen 1 2x USB 2.0 1x GigaBit LAN (RJ45, Intel i219LM) 1x DC-input connector for external power adapter (supports 19.5 V) 1x 4-pin connector (2.54 mm pitch) supports: - external power on button - Clear CMOS function - +5V DC voltage for external components 2x perforation for optional Wireless LAN antennas 1x hole for Kensington Lock
Dimensions (mm) 200 (w) x 250 (l) x 79 (h)
Accessories PS01: Vertical stand WLN-M: WLAN module 802.11ac + BT4.0 with two external antennas [6] PCP11: Backpanel COM port adapter for RS232 serial interface CXP01: Adapter cable for external power button
OS Support Windows 10 64 bit O.S Linux
36 Month Return to Base Warranty
