Shuttle

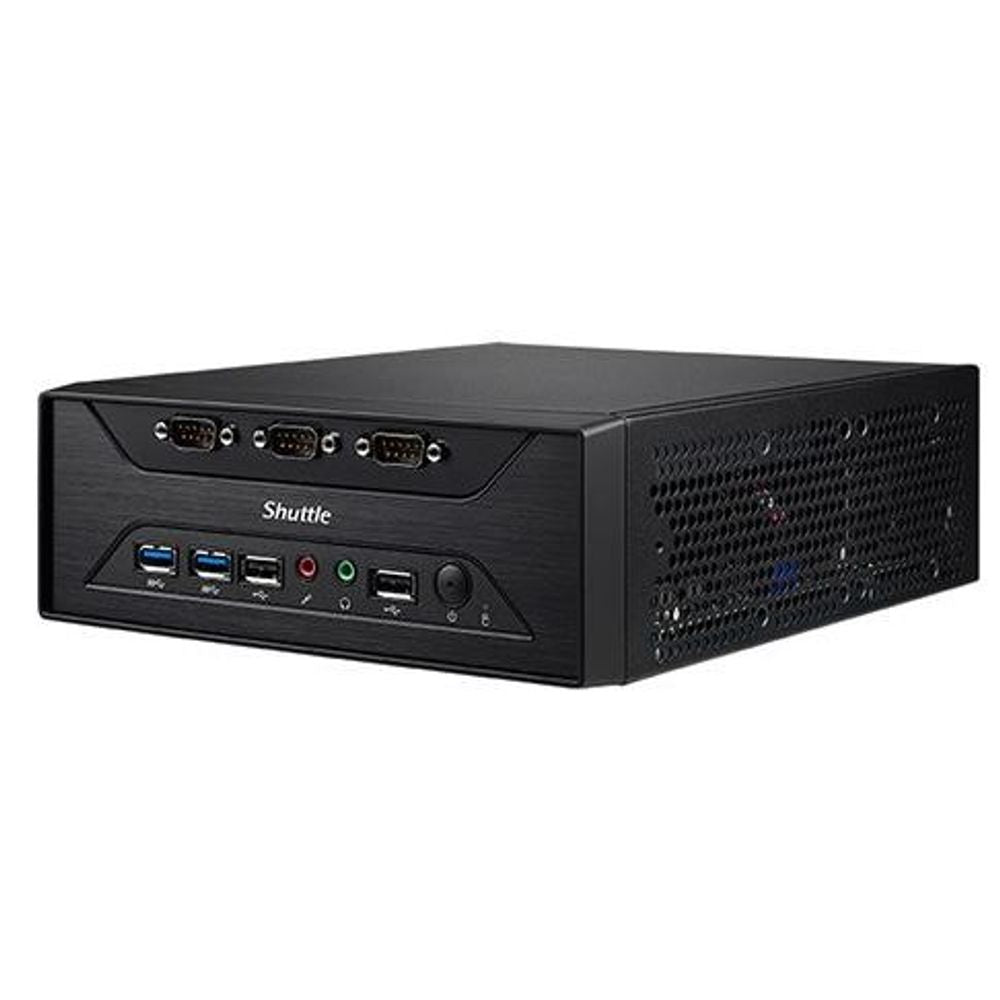

XC60J - Shuttle XC60J 3.5L Fanless Slim Barebones PC

XC60J - Shuttle XC60J 3.5L Fanless Slim Barebones PC

XC60J

$580.00 NZD
$580.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Overview The new 3-litre slim PC XC60J features robust performance with a fanless design, powered by the latest Intel® Apollo Lake SoC 14nm processor. This new model provides excellent peripheral connectivity via built-in eight COM ports to power highly interactive Kiosk, vending machine, and POS applications. With integrated Intel® HD graphics, the XC60J can support 4K/Ultra HD video playback and deliver dual displays via HDMI and D-sub. The XC60J offers two USB 3.0, four USB 2.0, SATA 6Gbps, and built-in Intel® Gigabit LAN.

Features

  • XC60J
  • Intel Celeron J3355 2.0GHz
  • 2x DDR3L-1866 SO-DIMM Slots
  • 1x 3.5"/2.5" SATA SSD/HDD Bay, 1x M.2 PCIE/SATA Slot,
  • 1x 3.5" Bay, 1x M.2 2280 PCIe/SATA Available
  • 2x USB 3.0 (Front), 2x USB 2.0 (Front), 2x USB 2.0 (Rear), 1x HDMI, 1x VGA, 4x RS232, 1x RS232/422/485
  • 1x Gigabit Ethernet

Specifications

Form Factor Mini-ITX Motherboard
Processor Intel Celeron J3355 2.0GHz Dual Core (Up to 2.5GHz, 2MB Cache)
Memory 2x DDR3L SO-DIMM 1866MHz support, dual channel up to 8GB (4GB*2)
Drive Bays 1x 3.5"/2.5" HDD/SSD bay
Expansion Slot 1x M.2 2280 Type M key socket 1x M.2 2230 Type A,E Key socket
Storage Interface SATA 6.0Gb/s interface
Audio Realtek ALC662 2.1 Channel High Definition Audio
Ethernet Intel i211 Gigabit Ethernet Support Wake-On-LAN function
Front Panel 2x USB 2.0 ports 2x USB 3.0 ports 3x RS-232 1x Microphone-In 1x Earphone-Out Power-On button Power LED HDD LED
Back Panel 1x RJ45 Gigabit LAN port 1x VGA 1x HDMI 2x USB 2.0 ports 4x RS232 1x RS232/RS422/RS485 1x Clear CMOS button 1x DC in 2x Wireless Antenna fixture
Dimensions (mm) 200 (w) x 238 (l) x 72 (h)
Accessories 1x XPC Quick Guide 1x XPC DVD Driver 1x Power cord 1x 65W Adapter 1x Screw pack Power cord
OS Support Windows 10 64-bit Linux
36 Month Return to Base Warranty
