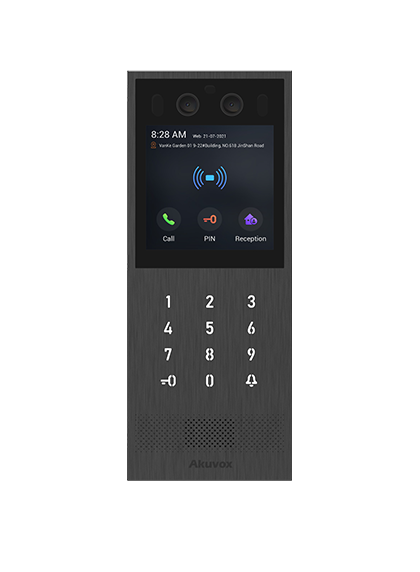

• X912K - Akuvox Vandal-resistant Door Phone for High-end Buildings
1 1

Akuvox

X912S - Akuvox Vandal-resistant Door Phone for High-end Buildings

X912S - Akuvox Vandal-resistant Door Phone for High-end Buildings

X912S

$3,787.50 NZD
$3,787.50 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock

X912

Vandal-resistant Door Phone for High-end Buildings

Offering top-of-the-line features, Akuvox X912 is targeted at high-end residential and commercial projects. With a compact size, it is perfect for buildings with limited installation space.

X912



    • Ordering Info
    • Technical Files
    • Accessories
    Product Image Part No. Description
    X912S Standard version
    X912K Physical Keypad version





    Specs



    X912 Specification

    • Physical & Power

      Front panel: Stainless steel
      Display: 4 Inch, color TFT LCD, touchable
      Camera: 2M pixels
      Numeric keypad
      Gesture detection sensor: Support
      Wiegand port: Support
      RS485 port: Support
      RF card reader: 13.56MHz & 125kHz, NFC
      Relays out: 2
      Inputs: 3
      BLE：Support
      Line out: 1
      Microphone: -42dB
      Speaker: 8Ω / 2W
      Power out: 12V/1A（Max.）
      Ethernet port: RJ45, 10/100Mbps adaptive
      802.3at Power-over-Ethernet
      12V DC connector (if not using PoE+)
      IP & IK rate: IP65 & IK10
      Installation: Wall-mounted
      Dimension: 234x94.5x34mm
      Working Humidity: 10~90%
      Working Temperature: -20°C ~ +60°C
      Storage Temperature: -40°C ~ +70°C

    • Audio

      SIP v1 (RFC2543), SIP v2 (RFC3261)
      Narrowband audio codec: G.711a, G.711μ, G.729
      Broadband audio codec: G.722
      DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
      Echo Cancellation
      Voice Activation Detection
      Comfort Noise Generator

    • Video

      Sensor: 1/2.8”, CMOS for main camera
      Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
      Video codec: H.264
      Video technology: HDR
      Video resolution: up to 1920x1080p
      Max. image transfer rate: 1080p – 30fps
      Viewing angle: 125°(H) / 65°(V)
      Compatible to 3rd-Party-Video components, e.g. NVRs

    • Networking and Protocol

      Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

    • Door Entry Feature

      Relays controlled individually by DTMF tones
      Multi-way Unlock: Face, IC/ID Card, PIN and BLE
      Camera permanently operational
      White balance: auto
      Minimum illumination: 0.1LUX

    • Deployment & Maintenance

      Auto-Provisioning
      Web management portal
      Web-based packet dump
      Configuration backup / restore
      Entry log export
      Access table export / import
      Firmware upgrade
      System logs (include door access logs)

    • Application Scenario

      Provides resident / visitor access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings
