Tycab

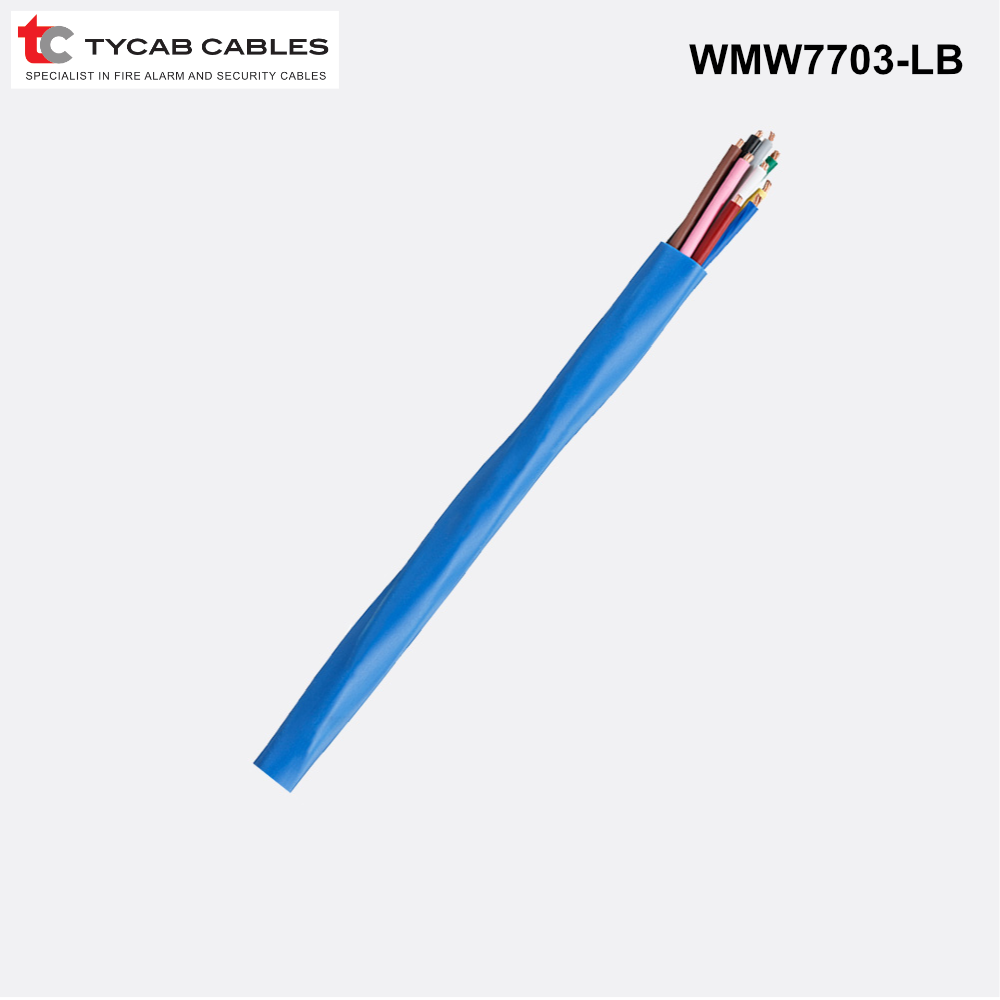

WMW7703 - 7 Core 0.5mm Multicore TYFLO Irrigation cable - Direct Bury

WMW7703 - 7 Core 0.5mm Multicore TYFLO Irrigation cable - Direct Bury

WMW7703-LB-100

$297.00 NZD
$198.00 NZD $297.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Select Option

In stock
Features

Includes

  • 7 Core 0.5mm Multicore
  • UV Stabilised Polypropylene Insulated
  • Applications - Irrigation / Sprinkler Systems
Specs

7 Core 7/.3 (0.5sqmm) P.C.W. UV stabilised polypropylene insulated.
4V75 P.V.C sheathed. TYFLO irrigation cable.
Extra Low Voltage. Not for mains connection.

Construction

Conductor: 7 strands of 0.3 mm Annealed Copper to AS1125 drawn from Class 102 copper to AS1574.
Max. D.C resistance at 20C: 37.0 ohms / km.

Insulation: Coloured Low-Density Polyethylene to AS1049.
Nominal Diameter: 1.6mm.
Nominal Wall Thickness: 0.3mm.

Lay Up: 7 Cores Twisted.
1. Black
2. Red
3. White
4. Blue
5. Green
6. Brown
7. Yellow

Sheath: Coloured P.V.C type 4V75 to AS3808.
Nominal Diameter: 7.1mm.
Nominal Wall Thickness: 0.6mm.
