Advantech

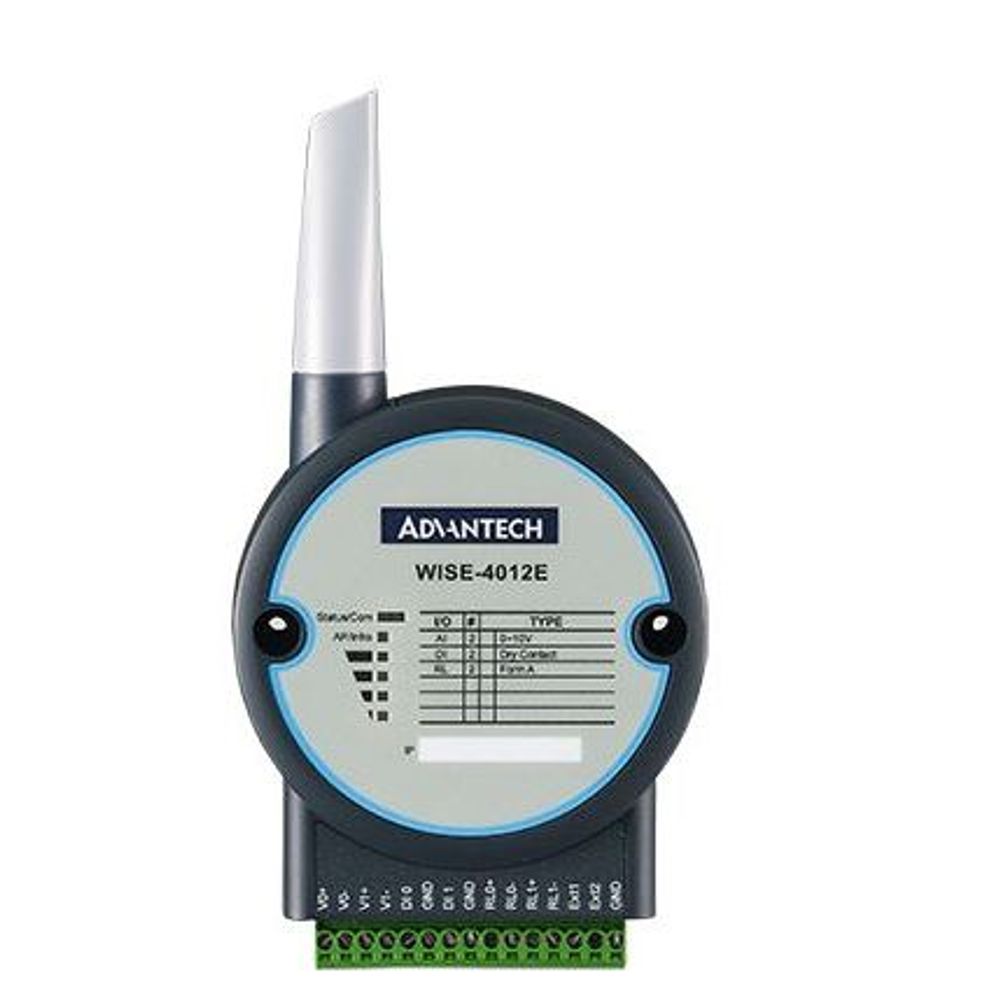

WISE-4012E-AE-WA - Advantech WISE-4012E 6CH IOT Wlan + WebAccess

WISE-4012E-AE-WA - Advantech WISE-4012E 6CH IOT Wlan + WebAccess

WISE-4012E-AE-WA

$434.67 NZD
$434.67 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Overview Introducing Advantech's new generation of remote I/O & sensing devices for IoT applications. With the advanced concepts of wireless sensor notes technology, data A-P-P, data Acquisition, data Processing to data Publishing, WISE fulfils mobile monitoring and controlling needs under an IoT framework. With intelligent processing and publishing features, the time it takes to generate insightful reports can be shortened. Wide input voltage and rugged physical tolerance provide flexible installation options

Features

  • 2.4 GHz IEEE 802.11b/g/n WLAN
  • 2-ch 0~10V Input, 2-ch DI, and 2-ch Relay Output
  • Includes WebAccess with demo project for developer
  • Includes extension board for simulating sensor status
  • Includes micro USB cable for power input
  • Supports Modbus/TCP with RESTful web service
  • Supports wireless client and server mode that can be accessed directly without AP or router
  • Supports mobile device web configuration with HTML5 without the platform limitation
  • Supports file-based cloud storage and local logging with time stamp

Specifications

Analogue Input Accuracy ±0.1 VDC
Channels 2-ch (Differential)
Input Impedance 100 kΩ
Input Range 0~10V
Input Type V
Sampling Rates 10 Hz (Total)
Resolution 12-bit
Digital Input Channels 2-ch Dry Contact
Counter Input 3kHz (32 bit + 1 bit overflow)
Frequency Input 0.1 ~ 3kHz
Inverted DI Status Support
Keep/Discard Counter Value when power off Support
Logic Level Dry Contact: Logic 0: Open, Logic 1: Close to GND
Digital Output Channels 2-ch Relay
Insulation Resistance 1 GΩ min. @ 500 VDC
Isolation 1,500 Vrms
Output Rating (Resistive Load) 120 VAC @ 0.5 A, 30 VDC @ 1A
Pulse Output 60 operations/minute
Relay Off Time (Typ.) 10 ms
Relay On Time (Typ.) 7 ms
General Connectors I/O: Terminal block; Power: Micro USB
Certifications CE, FCC, R&TTE, NCC, SRRC, RoHS
Data Logger Up to 10,000 samples with RTC time stamp
Enclosure PC
LED Indicators Status, Communication, Network Mode, Quality
Mounting DIN 35 rail, wall, and stack
Protocol Modbus/TCP, TCP/IP, UDP, HTTP, DHCP
Real-time Clock Yes
Watchdog Timer System (1.6 second) & Communication (programmable)
Web Server RESTful Web API in JSON format, HTML5 Configuration Interface with JavaScript & CSS3
Power Input Range Micro USB 5 VDC
Power Consumption 1.5 W @ 5 VDC
Wireless Interface Antenna Connector Reverse SMA
Frequency Band 2.4GHz
IEEE Standard IEEE 802.11b/g/n
Network Mode Infrastructure, Limited AP
Outdoor Range 110m (L.O.S.)
Security WPA2 Personal & Enterprise
Environment Operating Humidity 20 ~ 95% RH (non-condensing)
Operating Temperature -25 ~ 70°C (-13~158°F)
Storage Humidity 0 ~ 95% RH (non-condensing)
Storage Temperature -40 ~ 85°C (-40~185°F)
Physical Dimensions (mm) 80 (w) x 25 (d) x 148 (h)
12 Month Return to Base Warranty
