Veracity 8+2 Port CAMSWITCH Mobile Low-Voltage 802.3at PoE Switch

Veracity 8+2 Port CAMSWITCH Mobile Low-Voltage 802.3at PoE Switch

VCS-8P2-MOB

$1,012.00 NZD
$1,012.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock

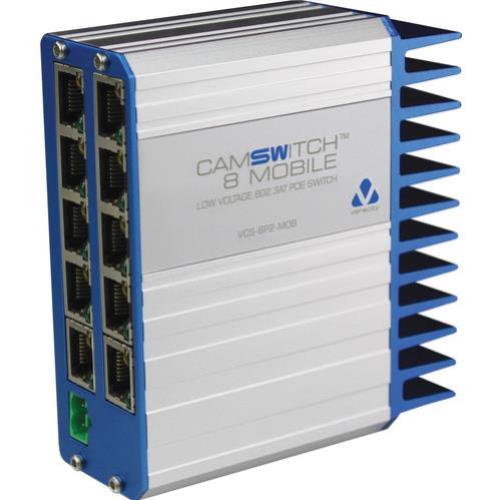

Veracity 8+2 Port CAMSWITCH Mobile Low-Voltage 802.3at PoE Switch
Veracity 8+2 Port CAMSWITCH Mobile Low-Voltage 802.3at PoE Switch. Veracity CAMSWITCH Mobile VCS-8P2-MOB is the ideal solution for installing IP cameras and other POE and network devices in transport, battery/solar powered, and other low-voltage applications. It integrates a 5 or 10 port 10/100 Ethernet switch with the capability to convert a 8 to 40 volt DC supply into an 80 watt IEEE 802.3af/at compliant power source. CAMSWITCH 8 Mobile features 8 802.3at POE ports, 2 non-POE ports, and a versatile DC power input.
Features
  • 12 and 24 volt bus, train and car power supplies can all be converted to POE power
  • CAMSWITCH Mobile is ideal for solar powered wireless systems and temporary installations
Details
Manufacturer's Product Code VCS-8P2-MOB
DC Input Voltage 8.5 - 40V (minimum startup voltage is 10.5V, supports engine cranking and reduce over discharge), The use of an external fuse is recommended. Rating: 5 amps for 24V DC or 10 amps for 12V DC supply, slow blow type.
Output Voltage IEEE 8023.af / IEEE 802.3at compliant (Power budget limited by power source specified - See Datasheet)
POE standard IEEE 8023.af/at
Interfaces (5) Ethernet Ports
Network Speed 10/100Mbps
Dimensions L 110mm / 131mm with side clips W 100mm including connectors H 40mm
Details
Mounting Brackets Included
View full details
