Veracity

Veracity 4 Plus 1 Port CAMSWITCH Mo

Veracity 4 Plus 1 Port CAMSWITCH Mo

VCS-4P1-MOB

$619.00 NZD
$619.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock

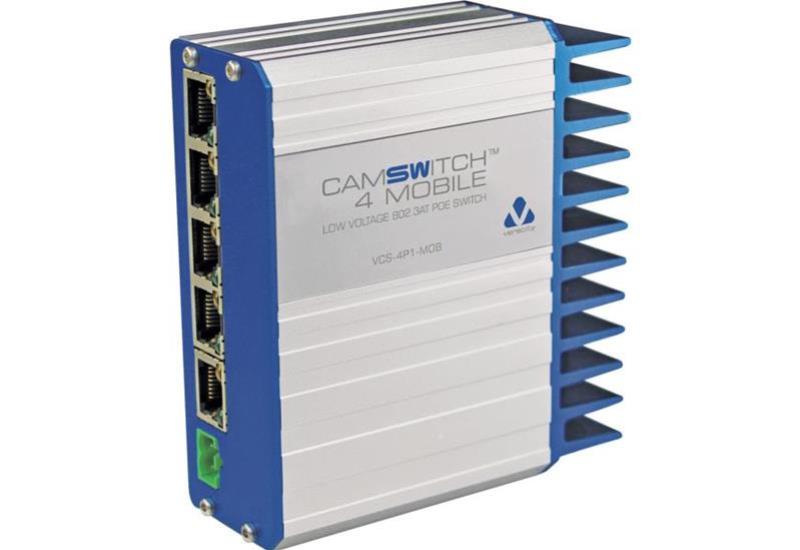

Veracity 4 Plus 1 Port CAMSWITCH Mobile Low-Voltage 802.3at PoE Switch
CAMSWITCH Mobile VCS-4P1-MOB is the ideal solution for installing IP cameras and other POE and network devices in transport, battery/solar powered, and other low-voltage applications. It integrates a 5 or 10 port 10/100 Ethernet switch with the capability to convert a 8 to 40 volt DC supply into an 80 watt IEEE 802.3af/at compliant power source.
Features
  • CAMSWITCH 4 Mobile features 4 802.3at POE ports, 1 non-POE port, and a versatile DC power input
Details
Manufacturer's Product Code VCS-4P1-MOB
DC Input Voltage 8.5 - 40V (minimum startup voltage is 10.5V, supports engine cranking and reduce overdischarge) DC only (contact Veracity for 24V AC applications)
Output Voltage IEEE 8023.af / IEEE 802.3at compliant (Power budget limited by power source specified - See Datasheet)
POE standard IEEE 8023.af/at
Interfaces (5) Ethernet Ports
Network Speed 10/100Mbps
Dimensions L 110mm / 131mm with side clips W 100mm including connectors H 40mm
Details
Warranty Standard 12 Month RTB
