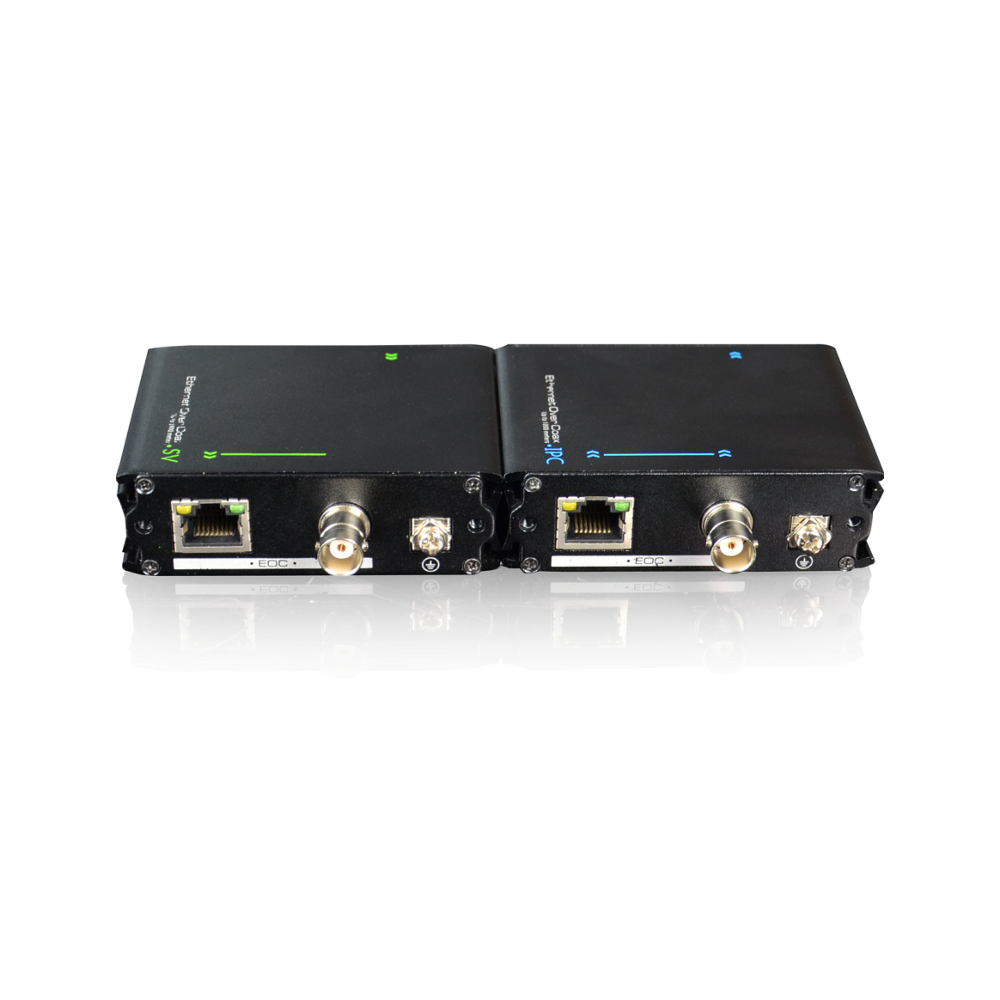

Utepo UTP7301EPOC IP PoE over Coax / 2-Wire Converter / Extender – Supplied as a

Utepo UTP7301EPOC IP PoE over Coax / 2-Wire Converter / Extender – Supplied as a pair (1 x SV base unit + 1 x IPC end unit) – Supports Up To 400m Distance on Coax & Up To 500m Distance on Ethernet or 2-wire – PoE Powered or 54VDC Powered

Utepo UTP7301EPOC IP PoE over Coax / 2-Wire Converter / Extender – Supplied as a pair (1 x SV base unit + 1 x IPC end unit) – Supports Up To 400m Distance on Coax & Up To 500m Distance on Ethernet or 2-wire – PoE Powered or 54VDC Powered

Features :-

• Supplied as a pair: 1 x SV-Unit and 1 x IPC-Unit
• SV-Unit has 48-57V DC port, one PoE input port and two output ports: BNC and RJ45
• IPC-Unit has two input ports: BNC and RJ45, one PoE output port
• Adopt advanced transmission and power supply technology, can transmit Ethernet signal and power signal up to 500m through coaxial cable and transmit Ethernet signal and power signal up to 400m through network cable
• Ethernet delay less than 1ms
• Standard: IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3af/at
• Protection: excellent circuit isolation protection, superior product anti-thunder, anti-static and anti-interference ability
• Appearance: solid and delicate, meet MIT rack installation standard, working temperature: 0??55°C
• Installation: Plug-and-play, no setting required
• Dimensions: 63.2mm * 82mm * 25mm
• Casing: Aluminium
• Weight: IPC unit – 153g; SV unit – 154g
