Milesight IoT

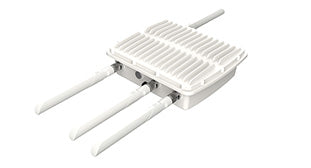

Ursalink Outdoor EU868 LoRaWAN Base Station with WiFi, GPS and PoE Support

Ursalink Outdoor EU868 LoRaWAN Base Station with WiFi, GPS and PoE Support

UG87-W-G-P-868

$275.00 NZD
$275.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ursalink Outdoor LoRaWAN Base Station for EU868 with WiFi, GPS and PoE (8 Channel)
Ursalink Outdoor LoRaWAN Base Station for EU868 with WiFi, GPS and PoE (8 Channel). The Ursalink UG87 is an industrial outdoor LoRaWAN gateway with embedded intelligent software features designed for multifarious M2M/IoT applications. Options like cellular network or Wi-Fi provide drop-in connectivity for operators and make a giant leap in maximizing uptime. Adopting high-performance industrial platform of 64-bit CPU and wireless module, the UG87 enables you to scale up M2M application combining data within limited time and budget. The UG87 is particularly ideal for smart city, smart agriculture, building automation, digital factory, environment protection, water conservancy and so on.

The Ursalink UG87-Outdoor industrial LoRaWAN gateway has an IP67 enclosure and is designed for wide area smart city applications and can work perfectly with The Things Network. Check out how to connect UG87 to The Things Network

Click here for more information about the Complete Outdoor LoRaWAN Base Station range from Ursalink.



. .

Features
  • Compliance to LoRaWAN Class A and Class C
  • IEEE 802.11b/g/n/ac Wi-Fi built in
  • Built in DI/DO Serial Port and GPS
  • 8 or 16 Simultaneous channels optional
  • Backhaul Connectivity (Eth/3G/4G/WIFI) Optional
  • IP67 Waterproof Casing
  • Long Range over 10 km Radius
  • Free Embedded Network Server
  • Embedded Network Server and MQTT transmission
  • Ursalink Cloud compliant
  • support GPS for high-precision time synchronization
  • supports a maximum of 2000 end-devices
  • Easily onboard and monitor 100’s of LoRaWAN Gateways with the Scopious onboarding tool
Details
Manufacturer's Code UG87-W-G-P-EU868
CPU 800 MHz, 64-bit ARM Cortex-A53
Memory 512 MB DDR3 RAM
Flash 8 GB eMMC
Storage 1 × M.2 slot supports SATA M.2 SSD
LoRaWAN Connector 1 × 50 ? N-Type (Center PIN: Female) for 8-channel model, 2 × 50 ? N-Type (Center PIN: Female) for 16-channel model
Channel 8
Frequency Band EU868
Sensitivity -140dBm Sensitivity @292bps
Output Power 27dBm Max
Protocol V1.0 Class A/Class C and V1.0.2 Class A/Class C
Ethernet Interface 1 × RJ45 (PoE PD), 10/100/1000 Base-T (IEEE 802.3), Data Rate 10/100/1000 Mbps (Auto-Sensing), Interface Auto MDI/MDIX, Mode Full or Half Duplex (Auto-Sensing)
Wi-Fi Connectors 1 × 50 ? N-Type (Center PIN: Female)
Standards IEEE 802.11 b/g/n/ac
Tx Power 802.11b: 16 dBm +/-1.5 dBm (11 Mbps), 802.11g: 15 dBm +/-1.5 dBm (54 Mbps), 802.11n@2.4 GHz: 14 dBm +/-1.5 dBm (MCS7), 802.11n@5 GHz: 11 dBm +/-2 dBm (MCS7), 802.11ac@5 GHz: 10 dBm +/-2 dBm (MCS9)
GPS Connectors 1 × 50 ? N-Type (Center PIN: Female)
Network Protocols PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Access Authentication CHAP/PAP/MS-CHAP/MS-CHAPV2
Firewall ACL/DMZ/Port Mapping/MAC Binding/URL Filter
Management Web, CLI, SMS, On-demand dial up, DeviceHub
Reliability WAN Failover, Dual SIM Backup
Power Supply 1 × 802.3 af/at PoE input
Power Consumption Typical 4.9 W, Max 6.5W (8 channels), Typical 6 W, Max 8.2W (16 channels)
Ingress Protection IP67
Dimensions 256 x 226 x 90.5 mm
Mounting Wall or Pole Mounting
Reset Button 1 × RST
LED Indicators 1 × PWR, 1 × SYS, 1 × LoRa, 1 × Cellular
Built-in Watchdog, RTC, Timer
Certification CE, FCC
Operating Temperature -40 degC to +70 degC, Reduced Cellular Performance Above 60°C
Storage Temperature -40 degC to +85 degC
Ethernet Isolation 1.5 kV RMS
Relative Humidity 0% to 95% (non-condensing) at 25 degC
Details
Included 1 × LoRa Antenna, 1 × GPS Antenna, 1 × WiFi Antenna, 1 × Wall Mounting Kit, 2 × Pole Mounting Kit, Screws, 1 × Ethernet Cable(Optional), 1 × PoE Injector
