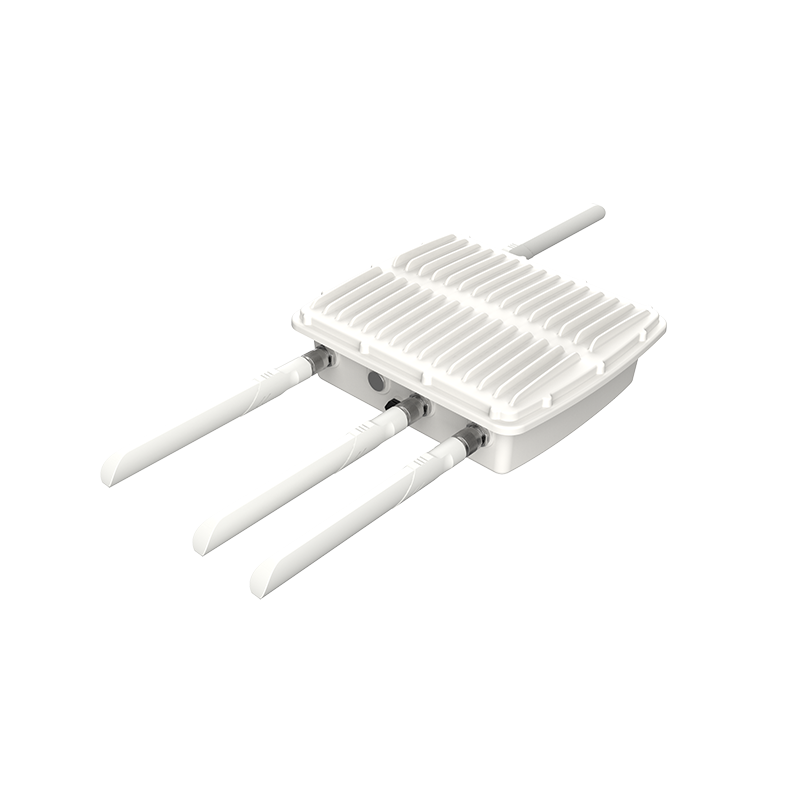

Ursalink Outdoor EU868 LoRaWAN Base Station with GPS and PoE Support

Ursalink Outdoor LoRaWAN Base Station for EU868 with GPS and PoE support Ursalink Outdoor EU868 LoRaWAN Base Station with GPS and PoE support. The Ursalink UG87 is an industrial outdoor LoRaWAN gateway with embedded intelligent software features designed for multifarious M2M/IoT applications.. Adopting high-performance industrial platform of 64-bit CPU and wireless module, the UG87 enables you to scale up M2M application combining data within limited time and budget. The UG87 is particularly ideal for smart city, smart agriculture, building automation, digital factory, environment protection, water conservancy and so on. The Ursalink UG87-Outdoor industrial LoRaWAN gateway has an IP67 enclosure and is designed for wide area smart city applications and can work perfectly with The Things Network. Check out how to connect UG87 to The Things Network Click here for more information about the Complete Outdoor LoRaWAN Base Station range from Ursalink... Features Compliance to LoRaWAN Class A and Class C Built in DI/DO Serial Port and GPS 8 or 16 Simultaneous channels optional Backhaul Connectivity (Eth/3G/4G/WIFI) Optional IP67 Waterproof Casing Long Range over 10 km Radius Free Embedded Network Server Embedded Network Server and MQTT transmission Ursalink Cloud compliant support GPS for high-precision time synchronization supports a maximum of 2000 end-devices Details Manufacturer's Code UG87-G-P-EU868 CPU 800 MHz, 64-bit ARM Cortex-A53 Memory 512 MB DDR3 RAM Flash 8 GB eMMC Storage 1 × M.2 slot supports SATA M.2 SSD LoRaWAN Connector 1 × 50 ? N-Type (Center PIN: Female) for 16-channel model Channel 8 Frequency Band EU868 Sensitivity - Output Power 27dBm Max Protocol V1.0 Class A/Class C and V1.0.2 Class A/Class C Ethernet Interface 1 × RJ45 (PoE PD), 10/100/1000 Base-T (IEEE 802.3), Data Rate 10/100/1000 Mbps (Auto-Sensing), Interface Auto MDI/MDIX, Mode Full or Half Duplex (Auto-Sensing) GPS Connectors 1 × 50 ? N-Type (Center PIN: Female) Network Protocols PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. VPN Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN Access Authentication CHAP/PAP/MS-CHAP/MS-CHAPV2 Firewall ACL/DMZ/Port Mapping/MAC Binding/URL Filter Management Web, CLI, SMS, On-demand dial up, DeviceHub Reliability WAN Failover, Dual SIM Backup Power Supply 1 × 802.3 af/at PoE input Power Consumption Typical 4.9 W, Max 6.5W (8 channels), Typical 6 W, Max 8.2W (16 channels) Ingress Protection IP67 Dimensions 256 x 226 x 90.5 mm Mounting Wall or Pole Mounting Reset Button 1 × RST LED Indicators 1 × PWR, 1 × SYS, 1 × LoRa, 1 × Cellular Built-in Watchdog, RTC, Timer Certification CE, FCC Operating Temperature - Storage Temperature - Ethernet Isolation 1.5 kV RMS Relative Humidity 0% to 95% (non-condensing) at 25 degC Manufacturer Website Firmware & Downloads Datasheets and User Guides Blog Wiki Knowledge Base Case Studies IoT Academy Details Included 1 × LoRa Antenna, 1 × GPS Antenna, 1 × Wall Mounting Kit, 2 × Pole Mounting Kit, Screws, 1 × Ethernet Cable(Optional), 1 × PoE Injector

Key features

• 140dBm Sensitivity @292bps
• 40 degC to +70 degC, Reduced Cellular Performance Above 60°C
• 40 degC to +85 degC
• N-Type (Center PIN: Female) for 8-channel model, 2 × 50 ?
• Options like cellular network or Wi-Fi provide drop-in connectivity for operators and make a giant leap in maximizing uptime
