Milesight IoT

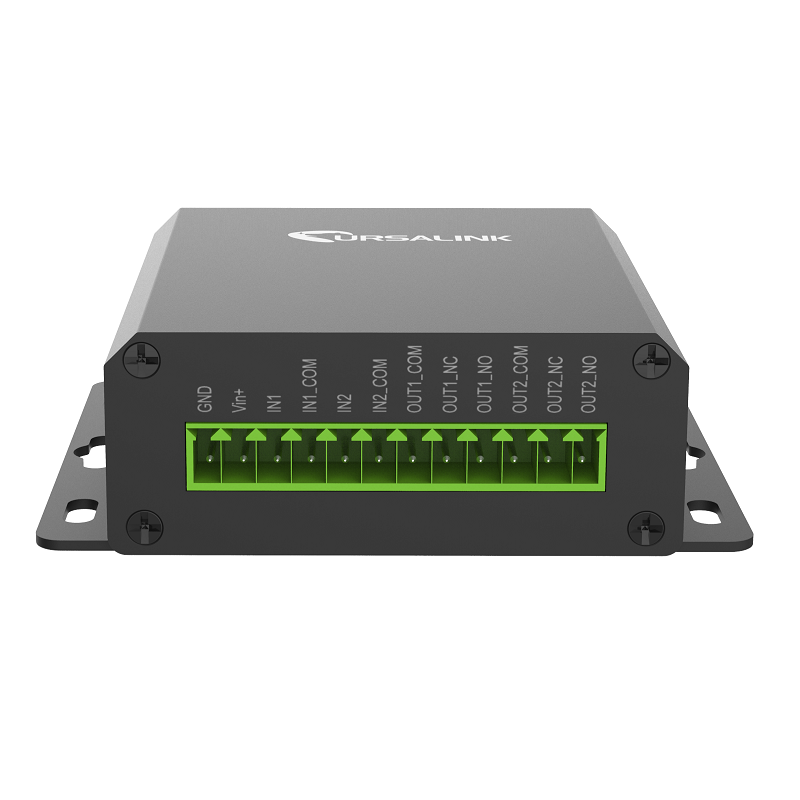

Ursalink LoRaWAN EU868 Remote Client with Digital Input and Relay Output

Ursalink LoRaWAN EU868 Remote Client with Digital Input and Relay Output

UC1114-868

$35.00 NZD
$35.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ursalink LoRaWAN EU868 Remote IoT Client with Digital Input and Relay Output
Ursalink LoRaWAN EU868 Remote IoT Client with Digital Input and Relay Output. Ursalink UC1114 is designed as a cost-effective industrial machine monitoring device that monitors and controls up to 2 dry contacts and 2 drivable relay outputs. With the aid of Ursalink UC1114, the alarm condition brings attention to engineering personnel immediately. The output can be connected with an alarm indication device, such as a light or horn. The device can give immediate response to the status of both the input and output conditions. A LoRaWAN module is embedded in the Ursalink UC1114.

Ursalink is a professional IoT company that leverages the top trending technologies to simplify the process of data collection, storage and retrieval in order to accomplish the goal: connecting "things" to the Cloud.



. .

Features
  • Easy operation anywhere and anytime
  • 2 digital inputs, connected with up to 2 dry contact devices
  • 2 relay drivable outputs
  • Reliable performance with built-in watchdog
  • Customizable conditions, programmable actions
  • Send uplink alert messages according to user-defined conditions
  • Automatic switching of field devices at set times
  • Send and receive messages via LoRaWAN technology
  • Comply with the LoRaWAN Class C protocol
  • support star network and mesh network
  • High Rx sensitivity and adjustable Tx power
  • Up to 10km communication distance with omni-directional antenna
Details
Manufacturer's Code UC1114-EU868
Antenna 50 ? SMA Antenna Interface
Frequency Band EU868
Sensitivity -147 dBm @300bps
Output Power 20dBm
Protocol LoRaWAN Class C
Digital Input Opto-isolated depending on voltage, Can accept any DC signals of any type, including: DC Voltage (3-24 V)
Digital Output 2 x SPDT Relay Contact Rating: 3Amp DC (Max: 30 V) or 3Amp AC (Max: 250 V)
IO Connector type Screw Terminals
DC Power Supply 5-24 VDC
Operating Temperature -40degC to +70degC
Relative Humidity 0% to 95% (non- condensing)
Dimensions 79 x 60 x 24 mm
Details
Included Terminal Block,
