Ursalink LoRaWAN EU868 Remote Client with Digital/Analog Input and Relay Output

Ursalink LoRaWAN EU868 Remote Client with Digital/Analog Input and Relay Output

UC1122-868

$55.00 NZD
$55.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock

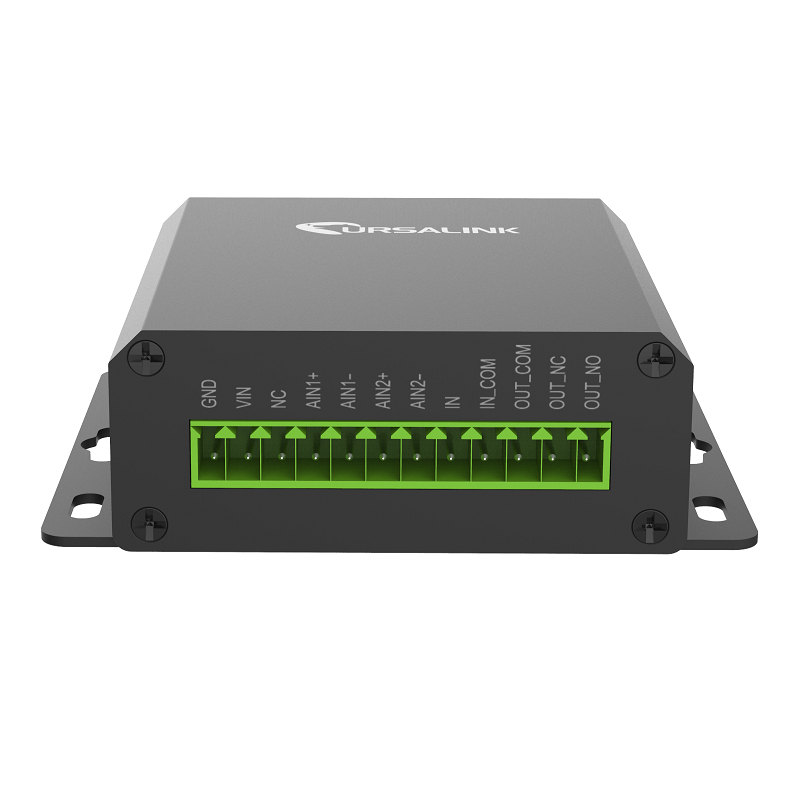

Ursalink LoRaWAN EU868 Remote IoT Client with Digital/Analog Input and Relay Output
Ursalink LoRaWAN EU868 Remote IoT Client with Digital/Analog Input and Relay Output. Ursalink UC1122 is designed as a cost-effective industrial machine monitoring device that monitors and controls up to 1 DC signal, 1 drivable relay output and 2 analog inputs. With the aid of Ursalink UC1122, the alarm condition brings attention to engineering personnel immediately. The output can be connected to an alarm indication device, such as a light or horn. The module can give immediate response to the status of both the input and output conditions. A LoRa module is embedded in the Ursalink UC1122 .

Ursalink is a professional IoT company that leverages the top trending technologies to simplify the process of data collection, storage and retrieval in order to accomplish the goal: connecting "things" to the Cloud



. .

Features
  • Easy operation anywhere and anytime
  • 1 relay drivable output and 1 digital input connected with 1 DC signal
  • 2 analog inputs for data acquisition
  • support for 4–20 mA analog devices
  • Analog to digital conversion
  • Customizable conditions & programmable actions
  • Send uplink alert messages according to user-defined conditions
  • Automatic switching of field devices at set times
  • Comply with the LoRaWAN Class C protocol
  • support star network and mesh network
  • High Rx sensitivity and adjustable Tx power
  • Up to 10km communication distance with omni-directional antenna
Details
Manufacturer's Code UC1122-EU868
Antenna 50 ? SMA Antenna Interface
Frequency Band EU868
Sensitivity -147 dBm @300bps
Output Power 20dBm
Protocol LoRaWAN Class C
Analog Input 4-20 mA (0-5 V Optional), Differential inputs, 12 bit
Digital Input Opto-isolated depending on voltage, Can accept any DC signals of any type, including: Dry Contacts, DC Voltage (3 - 20V), High Voltage: +3V ~ +24V Low Voltage: +1V max
Digital Output 1 x SPDT Relay Contact Rating: Maximum Load Current: 250VAC/30VDC@3A
IO Connector type Screw Terminals
DC Power Supply 5-24 VDC
OperatingTemperature -40degC to +70degC
Relative Humidity 0% to 95% (non- condensing)
Dimensions 79 x 60 x 24 mm
Details
Included Terminal Block
