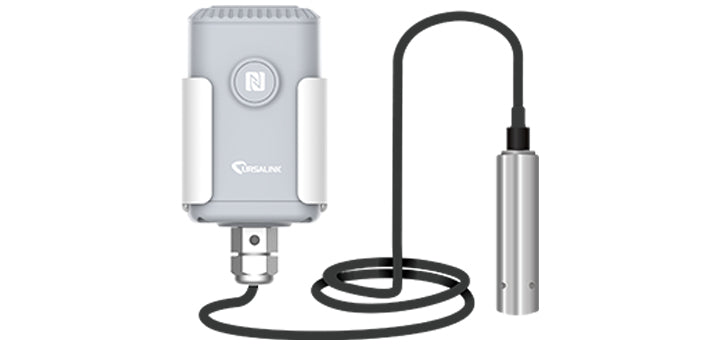

Ursalink LoRaWAN EU868 Outdoor Pipe Pressure IoT Sensor

Ursalink LoRaWAN EU868 Outdoor Pipe Pressure IoT Sensor

EM500-PP-868

$65.00 NZD
$65.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ursalink LoRaWAN EU868 Outdoor Pipe Pressure IoT Sensor
The EM500-PP pipe pressure IoT sensor is a long range wireless sensor compatible with standard LoRaWAN protocol. Combined with advanced LoRa technology and 19000mAh battery make it a low-power consumption product with years-long use life. It is designed to measure the pressure of water/oil/gas from a 1/4” pipe connection and it is the fundamental component of a leak detection system.

The EM500-PP-868 is an Outdoor IP66 rated Pipe pressure sensor, used for pressure monitoring in pipelines and tanks.
Great for many applications including smart city, Smart farming / Agriculture.



. .

Features
  • Robust IP66 rated enclosure
  • Configuration via NFC
  • LoRaWAN
  • Ursalink Cloud compliant
  • Low power consumption
Details
Manufacturer's Code EM500-PP-868
Frequency RU864/IN865/EU868
Tx Power 20dBm
Sensitivity -147dBm @300bps
Mode OTAA/ABP Class A
Antenna Integrated Ceramic Antenna
Pressure Type Gauge Pressure
Range 0~1600kPa (16Bar)
Accuracy ±0.3%FS
Resolution 1kPa (0.01Bar)
Overload 150%FS
Process Connection 1/4” Male
Operating Temperature -30°C to +70°C
Dimension 105.4 × 71× 69.5 mm (Waterproof connector and sensor not included)
Power Input 19000 mAh Li-SOCL2 battery
Mounting Pole, DIN rail, wall
IP Rating IP66 (can be upgraded to IP67), Sensor-IP65
Configuration Mobile APP or PC software via NFC or USB Type-C
Details
Contents Pipe Pressure sensor, DIN/Pole/Wall Mounting kit included
