Milesight IoT

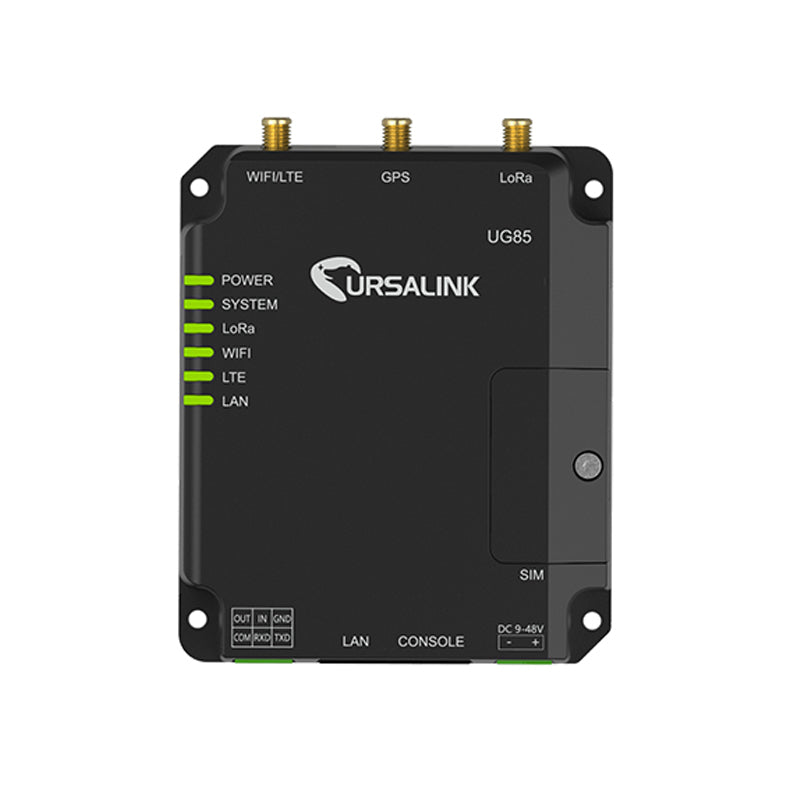

Ursalink Indoor EU868 LoRaWAN Base Station

Ursalink Indoor EU868 LoRaWAN Base Station

UG85-868

$475.00 NZD
$475.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
Ursalink Indoor LoRaWAN Base Station for EU868
Ursalink Indoor EU868 LoRaWAN Base Station, DC Powered. The Ursalink UG85 is an intelligent, performant and configurable indoor LoRaWAN gateway for smart IoT applications. The UG85 is based on the Semtech SX1301 chipset, allowing to operate on multiple channels at the same time. It also offers Ethernet interface for backhaul connectivity as well as cellular or WiFi network for option. With its embedded Network Server (NS), it is very suitable for small business or private area use cases, also perfect for providing network coverage for indoor blind spots.



. .

Features
  • supports 2000 end-devices
  • Integrated with multiple network server (NS)
  • Up to 8 simultaneous channels
  • Compliance to LoRaWAN Class A and Class C
  • CE/FCC Certified
  • Up to 11 km radio range in open area
  • Offer digital input/output and serial interface
  • Easily onboard and monitor 100’s of LoRaWAN Gateways with the Scopious onboarding tool
Details
Manufacturer's Code UG85-EU868
CPU 800 MHz, 64-bit ARM Cortex-A53
Memory 512 MB DDR3 RAM
Flash 8 GB eMMC
LoRaWAN Connector 1 × 50 ? SMA (Center PIN: SMA Female)
Channel 8
Frequency Band supports EU868 Band
Sensitivity -140dBm Sensitivity @292bps
Output Power 27dBm Max
Protocol V1.0 Class A/Class C and V1.0.2 Class A/Class C
Ethernet Interface 1 × RJ-45 (PoE PD Optional), 10/100/1000 Base-T (IEEE 802.3), Data Rate 10/100/1000 Mbps (Auto-Sensing), Auto MDI/MDIX, Full or Half Duplex (Auto-Sensing)
Serial Interface 1 × RS232, Terminal Block, Band Rate 300 bps to 230400 bps
IO Connector Terminal Block, Digital 1 × DI + 1 × DO
Console Interface Connector 1 × RJ45
Network Protocols PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Access Authentication CHAP/PAP/MS-CHAP/MS-CHAPV2
Firewall ACL/DMZ/Port Mapping/MAC Binding/URL Filter
Management Web, CLI, SMS, On-demand dial up, DeviceHub
Reliability WAN Failover, Dual SIM Backup
Serial Port Transparent (TCP Client/Server, UDP), Modbus Gateway (Modbus TCP to Modbus RTU), Modbus Master
Power Input 2-pin with 5.08 mm terminal block (Optional: 1 × 802.3 af/at PoE PD)
Input Voltage 9-48 VDC
Power Consumption Typical 2.3 W, Max 6.5 W
Ingress Protection IP30
Dimensions 108 x 90 x 26 mm
Mounting Desktop, Wall or DIN Rail Mounting
Reset Button 1 × RESET
LED Indicators 1 × POWER, 1 × SYSTEM, 1 × LoRa, 1 × LAN
Built-in Watchdog, RTC, Timer
Operating Temperature -40degC to +70degC Reduced Cellular Performance Above 60°C
Storage Temperature -40degC to +85degC
Ethernet Isolation 1.5 kV RMS
Relative Humidity 0% to 95% (non-condensing) at 25degC
Details
Included 1 × Ethernet Cable, 1 × Power Adapter, 1 × Stubby LoRa Antenna, 1 × 6-Pin Pluggable Terminal, 1 × DIN Rail Kit, 4 × Setscrews
