Milesight IoT

Ursalink DC powered LoRaWAN EU868 Client with GPIO, RS232/RS485 switchable, 3.3V output, 5/9/12 V output and input 4-20mA or 0-10V Switchable

Ursalink DC powered LoRaWAN EU868 Client with GPIO, RS232/RS485 switchable, 3.3V output, 5/9/12 V output and input 4-20mA or 0-10V Switchable

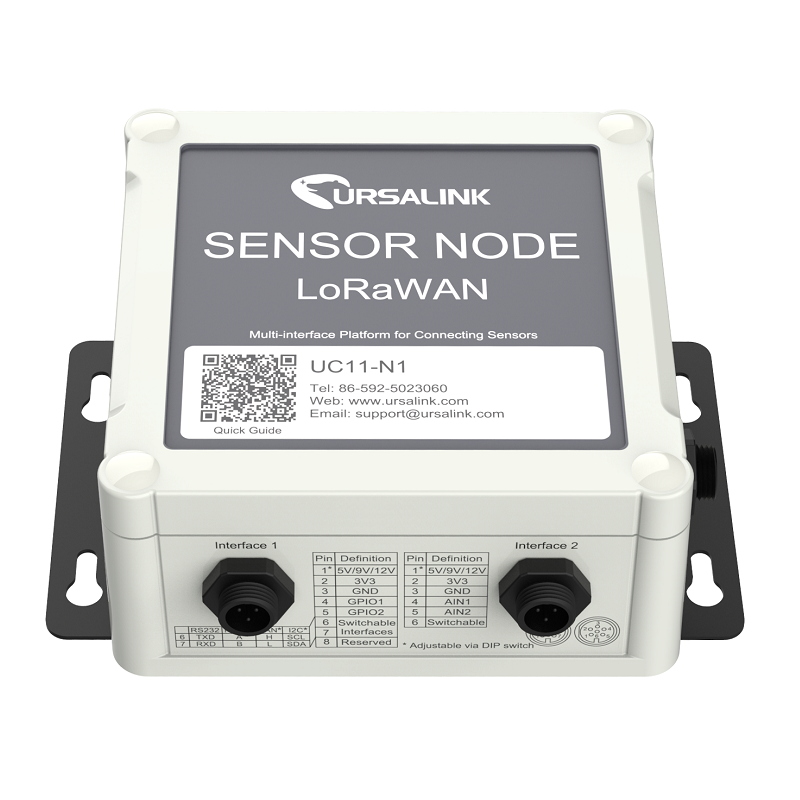

UC11-N1-DC-868

$75.00 NZD
$75.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ursalink DC powered LoRaWAN EU868 IoT Client with GPIO, RS232/RS485 switchable, 3.3V output, 5/9/12 V output and input 4-20mA or 0-10V switchable
Ursalink DC powered LoRaWAN EU868 IoT Client with GPIO, RS232/RS485 switchable, 3.3V output, 5/9/12 V output and input 4-20mA or 0-10V switchable . The UC11-N1-DC is a fully integrated, battery backup, DC powered LoRaWAN node with multiple communication interfaces for connecting to a wide range of external sensors. The DC input model can be powered by 5-24 VDC with 5000mhA battery backup or solar powered with 5000mhA battery.



. .

Features
  • IP67 waterproof for harsh environments
  • Multiple interfaces including serial and I/O
  • Up to 11km communicate range
  • Standard LoRaWAN v1.0/v1.0.2 protocol support
  • Ursalink Cloud compliant
  • Multiple power supply option: battery, DC or solar
  • 5 years life under LoRaWAN Class A mode
Details
Manufacturer's Code UC11-N1-DC-EU868
Frequency EU868
Tx Power 20dBm
Sensitivity -147dBm @300bps
Mode OTAA/ABP
Interface 1 2 × GPIO, 1 × RS232/RS485 (switchable), 1 × 3.3 V output, 1 × 5/9/12 V output switchable
Interface 2 2 × Analog input (4-20mA or 0-10V switchable), 1 × 3.3 V output, 1 × 5/9/12 V output switchable
Operating Temperature -20°C to +70°C
Ingress Protection IP67
Dimension 120.1 × 120.1× 55.4 mm (4.73 × 4.73 × 2.18 in)
Power Input 5-24 VDC with 5000mhA battery backup or Solar powered with 5000mhA battery
Details
Included 2 × Data Cable, 1 × USB Cable, 1 × Activation Magnet, Setscrews
