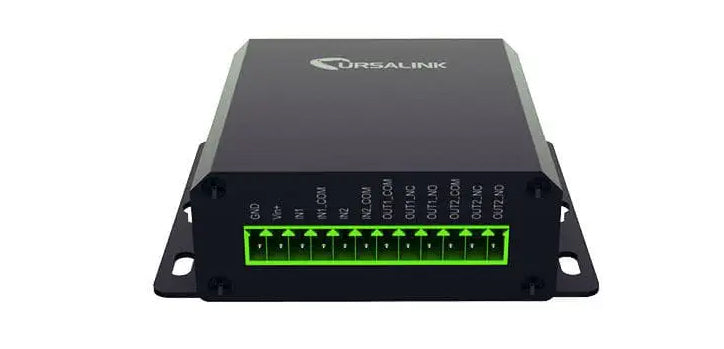

Ursalink 4G/LTE Remote I/O with analog inputs, digital Input and Relay IoT Controller

Ursalink 4G/LTE Remote I/O with analog inputs, digital Input and Relay IoT Controller

UC3422

$75.00 NZD
$75.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
Ursalink 4G/LTE Remote I/O with analog inputs, digital Input and Relay IoT Controller
Ursalink 4G/LTE Remote I/O with analog inputs, digital Input and Relay. The Ursalink UC3422 is designed as a cost-effective industrial machine monitoring device that monitors and controls up to 1 DC signal, 1 drivable relay output and 2 analog inputs. With the aid of UC3422, the alarm condition brings attention to engineering personnel immediately. Also, with Ursalink Cloud, the engineering personnel can trigger any relay outputs from anywhere at any time. The device can give immediate response to the status of both input and output conditions. A cellular modem is embedded in the UC3x22.

(Model Naming Rule: UC3222 = 2G network version, UC3322 = 3G network version, UC3422 = 4G network version, UC3522 = NB-IoT network version)



. .

Features
  • 1 relay drivable output
  • 1 digital input connected with up to 1 DC signal
  • 2 analog inputs for data acquisition
  • Combined with data collection and transmission
  • Easily configured by USB or Ursalink Cloud
  • Ursalink Cloud for remote monitoring and control
  • support public cloud like AWS, Azure and Alibaba Cloud
  • support private UDP/TCP server
  • support MQTT protocol
  • Operate autonomously even when network is down
  • Customizable conditions & programmable actions
  • Send alerts via email
  • Reliable performance with built-in watchdog
Details
Product Code UC3422
SIM Card Micro SIM
Antenna 50 ? SMA Female
Analog Input 4-20 mA, Differential inputs, 12 bit
Digital Input Opto-isolated depending on voltage, Can accept any DC signals of any type, including: Dry Contacts, DC Voltage (3 - 20V), High Voltage: +3V ~ +24V, Low Voltage:+1V max
Digital Output 1 x SPDT Relay Contact Rating, Maximum Load Current: 250VAC/30VDC@3A
IO Connector type Screw Terminals
DC Power Supply 5-24 VDC
Power Consumption Max: 1.6 W, Average: 0.56 W
Operating Temperature -40°C to +70°C (-40°F to +158°F, reduced cellular performance above 60°C)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Relative Humidity 0% to 95% (non- condensing)
Dimensions 79 x 60 x 24 mm
Details
Contents UC3522, DC Power Supply, Terminal Block, Mounting screws, Warranty Card
