Ubiquiti

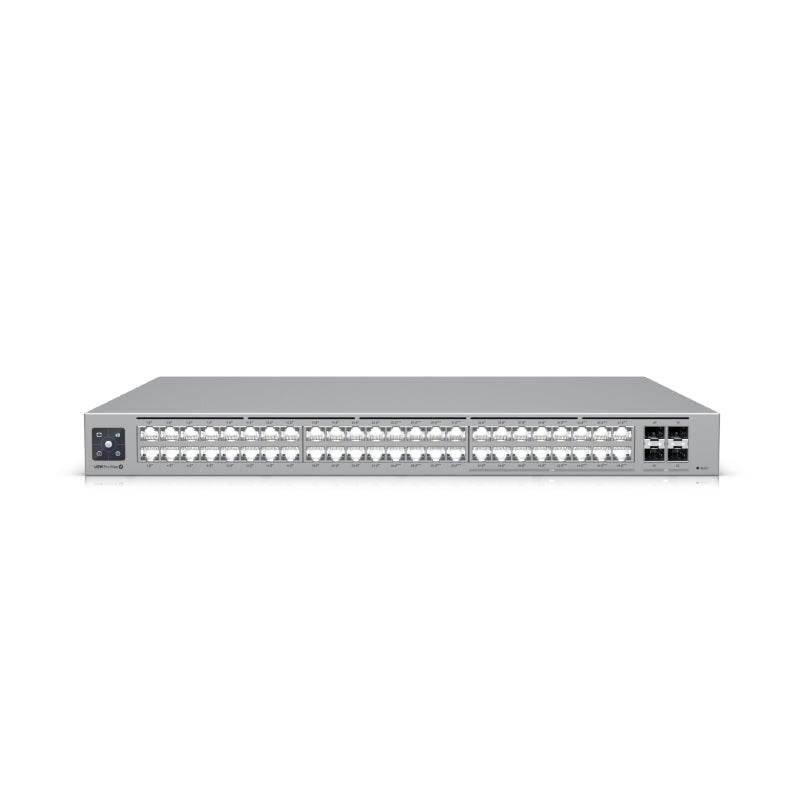

UniFi Pro Max 48 PoE Switch with Etherlighting

UniFi Pro Max 48 PoE Switch with Etherlighting

USW-Pro-Max-48-PoE

$2,895.00 NZD
$2,895.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
UniFi Pro Max 48 PoE Switch with Etherlighting
The USW-Pro-Max-48-PoE is a 48-port, Layer 3 switch with 2.5 GbE and PoE++ output and supports the new Etherlighting™ technology.
Features
  • Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
  • (16) 2.5 GbE ports including (8) PoE+ and (8) PoE++
  • (32) GbE ports including (24) PoE+ and (8) PoE++
  • (4) 10G SFP+ ports
  • DC power backup ready
  • 720W total PoE availability
  • Managed with UniFi Network 8.0.24 and later
Details
Manufacturer's Code USW-Pro-Max-48-PoE
Dimensions 442.4 x 400 x 44 mm
Weight Without mounting brackets: 6.2 kg, With mounting brackets: 6.3 kg
Enclosure material SGCC steel
Management Interface Ethernet In-Band
Networking Interface (32) GbE RJ45 ports, (16) 1/2.5 GbE RJ45 ports, (4) 10G SFP+ ports
PoE Interface (32) PoE/PoE+, (16) 60W PoE++
Total Non-blocking Throughput 112 Gbps
Switching capacity 224 Gbps
Power method (1) Universal input, 100—240V AC, 50/60 Hz, (1) USP-RPS DC input
Power Supply AC/DC, internal, 820W
supported Voltage Range 100—240V AC
Max Power Consumption 100W (Excluding PoE output)
Total Available PoE 720W
Max PoE Wattage Per Port By PSE PoE: 15.4W, PoE+: 30W, PoE++: 60W
Voltage Range PoE Mode PoE: 44—57V, PoE+: 50—57V
LCM Display (1) 1.3" touchscreen
Ambient Operating Temperature -5 to 40° C
Ambient Operating Humidity 10 to 90% noncondensing
Etherlighting™ Ethernet/SFP: Locating, Speed/link, Native VLAN/network
Details
Power Supply IEC Power Cord
Mounting Hardware 1U Rackmount
