Ubiquiti

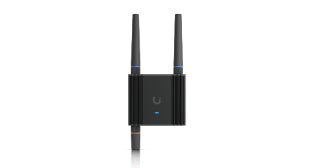

UniFi Mobile Router Ultra Ultra-compact managed LTE Mobile Router for IoT Applications

UniFi Mobile Router Ultra Ultra-compact managed LTE Mobile Router for IoT Applications

UMR-Ultra

$219.00 NZD
$219.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
UniFi Mobile Router Ultra Ultra-compact managed LTE Mobile Router for IoT Applications
Ubiquiti UniFi Mobile Router Ultra is an ultra-compact managed LTE mobile router for IoT applications with integrated LTE, wired WAN, WiFi, automatic failover, and DC power input support.

Power adapter and cable not included; please use a 10W USB-C or ATX power supply.
Features
  • Site-to-site VPN and VPN client routing
  • (2) FE RJ45 ports
  • Automatic failover among LTE, wired WAN and WiFi
  • Powered using USB Type-C or 4-pin DC power socket
  • Wall and DIN rail mount options
  • Optional Mobility Cloud Subscription
  • WiFi 4 single chain 2.4 GHz radio
Details
Manufacturer's Code UMR-Ultra
Dimensions Without Antennas 84 x 82 x 26 mm
Dimensions With antennas 193.5 x 82 x 26 mm
Weight Device: 200 g, DIN rail/wall mounts: 20 g
Enclosure Material Polycarbonate, aluminum alloy
Mount Material Polycarbonate
Networking Interface (2) FE RJ45 ports, LTE Category 4 radio, WiFi 4
Power Supply USB Type-C (5V DC/2A), 4-pin ATX DC power socket (9—30V DC)
Maximum Power Consumption 5.7W
SIM nano SIM
LTE Bands B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66, B34, B38, B39, B40, B41
LTE throughput Speed Download 150 Mbps / Upload 50 Mbps
WiFi Standards WiFi 4, 2.4 GHz, 20/40 MHz
Maximum WiFi TX Power 17 dBm
Antenna SMA Ports (1) Mobile 1: SMA female connector, supports 1Rx only, (1) Mobile 2: SMA female connector, supports 1Tx and 1Rx, (1) WiFi: RP-SMA female connector
External Antennas (2) Mobile/LTE antennas with SMA male connectors, (1) WiFi antenna with RP-SMA male connector, (1) GPS
Mounting DIN rail/wall mount (Included)
Ambient Operating Temperature -30 to 70° C
Ambient Operating Humidity 10 to 90% noncondensing
Certifications FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance®
Details
Power Supply USB-C Power Adapter (Included)
Mounting Yes, DIN rail, pole and wall mounts included
Warranty Standard 12 Month RTB
