Ubiquiti

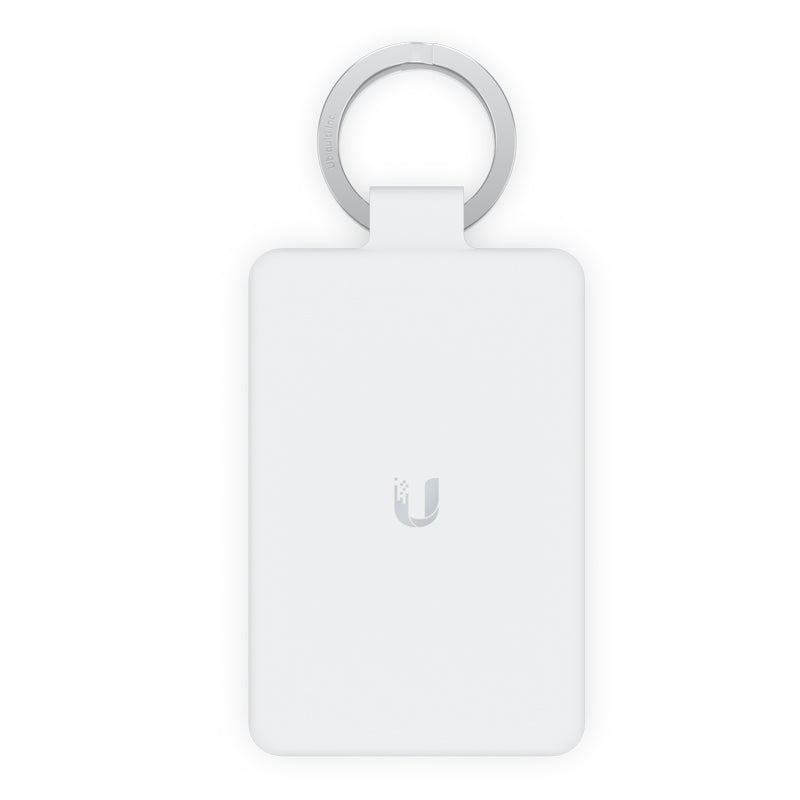

Ubiquiti WiFiMan Wizard Portable Spectrum Analyzer

Ubiquiti WiFiMan Wizard Portable Spectrum Analyzer

WM-W

$230.00 NZD
$230.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti WiFiMan Wizard Portable Spectrum Analyzer
Ubiquiti WiFiMan Wizard Portable Spectrum Analyzer designed for the WiFiMan iOS and Android mobile app.
Features
  • 2.4 GHz and 5 GHz unlicensed band scanning
  • 240 minutes continuous scanning battery life
  • BLE smartphone pairing with USB-C charging port
  • iPhone MagSafe attachable support (A MagSafe case, or compatible iPhone model, is required to attach this device to an iPhone)
Details
Manufacturer's Code WM-W
Frequency range 2.4 to 2.5 GHz; 5.15 to 5.85 GHz
Amplitude range -96 dBm to 0 dBm
Amplitude resolution 1 dBm
Management interface Bluetooth
Power method Li-ion battery
Power supply Rechargeable Li-ion battery, 3.7V DC, 300mAh
Max. power consumption 32.4mW
Charger voltage USB-C, 5V DC/1A
LED White/blue/red
Buttons (1) Power, (1) Factory-reset
Management application UniFi WiFiman iOS: Version 0.18.0 and later, UniFi WiFiman Android: Version 1.15.0 and late
Dimensions 78.5 x 50.5 x 7.9 mm (3.1 x 2 x 0.3")
Weight 32 g (1.1 oz)
Enclosure material Plastic
Weatherproofing IP55
Operating temperature 0 to 40° C (32 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Details
Included USB-C Cable
Power Supply Not Included
