Ubiquiti

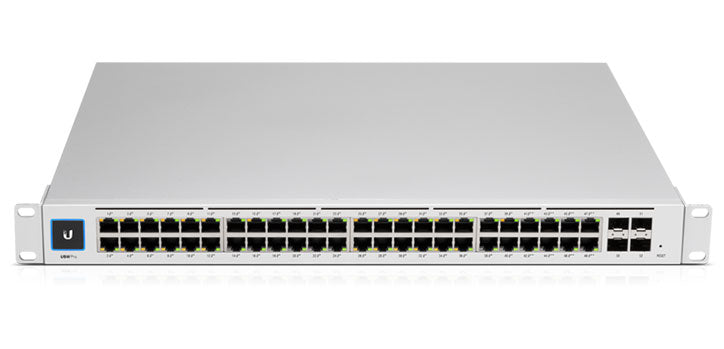

Ubiquiti UniFiSwitch Gen2 48 Port Pro Gigabit Managed PoE+ Switch

Ubiquiti UniFiSwitch Gen2 48 Port Pro Gigabit Managed PoE+ Switch

USW-Pro-48-POE

$2,513.00 NZD
$2,513.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
UniFiSwitch 48 Port Pro Gigabit Managed PoE+ Switch
Ubiquiti UniFiSwitch Gen2 48 Port Pro Gigabit Managed PoE+ Switch. Ubiquiti UniFi Durable Gen2 Switch with Hi-power 802.3bt PoE support. The Ubiquiti USW-Pro-48-POE is a configurable Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Forty PoE+ and eight PoE++ RJ45 ethernet ports have total 600W PoE budget, and four SFP+ ports offer 10Gbps uplink options. Near-silent cooling and a 1.3" touch LCM.

In addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities*, such as inter?VLAN routing, static routing, and DHCP server functionality.

New replacement for older US-48-500W and US-48-750W PoE Switches.

Note: Layer3 will be included in later software release

The UniFi Pro PoE Switch supports an external DC input interface, the proprietary USP RPS interface, as a redundant power feature for backup if the internal PSU fails.
Features
  • 48 Port Auto-Sensing IEEE 802.3af/at/bt PoE
  • SFP+ Ports for 10G Links
  • Integrated Fans for Near-Silent Cooling
  • Manage Your Networks from a Single Control Plane
  • Intuitive and Robust Configuration, Control and Monitoring
  • Remote Firmware Upgrade
  • Users and Guests
  • Guest Portal/Hotspot support
Details
Manufacturer's Code USW-Pro-48-POE-AU
Dimensions 442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72")
Weight 6.25 kg (13.78 lb), With Brackets 6.34 kg (13.98 lb)
Interfaces Networking (48) 10/100/1000 RJ45 Ports, (4) 1/10G SFP+ Ethernet Ports
Management Ethernet In-Band
Total Non-Blocking Throughput 88 Gbps
Switching Capacity 176 Gbps
Forwarding Rate 130.944 Mpps
Power Method Universal Input 100-240VAC, 50/60 Hz, USP RPS DC Input 52VDC, 11.54A; 11.5VDC, 5.22A
Power Supply AC/DC, Internal, 660W
Voltage Range 100 to 240VAC
Max Power Consumption (Excluding PoE Output) 60W
LEDs System Status, RJ45 Data Ports PoE; Speed/Link/Activity, SFP+ Data Ports Link/Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
Total Available PoE 600W
PoE Interfaces Ports 1-40 PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-), Ports 41-48 60W PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
Max. PoE Wattage per Port by PSE 802.3at 32W, 802.3bt 64W
Voltage Range 802.3af 44-57V, 802.3at/bt 50-57V
Details
Power Supply IEC Power Cord
Mounting Hardware 1U Rackmount
