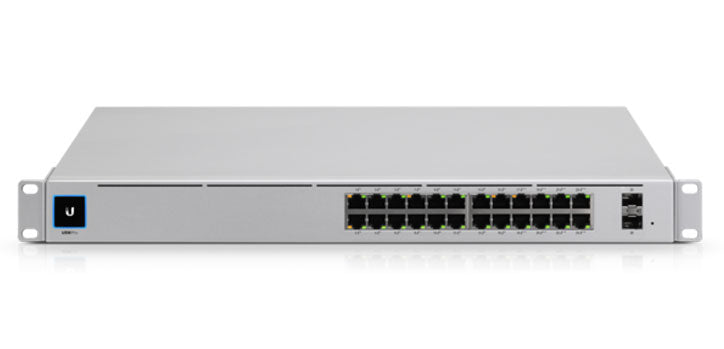

Ubiquiti UniFiSwitch Gen2 24 Port Pro Gigabit Managed PoE+ Switch

. The Ubiquiti UniFiSwitch USW-Pro-24-POE is a configurable Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++... In addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities*, such as inter?VLAN routing, static routing, and DHCP server functionality.. Note: Layer3 will be included in later software release The UniFi Pro PoE Switch supports an external DC input interface, the proprietary USP RPS interface, as a redundant power feature for backup if the internal PSU fails. Features 24 Port Auto-Sensing IEEE 802.3af/at/bt PoE SFP+ Ports for 10G Links Integrated Fans for Near-Silent Cooling Manage Your Networks from a Single Control Plane Intuitive and Robust Configuration, Control and Monitoring Remote Firmware Upgrade Users and Guests Guest Portal/Hotspot support Details Manufacturer's Code USW-Pro-24-POE-AU Dimensions 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72") Weight 4.30 kg (9.48 lb), With Brackets 4.39 kg (9.68 lb) Interfaces Networking (24) 10/100/1000 RJ45 Ports, (2) 1/10G SFP+ Ethernet Ports Management Ethernet In-Band Total Non-Blocking Throughput 44 Gbps Switching Capacity 88 Gbps Forwarding Rate 65.472 Mpps Power Method Universal Input 100-240VAC, 50/60 Hz, USP RPS DC Input 52VDC, 7.69A; 11.5VDC, 2.61A Power Supply AC/DC, Internal, 450W Voltage Range 100 to 240VAC Max Power Consumption (Excluding PoE Output) 50W LEDs System Status, RJ45 Data Ports PoE; Speed/Link/Activity, SFP+ Data Ports Link/Activity ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV Shock and Vibration ETSI300-019-1.4 Standard Operating Temperature - Operating Humidity 10 - 90% Noncondensing Certifications CE, FCC, IC Total Available PoE 400W PoE Interfaces Ports 1-16 PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-), Ports 17-24 60W PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) Max. PoE Wattage per Port by PSE 802.3at 32W, 802.3bt 64W Voltage Range 802.3af Mode 44-57V, 802.3at/bt Mode 50-57V support Details Power Supply IEC Power Cord Mounting Hardware 1U Rackmount Key features 5 to 40° C (23 to 104° F) UniFiSwitch 24 Port Pro Gigabit Managed PoE+ Switch Ubiquiti UniFiSwitch Gen2 24 Port Pro Gigabit Managed PoE+ Switch Sixteen PoE+ and eight PoE++ RJ45 ethernet ports have total 400W PoE budget, and two SFP+ ports offer 10Gbps uplink options Near-silent cooling and a 1.3" touch LCM New replacement for older US-24-250W and US-24-500W PoE Switches
