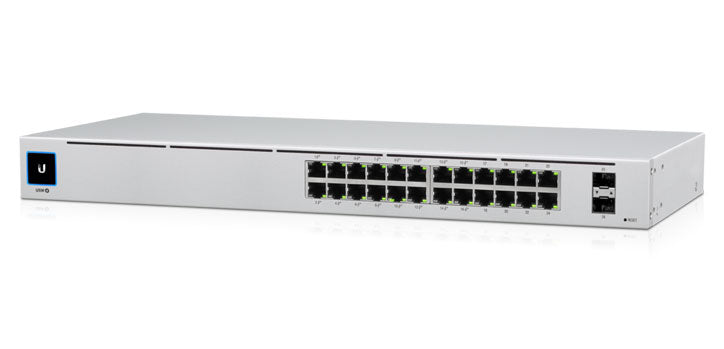

Ubiquiti UniFiSwitch Gen2 24 Port Gigabit Managed PoE Switch with SFP

. The Ubiquiti USW-24-POE is a configurable Gigabit Layer 2 switch with twenty-four Gigabit Ethernet ports including sixteen auto-sensing 802.3at PoE+ ports, and two SFP ports.... Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere... Features 16 Ports Auto-Sensing IEEE 802.3af/at PoE SFP Ports for Gigabit Fibre Connectivity Fanless, Silent Thermal Cooling Manage Your Networks from a Single Control Plane Intuitive and Robust Configuration, Control and Monitoring Remote Firmware Upgrade Users and Guests Guest Portal/Hotspot support Details Manufacturer's Code USW-24-POE-AU Dimensions 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72") Weight 3.00 kg (6.61 lb), With Brackets 3.09 kg (6.81 lb) Interfaces Networking (24) 10/100/1000 RJ45 Ports, (2) 1G SFP Ethernet Ports Management Ethernet In-Band Total Non-Blocking Throughput 26 Gbps Switching Capacity 52 Gbps Forwarding Rate 38.69 Mpps Power Method 100-240VAC, 50/60 Hz, Universal Input Power Supply AC/DC, Internal, 120W Voltage Range 100 to 240VAC Max Power Consumption (Excluding PoE Output) 25W LEDs System Status, RJ45 Data Ports PoE; Speed/Link/Activity, SFP Data Ports Link/Activity ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV Shock and Vibration ETSI300-019-1.4 Standard Operating Temperature - Operating Humidity 10 - 90% Noncondensing Certifications CE, FCC, IC Total Available PoE 95W PoE Interfaces Ports 1-16 POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-) Max. PoE Wattage per Port by PSE 802.3at 32W Voltage Range 802.3af Mode 44-57V, 802.3at Mode 50-57V support Go Wireless Help Centre Solutions Details Power Supply IEC Power Cord Mounting Hardware 1U Rackmount Key features 5 to 40° C (23 to 104° F) UniFiSwitch 24 Port Gigabit Managed PoE Switch with SFP Ubiquiti UniFiSwitch Gen2 24 Port Gigabit Managed PoE Switch with SFP It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fibre uplink options to your enterprise network The USW-24-POE features a 1.3" touch LCM to provide status information With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet

Key features

• New replacement for older US-24-250W PoE Switches
• Note: Only Ports 1-16 can supply POE+ IEEE 802.3af/at and that the Total available power budget is only 95 Watts
