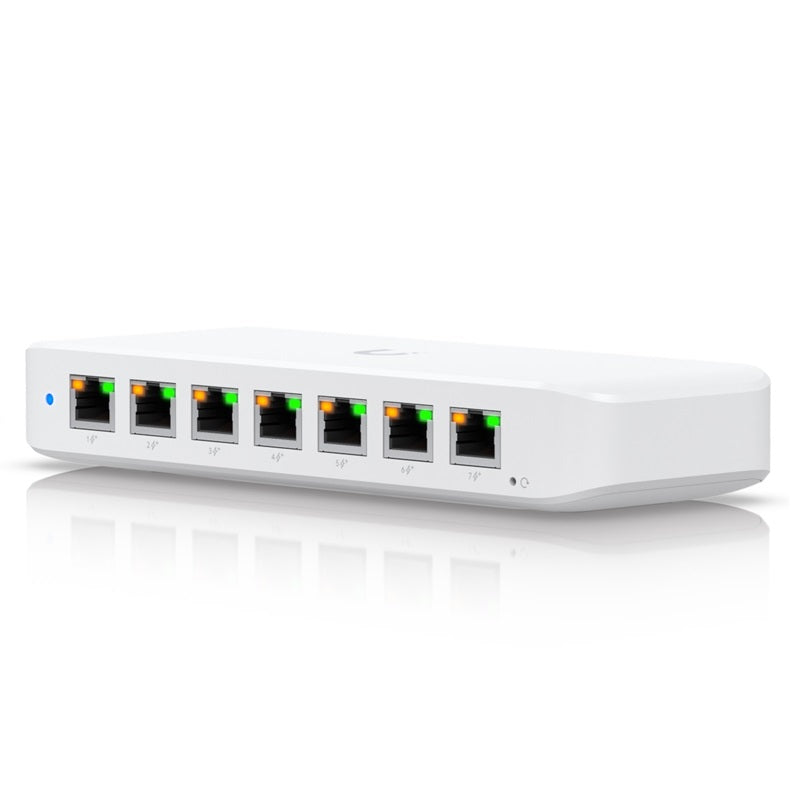

Ubiquiti UniFi Ultra Compact 8-port Layer 2 GbE PoE switch with versatile mounting options - No Power Supply
Ubiquiti UniFi Ultra Compact 8-port Layer 2 GbE PoE switch with versatile mounting options - No Power Supply
SKU:USW-ULTRA
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Couldn't load pickup availability
Ubiquiti UniFi Ultra Compact 8-port, Layer 2 GbE PoE switch with versatile mounting options - No Power Supply Ubiquiti UniFi Ultra Compact 8-port, Layer 2 GbE PoE switch with versatile mounting options - No Power Supply Features (7) GbE PoE+ output ports (1) GbE PoE++ input port* Power supply not included 42W total PoE availability with PoE++ input 16W total PoE availability with PoE+ input Details Manufacturer's Code USW-Ultra Management interface Ethernet In-Band Networking interface (8) GbE RJ45 ports PoE interface (7) PoE/PoE+ (Pins 1, 2+; 3, 6-) Total non-blocking throughput 8 Gbps Switching capacity 16 Gbps Power method (1) 54V, 3.9A power adapter (Not included), (1) 54V, 1.1A power adapter (Not included), PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-) supported voltage range 44—57V DC Max. power consumption 9W with PoE input (Excluding PoE output), 8W with AC adapter input (Excluding PoE output) Total available PoE PoE++ input: 42W, PoE+ input: 16W, 60W PoE adapter input: 42W, 60W AC adapter input: 52W, 210W AC adapter input: 202W* *At 45° C (113° F) operating temperature.. PoE+ wattage per port by PSE 30W Button Factory reset Ambient operating temperature PoE++ input: -30 to 60° C (-22 to 140° F), 60W AC adapter input: -20 to 45° C (-4 to 113° F), 210W AC adapter input: -20 to 60° C (-4 to 140° F) Ambient operating humidity 10 to 90% noncondensing Layer 2 Switching features Port isolation, Storm control, Port mirroring, Multicast / broadcast rate limiting, Flow control, Jumbo frames, Egress rate limit UniFi Network Version 8.0.28 and later Dimensions 203 x 76 x 33 mm (8 x 3 x 1.3") Weight Device: 320 g (11.3 oz), Wall mount: 45 g (1.6 oz) Enclosure material Polycarbonate Certifications CE, FCC, IC support Details Power Supply Not Included Mounting Wall Mount Included Key features Reduced to 161W (230V) or 121W (115V) at 60° C (140° F) Max
