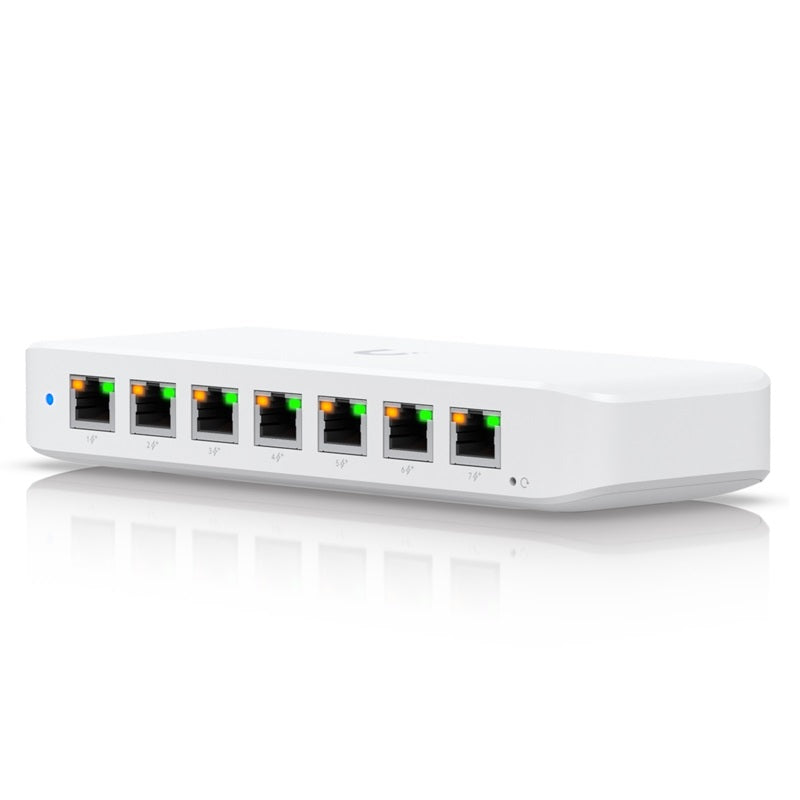

Ubiquiti UniFi Ultra 52W Compact 8-port, Layer 2 GbE PoE switch with versatile mounting options

Ubiquiti UniFi Ultra 52W Compact 8-port, Layer 2 GbE PoE switch with versatile mounting options

USW-ULTRA-60W

$331.00 NZD
$331.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti UniFi Ultra 52W Compact 8-port, Layer 2 GbE PoE switch with versatile mounting options - 60W Power Supply Included
Ubiquiti UniFi Ultra 52W Compact 8-port, Layer 2 GbE PoE switch with versatile mounting options.
Features
  • (7) GbE PoE+ output ports
  • (1) GbE port with optional PoE++ input*
  • 52W PoE availability with the included AC power adapter
Details
Manufacturer's Code USW-Ultra-60W
Management interface Ethernet In-Band
Networking interface (8) GbE RJ45 ports
PoE interface (7) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 8 Gbps
Switching capacity 16 Gbps
Power method (1) 54V, 1.1A power adapter (included), PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
supported voltage range 44—57V DC
Max. power consumption 9W with PoE input (Excluding PoE output), 8W with AC adapter input (Excluding PoE output)
Total available PoE PoE++ input: 42W, PoE+ input: 16W, 60W PoE adapter input: 42W, 60W AC adapter input: 52W, 210W AC adapter input: 202W* *At 45° C (113° F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60° C (140° F)
Max. PoE+ wattage per port by PSE 30W
Button Factory reset
Ambient operating temperature PoE++ input: -30 to 60° C (-22 to 140° F), 60W AC adapter input: -20 to 45° C (-4 to 113° F), 210W AC adapter input: -20 to 60° C (-4 to 140° F)
Ambient operating humidity 10 to 90% noncondensing
Layer 2 Switching features Port isolation, Storm control, Port mirroring, Multicast / broadcast rate limiting, Flow control, Jumbo frames, Egress rate limit
UniFi Network Version 8.0.28 and later
Dimensions 203 x 76 x 33 mm (8 x 3 x 1.3")
Weight Device: 320 g (11.3 oz), Wall mount: 45 g (1.6 oz), 60W adapter: 330 g (11.6 oz)
Enclosure material Polycarbonate
Certifications CE, FCC, IC
Details
Power Supply 54V, 1.1A power adapter Included
Mounting Wall Mount Included
