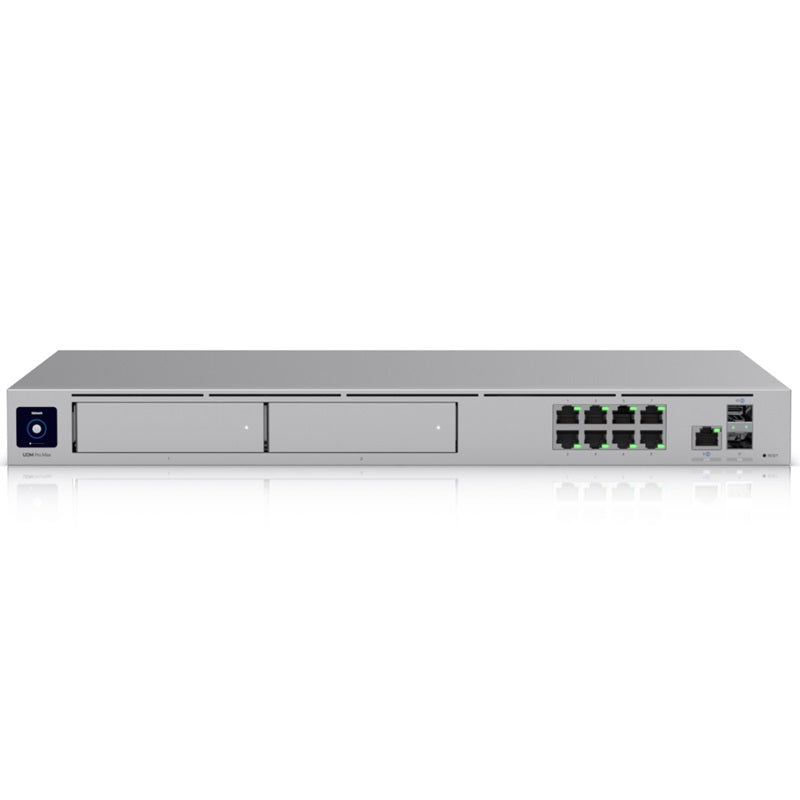

Ubiquiti UniFi UDM-Pro-Max Dream Machine Pro Max 10 Gbps Multi-WAN Large Scale UniFi Management Gateway
Ubiquiti UniFi UDM-Pro-Max Dream Machine Pro Max 10 Gbps Multi-WAN Large Scale UniFi Management Gateway
SKU:UDM-Pro-Max
Regular price
$1,284.00 NZD
Regular price
Sale price
$1,284.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Low stock
Quantity
Couldn't load pickup availability
Ubiquiti UniFi UDM-Pro-Max Dream Machine Pro Max 10 Gbps Multi-WAN Large Scale UniFi Management Gateway
Ubiquiti UniFi UDM-Pro-Max Dream Machine Pro Max professional-grade, rack-mount Cloud Gateway with 10 Gbps performance, multi-WAN load balancing, and two NVR drive bays designed for large-scale, multi-application UniFi sites.
Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE
Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE
Features
- Includes full UniFi application suite for device management
- 5 Gbps routing with IDS/IPS
- (1) 10G SFP+*, (8) GbE RJ45 LAN ports
- (1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports
- (2) 3.5" NVR HDD bays with RAID data protection
- Built-in 128 GB SSD for NVR detection recordings
- 1.3" touchscreen
- Great for Hyperfibre connections
| Details | |
|---|---|
| Manufacturer's Code | UDM-Pro-Max-AU |
| Processor | Quad-core ARM® Cortex®-A57 at 2.0 GHz |
| System memory | 8 GB DDR4 |
| On-board storage | 32 GB eMMC |
| Integrated | 128 GB SSD |
| Management interface | Ethernet, Bluetooth |
| Networking interface | LAN: (8) GbE RJ45 ports, (1) 10G SFP+ port; WAN: (1) 2.5 GbE RJ45 port, (1) 10G SFP+ port |
| IDS/IPS throughput | 5 Gbps* Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation. |
| Power method | (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz, (1) USP-RPS DC input, 11.5V DC, 8.7A |
| Power supply | AC/DC, internal, 100W |
| supported voltage range | 100—240V AC |
| Max. power consumption | 100W |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Gateway Performance | Redundant WAN with failover and load balancing, WiFi QoS with UniFi APs, Application, domain, and country-based QoS, Application and device type identification, Additional internet failover with LTE Backup, Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules, Signature-based IPS/IDS threat detection, Content, country, domain, and ad filtering, VLAN/subnet-based traffic segmentation, Full stateful firewall |
| Advanced networking | License-free SD-WAN, WireGuard, L2TP and OpenVPN server, OpenVPN client, OpenVPN and IPsec site-to-site VPN, One-click Teleport and Identity VPN, Policy-based WAN and VPN routing, DHCP relay, Customizable DHCP server, IGMP proxy, IPv6 ISP support |
| Ethernet LED | Green: link/activity |
| SFP+ LED | Green: link/activity |
| HDD LED | White: disk activity, Amber: disk error |
| RPS | Blue: ready |
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
| Weight | 4.7 kg (10.4 lb) |
| Enclosure material | Aluminium CNC, SGCC steel |
| Mount material | SGCC steel |
| Ambient operating temperature | -10° to 40° C (14° to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Details | |
|---|---|
| Included | Mains Power Cable, Rack Mount Kit |
