Ubiquiti

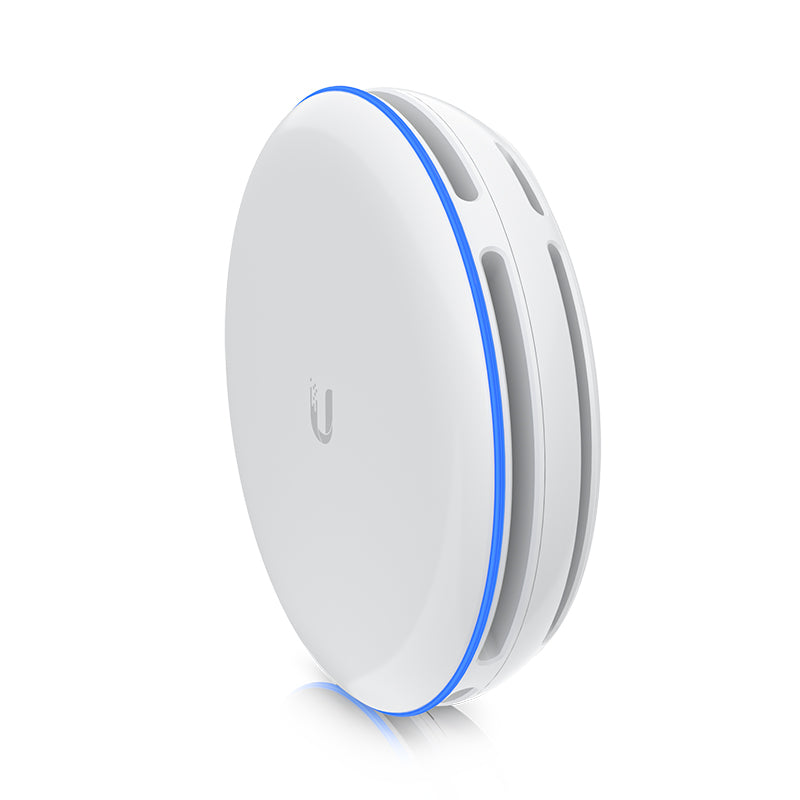

Ubiquiti UniFi UBB-XG 10Gbps 60GHz Building-to-Building Bridge (2 Pack)

Ubiquiti UniFi UBB-XG 10Gbps 60GHz Building-to-Building Bridge (2 Pack)

UBB-XG

$2,388.00 NZD
$2,388.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
Ubiquiti UniFi UBB-XG 10Gbps 60GHz Building-to-Building Bridge (2 Pack)
Ubiquiti UniFi UBB-XG 10Gbps 60GHz Building-to-Building Bridge Pair. A 60 GHz wireless point-to-point bridge with 10G SFP+ uplink for maximum performance.

Features
  • 500 m (1,640 ft) maximum range
  • 60 GHz & 5 GHz dual-radio redundancy
  • (1) 10G SFP+ and (1) GbE PoE++ port
  • Powered using PoE++*
  • Built-in LED alignment indicators
  • Sold as 2-pack
Details
Manufacturer's Code UBB-XG-EU
WiFi standards 802.11ad/ay, 802.11ac (WiFi 5)
Wireless security WPA2 AES (Always On)
Operating modes PtP
VLAN Management VLAN only
Operating frequency 57 to 66 GHz *Dependent on regional regulations.
Channel bandwidth 2,160/4,320 MHz (Channel Bonding Enabled)
Operating channels 58,320/59,400/60,480/61,560/62,640/63,720/64,800 MHz *Dependent on regional regulations.
Networking interface (1) GbE RJ45 port, (1) 1/10G SFP+ port
Management interface Ethernet, Bluetooth
Power method PoE++, Passive PoE [4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)]
Power supply UniFi PoE switch or 48V, 0.65A Gigabit PoE adapter (included)
supported voltage range 48V DC ± 10%
Max. power consumption 31.2W
Throughput rate 5 GHz - 866.6 Mbps, 60 GHz - 6 Gbps
Maximum range 500 m (1,640 ft)
LEDs R/G/B
Button Factory-reset
Dimensions 191.8 x 59 mm (7.6 x 2.3")
Weight Without mount: 1.7 kg (3.8 lb), With mount: 2.9 kg (6.3 lb)
Enclosure materials Aluminum alloy, UV-resistant polycarbonate
Mount material Stainless steel
Mounting 60G precision alignment pole mount (Included)
Pole compatibility 25.4-63.5 mm (1-2.5")
Weatherproofing IPX6
Operating temperature -40 to 55° C (-40 to 131° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE, terragraph
Details
Included 2 x UBB-XG Radios and 48V, 0.65A Gigabit PoE
Pole Mount Included
