Ubiquiti

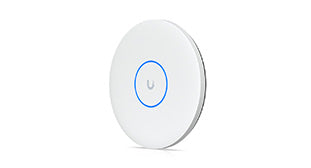

Ubiquiti UniFi U7 Pro XGS Ceiling-mounted 8-stream WiFi 7 Access Point

Ubiquiti UniFi U7 Pro XGS Ceiling-mounted 8-stream WiFi 7 Access Point

U7-Pro-XGS

$651.00 NZD
$651.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti UniFi U7 Pro XGS 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support
Ubiquiti UniFi U7 Pro XGS Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.

Features
  • WiFi7 with 6 GHz support
  • 8 spatial streams
  • Real-time spectral analysis for enhanced channel selection
  • 160 m² (1,750 ft²) coverage
  • 500+ connected devices
  • Powered using PoE++
  • 10 / 5 / 2.5 / 1 GbE uplink
  • Multi-Link Operation (MLO)
Details
Manufacturer's Product Code U7-Pro-XGS
Dimensions Ø215 x 32.5 mm (Ø8.5 x 1.3")
WiFi Standard WiFi 7
Spatial Streams 8
Coverage Area 160 m² (1,750 ft²)
Max. Client Count 500+
Uplink 10 GbE
Mounting Ceiling, Wall (Lite Mount Included)
Power Method PoE++
MIMO 6 GHz: 2 x 2 (DL/UL MU-MIMO), 5 GHz: 4 x 4 (DL/UL MU-MIMO), 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate 6 GHz: 5.8 Gbps (BW320), 5 GHz: 8.6 Gbps (BW240), 2.4 GHz: 688 Mbps (BW40)
Antenna Gain 6 GHz: 6 dBi, 5 GHz: 6 dBi, 2.4 GHz: 4 dBi
Max. TX Power 6 GHz: 24 dBm, 5 GHz: 29 dBm, 2.4 GHz: 23 dBm
Max. BSSIDs 8 per Radio
Max. Power Consumption 29W
supported Voltage Range 42.5—57V DC
Networking Interface (1) 10 GbE RJ45 port
Weight 800 g (1.8 lb)
Management Ethernet
Enclosure Material UV-stabilized polycarbonate, aluminum alloy
Mount Material Stainless steel (SUS304), galvanized steel (SGCC)
LEDs System: White/Blue
Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant Yes
Certifications CE, FCC, IC
Ambient Operating Temperature -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
Details
Power Injector Not Included
Wall Mount Wall/Ceiling (Kits Included)
