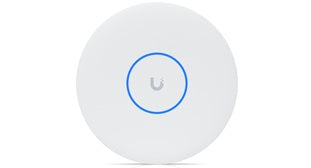

Ubiquiti UniFi U7 Pro XG Ceiling-mounted 6-stream Tri-Radio WiFi 7 Access Point with 10/5/2.5/1 GbE support

Ubiquiti UniFi U7 Pro XG Ceiling-mounted 6-stream Tri-Radio WiFi 7 Access Point with 10/5/2.5/1 GbE support

U7-Pro-XG

$437.00 NZD
$437.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Ubiquiti UniFi U7 Pro XG Ceiling-mounted 6-stream Tri-Radio WiFi 7 Access Point with 10/5/2.5/1 GbE support
Ubiquiti UniFi U7 Pro XG White Ceiling-mounted 6-stream WiFi 7 Tri-Radio Access Point with 10/5/2.5/1 Gb Ethernet support.

PoE NOT included
Features
  • 10/5/2.5/1 Gb Ethernet
  • Dedicated Spectral Radio
  • Powerful Channel Planning
  • WiFi7 Tri-radio 2.4 / 5 / 6 GHz with 6 spatial streams
  • RF Environment Scanning
  • Flexible Authentication Methods
  • Centralized Remote Management
  • AP Analyzer and Packet Capture
Details
Manufacturer's Code U7-Pro-XG (White)
WiFi Standard WiFi 7
Spatial Streams 6
MIMO 6 GHz 2 x 2 (DL/UL MU-MIMO), 5 GHz 2 x 2 (DL/UL MU-MIMO), 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate 6 GHz 5.8 Gbps (BW320), 5 GHz 4.3 Gbps (BW240), 2.4 GHz ,688 Mbps (BW40)
Antenna Gain 6 GHz 6 dBi, 5 GHz 5 dBi, 2.4 GHz 4 dBi
Max. TX Power 6 GHz 24 dBm, 5 GHz 26 dBm, 2.4 GHz 23 dBm
Max. BSSIDs 8 per Radio
Coverage Area 140 m² (1,500 ft²)
Max. Client Count 300+
Uplink 10 GbE
Features Wireless Meshing, Band Steering, 802.11v BSS Transition Management, 802.11r Fast Roaming, 802.11k Radio Resource Management (RRM), Advanced Radio Management, Passpoint (Hotspot 2.0), Captive Hotspot Portal, Private Pre-Shared Key (PPSK), WiFi Speed Limiting, Client Device Isolation, WiFi Schedules, RADIUS over TLS (RadSec), Dynamic RADIUS-assigned VLAN
Mounting Ceiling, Wall (Lite Mount Included)
Power Method PoE+
Max. Power Consumption 22W
supported Voltage Range 42.5—57V DC
Networking Interface (1) 10 GbE RJ45 port
Dimensions Ø206 x 32.5 mm
Weight 750 g (1.7 lb)
Management Ethernet
Enclosure Material UV-stabilized polycarbonate, aluminum alloy
Mount Material Stainless steel (SUS304), galvanized steel (SGCC)
LEDs System White/Blue
Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant Yes
Certifications CE, FCC, IC
Ambient Operating Temperature -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
Software Application Requirements UniFi Network
Details
Power Injector Not Included
Wall Mount Wall/Ceiling (Kits Included)
