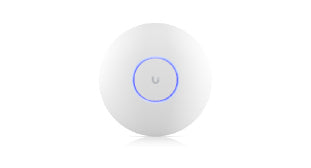

Ubiquiti UniFi U7-Pro-Max Indoor Tri-Band 2.4GHz/5GHz/6GHz 8 Spatial Streams WiFi 7 Access Point

Ubiquiti UniFi U7-Pro-Max Indoor Tri-Band 2.4GHz/5GHz/6GHz 8 Spatial Streams WiFi 7 Access Point

U7-Pro-Max

$588.00 NZD
$588.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti UniFi U7-Pro-Max Indoor Tri-Band Wi-Fi 7 2.4GHz/5GHz/6GHz 8 Spatial Streams Access Point
Ubiquiti UniFi U7-Pro-Max is a ceiling-mounted WiFi 7 Tri-radio 2.4 / 5 / 6 GHz 8 spatial streams with 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi7. The U7-Pro-Max supports demanding large-scale high density, 500+ connected device environments.

Features
  • WiFi7 Tri-Radio with 6 GHz support
  • 8 spatial streams
  • Real-time spectral analysis for enhanced channel selection
  • 160 m² (1,750 ft²) coverage
  • 500+ connected devices
  • Powered using PoE+
  • 2.5 GbE uplink
  • Multi-Link Operation (MLO)
Details
Manufacturer's Code U7-Pro-Max
Dimensions Ø206 x 46 mm
Weight 680 g
Enclosure Material Polycarbonate, aluminum
Mount Material Stainless steel (SUS304), galvanized steel (SGCC)
Networking Interface (1) 1/2.5 GbE RJ45 port
Power Method PoE+
Power Supply UniFi PoE switch
supported Voltage Range 44—57V DC
Maximum Power Consumption 22W
Maximum TX Power 2.4 GHz @ 23 dBm, 5 GHz @ 29 dBm, 6 GHz @ 23 dBm
MIMO 2.4 GHz: 2 x 2, 5 GHz: 4 x 4, 6 GHz: 2 x 2
Throughput Rate 2.4 GHz @ 688 Mbps, 5 GHz @ 8648 Mbps, 6 GHz @ 5765 Mbps
Antenna Gain 2.4 GHz @ 4 dBi, 5 GHz @ 6 dBi, 6 GHz @ 5.9 dBi
Mounting Wall, ceiling (Included)
Ambient Operating Temperature -30 to 60° C
Ambient Operating Humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Details
Power Injector Not Included
Wall Mount Wall/Ceiling (Kits Included)
