Ubiquiti

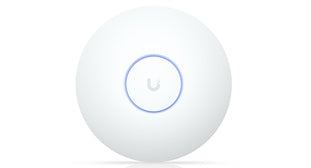

Ubiquiti UniFi U7-LR Long Range Compact, Ceiling-Mount WiFi 7 Access Point
Ubiquiti UniFi U7-LR Long Range Compact, Ceiling-Mount WiFi 7 Access Point
SKU:U7-LR
Regular price
$345.00 NZD
Regular price
Sale price
$345.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability
Ubiquiti UniFi U7-LR Long Range Compact, Ceiling-Mount WiFi 7 Access Point
Ubiquiti UniFi U7-LR is a long range high power, ceiling-mount WiFi 7 AP with 5 spatial streams for extended signal range.
Ubiquiti Wifi7 AP's feature a dedicated spectrum analyzer radio the continuously scans your environment and proactively identifying interference to optimise Wi-Fi performance and reliability .
PRISM active RF filtering blocks adjacent channel 5GHz interference to boost SNR to increase range and stability in crowded RF environments.
PoE NOT included
Ubiquiti Wifi7 AP's feature a dedicated spectrum analyzer radio the continuously scans your environment and proactively identifying interference to optimise Wi-Fi performance and reliability .
PRISM active RF filtering blocks adjacent channel 5GHz interference to boost SNR to increase range and stability in crowded RF environments.
PoE NOT included
Features
- Long Range High Power WIFI7
| Details | |
|---|---|
| Manufacturer's Code | U7-LR |
| Dimensions | Ø175.7 x 43 mm |
| WiFi Standard | WiFi 7, 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160) |
| Spatial Streams | 5 |
| MIMO | 5 GHz 3 x 3 (DL/UL MU-MIMO), 2.4 GHz 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 5 GHz 4.3 Gbps (BW160), 2.4 GHz 688 Mbps (BW40) |
| Antenna Gain | 5 GHz 6 dBi, 2.4 GHz 4 dBi |
| Max. TX Power | 5 GHz 27 dBm, 2.4 GHz 26 dBm |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall (Plastic Mounting Plate included) |
| Power Method | PoE |
| Max. Power Consumption | 14W |
| supported Voltage Range | 42.5—57V DC |
| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 448 g (15.8 oz) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, galvanized steel (SGCC) |
| LEDs | System: White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz) |
| NDAA Compliant | yes |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Application Requirements | UniFi Network: Version 9.1.120 and later, Mobile App: iOS version 10.20.2 and later, Android version 10.21.7 and later |
| Details | |
|---|---|
| Power Injector | Not Included |
| Wall Mount | Wall/Ceiling (Kits Included) |
