Ubiquiti UniFi U-PoE-Plus PoE Adapter (30W)

Ubiquiti UniFi U-PoE-Plus PoE Adapter (30W)

U-PoE-PLUS

$37.00 NZD
$37.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

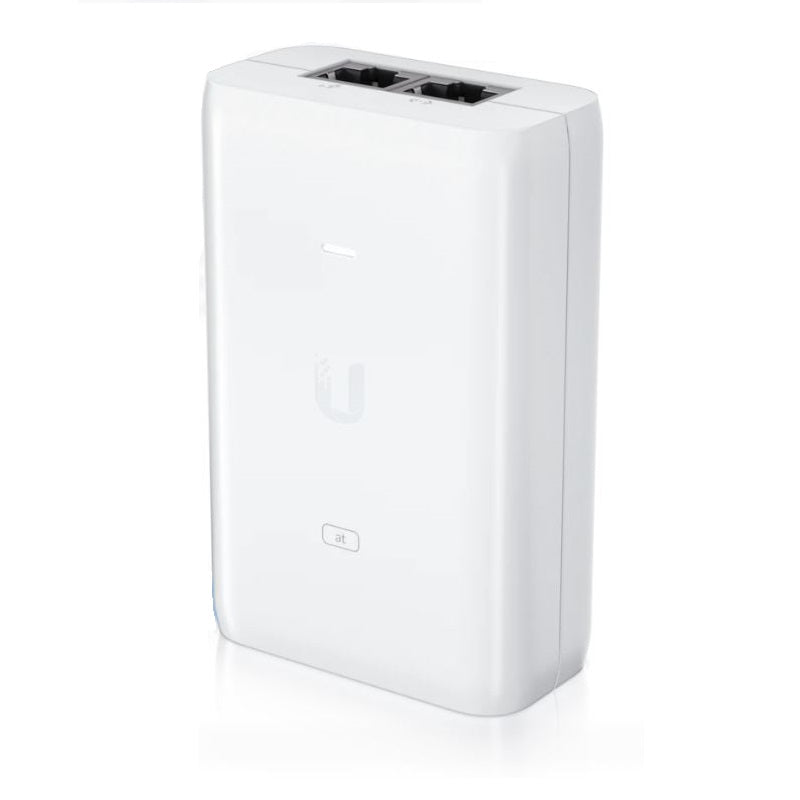

Ubiquiti UniFi U-PoE-Plus PoE Adapter (30W)
Ubiquiti 802.3at Gigabit PoE Injector 48VDC 30W. The U-PoE+ is a PoE+ injector designed to power 802.3at compatible devices. Capable of delivering 30W of PoE+ power, the U-PoE+ can be used to power any U6 Access Point (U6-LR, U6-Lite, U6-Pro), while also protecting against electrical surges.
Features
  • Provides up to 30W of PoE+ (802.3at) power
  • Compatible with the next generation of U6 Access points
  • Surge protection and Clamping protection
  • AC cable with earth ground
Details
Product Code U-PoE+
Dimensions 93 x 62 x 35 mm
Weight 156 g
Output Voltage 48VDC @ 0.65A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability Yes
Reset Button No
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 0.75A@90VAC
Inrush Current <100A Peak @230VAC, 26?
Efficiency 87%
Output Ripple 1% Max.
Switching Frequency 70 kHz Max.
Line Regulation ? 3%
Load Regulation ? 5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 90% Noncondensing
AC Connector IEC-320 C6
Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 ?s) Power
Peak Pulse Current 36A (10/1000 ?s) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Certifications CE, FCC, IC, UL
Details
Power Cord 3 Pin Clover Lead
