Ubiquiti

Ubiquiti UniFi Professional XG 24 Port Layer 3 Etherlighting Switch

Ubiquiti UniFi Professional XG 24 Port Layer 3 Etherlighting Switch

USW-Pro-XG-24

$2,511.00 NZD
$2,511.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock

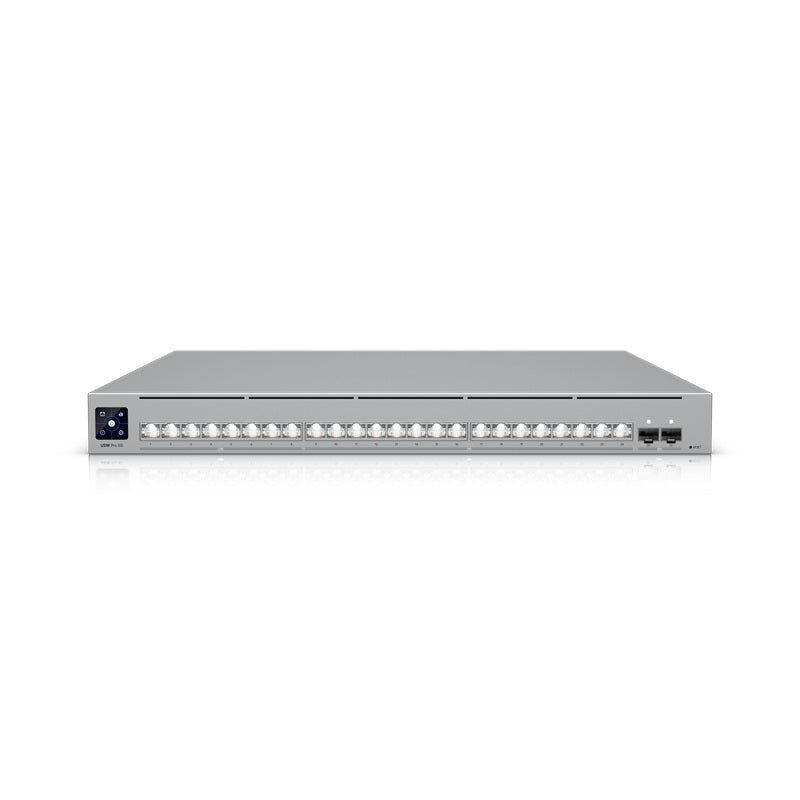

Ubiquiti UniFi Pro XG 24 Professional-grade, 24-port Layer 3 Etherlighting™ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports
Ubiquiti UniFi Pro XG 24 Professional-grade, 24-port Layer 3 Etherlighting™ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports

Features
  • Etherlighting™ - A Cable Management Dream - Identify native VLANs with a glance. Instantly differentiate ports by speed. Find any device in seconds.
  • Ideal for 6 GHz WiFi Access Points - Featuring 2.5 / 5 / 10 GbE ports for enterprise performance.
  • Power Redundancy - Keep your UniFi switches online during power failures with seamless backup and automatic failover.
Details
Manufacturer's Code USW-Pro-XG-24
Dimensions 442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
Port Layout 8x 2.5 GbE RJ45 (2.5G/1G/100M/10M), 16x 10 GbE RJ45 (10G/5G/2.5G/1G/100M/10M), 2x 25G SFP28 (25G/10G/1G)
Redundancy DC Power Backup
Layer 3 Yes
Form Factor Rack mount (1U)
Etherlighting™ Yes
Switching Capacity 460 Gbps
Total Non-Blocking Throughput 230 Gbps
Forwarding Rate 342 Mpps
supported VLANs 1,000
MAC Address Table Size 128,000
L3 Table Size ARP Entries 128,000, IPv4 Routes 256,000
Packet Buffer Size 8 MB
Access Lists IPv4 256, MAC 256
Max. Power Consumption 150W
Power Method (1) Universal input, 100—240V AC, 50/60 Hz, (1) USP RPS DC input
Power Input Method AC input
Power Supply AC/DC, internal, 200W
supported Voltage Range 100—240V AC
Management Ethernet, AR
Weight Without mounting brackets: 7.2 kg (15.9 lb), With mounting brackets: 7.3 kg (16.1 lb)
Enclosure Material SGCC steel
Mount Material SGCC steel
supported Rack Depth 482.6 mm (19") four-post racks, Posts depths ranging from 600 to 1,066 mm (23.6-42”)
LCM Display 1.3" touchscreen
ESD Protection Air: ± 30kV, contact: ± 20kV
Ambient Operating Temperature -5 to 40° C (23 to 104° F)
Ambient Operating Humidity 10 to 90% noncondensing
Etherlighting™ Ethernet: Yes, SFP28: Yes
LEDs RPS: Yes
NDAA Compliant Yes
Certifications CE, FCC, IC
UniFi Network Application Requirements Version 9.0.114 and later
Details
Power Supply AU/NZ Power Cord included
Mounting Hardware Rack Mount Kit included
