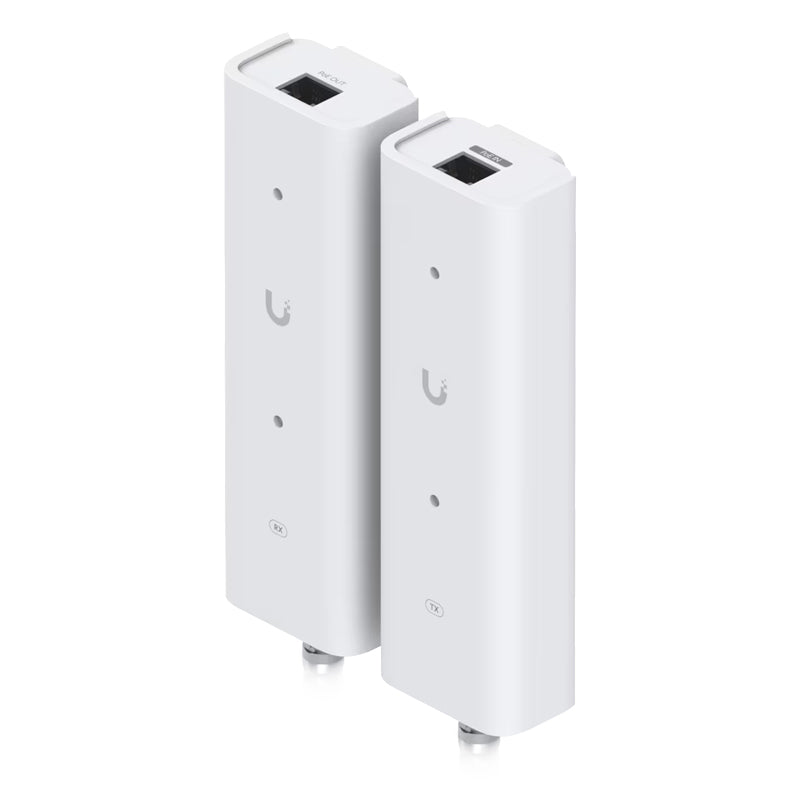

Ubiquiti UniFi PoE Over 2-Wire Retrofit Extender for Twisted-Pair or Coax Cables

Ubiquiti UniFi PoE Over 2-Wire Retrofit Extender, A pair of extenders that extends PoE over twisted-pair or coaxial cables, ideal for retrofit scenarios Ubiquiti UniFi PoE Over 2-Wire Retrofit Extender, A pair of extenders that extends PoE over twisted-pair or coaxial cables, ideal for retrofit scenarios. Transmitter ? (1) 2-wire input ? (1) 2-wire to BNC adapter Features Suitable for up to 750m cable lengths, refer to data sheet matrix for expected bandwidth and power output Extend PoE over existing twisted-pair or coax cables using the included 2-wire to BNC adapters Powered by PoE++ Details Manufacturer's Code UACC-Retrofit-PoE-2Wire Dimensions PoE in/out: 40 x 105 x 25 mm (1.6 x 4.1 x 1"), Adapter: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2") Weight PoE in: 77 g (2.7 oz), PoE out: 79 g (2.8 oz), Adapter: 140 g (4.9 oz) Enclosure material Polycarbonate Mounting material Polycarbonate Coaxial connector BNC female Networking interface (1) 10/100 MbE, (1) Homeplug AV Power method PoE++ PoE input (1) PoE++, 50V DC, 1.2A PoE output (1) PoE+, 48V DC, 0.6A Max. power consumption 3W (Without PoE output) ESD/EMP protection Air: ±8kV, contact: ±4kV Recommend max. cable length Refer to attached datasheet matrix LED White Ambient operating temperature - Ambient operating humidity 5 to 90% noncondensing Certifications CE, FCC, IC support Details Includes (1) Transmitter, (1) Receiver, (2) 2-wire to BNC Adapters Mounting Hardware Wall Mount Kit Included

Key features

• 10 to 40° C (14 to 104° F)
• (1) PoE++ input ?
• (1) 2-wire output ?
• (1) 2-wire to BNC adapter Receiver ?
• (1) PoE/PoE+ output ?
