Ubiquiti
Ubiquiti UniFi Mobile 4G LTE Industrial Router
Ubiquiti UniFi Mobile 4G LTE Industrial Router
SKU:UMR-Industrial
Regular price
$431.00 NZD
Regular price
Sale price
$431.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability

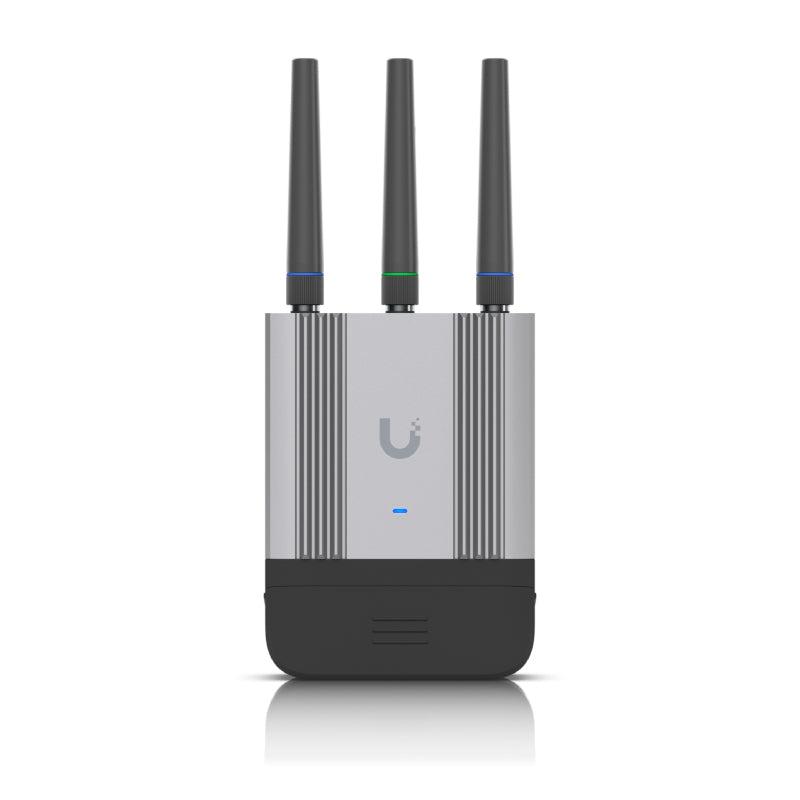

Ubiquiti UniFi Mobile 4G LTE Industrial Router
Ubiquiti UniFi Mobile 4G LTE Industrial Router. The Ubiquiti UniFi UMR-Industrial is a compact, ruggedized, and carrier unlocked LTE Cat 4 mobile WiFi router designed for indoor/outdoor IoT applications.
Features
- Site-to-site VPN and VPN client routing
- (2) GbE ports with (1) PoE output (when powered via PoE+)
- Powered using PoE, USB Type-C, or 4-pin DC power socket
- Outdoor GPS location tracking
- Flexible wall, pole, and DIN rail mounting
- Weatherproof (outdoor exposed) with the included cover
| Details | |
|---|---|
| Manufacturer's Code | UMR-Industrial-EU |
| Dimensions Without Antennas and Outdoor Cover | 114.5 x 93.6 x 32 mm |
| Dimensions With Antennas | 213 x 93.6 x 32 mm |
| Dimensions With Antennas and Outdoor Cover | 217 x 94 x 32 mm |
| Weight | Device: 360 g, Device with outdoor cover: 395 g, DIN rail/wall mounts: 25 g |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Wall/pole mount: polycarbonate, DIN rail mount: polycarbonate |
| Pole Mount Diameter | 1–2" on pipe outer diameter |
| Wind Loading | 38.8 N at 200 km/h |
| Weatherproofing | Device with outdoor cover: IP66 |
| Management Interface | Ethernet, WiFi |
| Networking Interface | (2) GbE RJ45 ports, LTE Category 4 radio, WiFi 4 |
| PoE Interface | (1) PoE input, (1) PoE output* (Max. 10W) *Requires a PoE+ switch |
| Power Supply | UniFi PoE switch (48—54V DC), USB Type-C (5V DC), 4-pin* ATX DC power socket (9—30V DC) *Pin 1 for Power + and Pin 2 for Ground |
| Maximum Power Consumption | 12.5W |
| SIM | nano-SIM (4FF) |
| LTE Bands | B1, B3, B7, B8, B20, B28 |
| LTE Throughput Speed | Download 150 Mbps / Upload 50 Mbps |
| WiFi Standards | 802.11 b/g/n, WiFi 2.4G, 20/40 MHz |
| Maximum WiFi TX Power | 22 dBm |
| GPS | Yes |
| External Antennas | (2) Mobile/LTE antennas with SMA male connectors, (1) GPS antenna with SMA male connector, (2) WiFi antennas with RP-SMA male connectors |
| Mounting | DIN rail/wall/pole mount (Included) |
| Ambient Operating Temperature | -40 to 70° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance® |
| Details | |
|---|---|
| Power Supply | USB-C Power Adapter (Included) |
| Mounting | Yes, DIN rail, pole and wall mounts included |
| Warranty | Standard 12 Month RTB |
