Ubiquiti

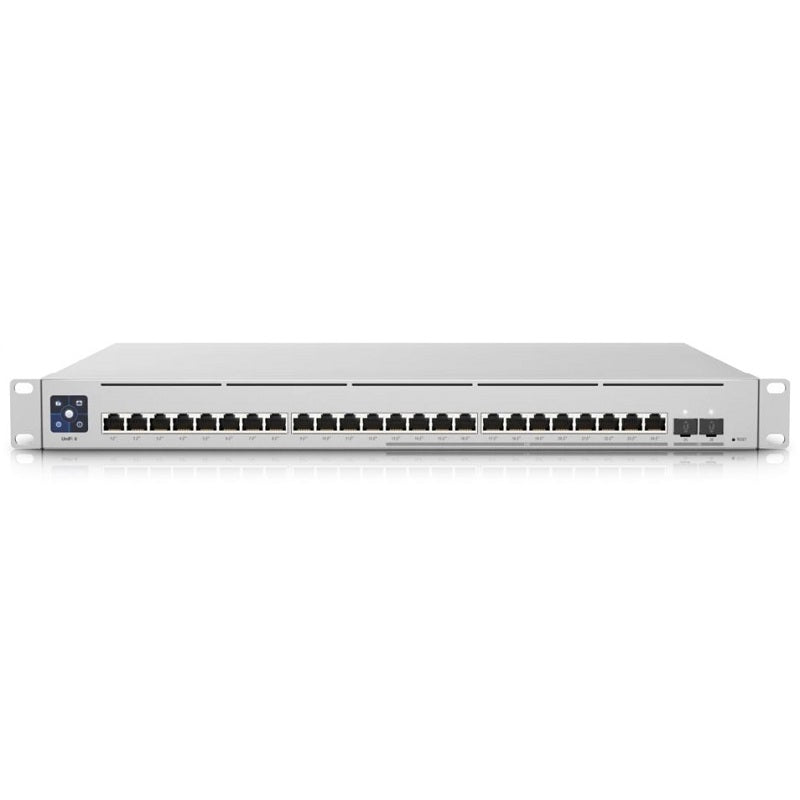

Ubiquiti UniFi Enterprise Multi-Gigabit Ethernet Switch with 24 PoE and SFP+

Ubiquiti UniFi Enterprise Multi-Gigabit Ethernet Switch with 24 PoE and SFP+

USW-Enterprise-24-PoE

$1,825.00 NZD
$1,825.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti UniFi Switch Enterprise 24 PoE Layer 3, PoE switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports
The Switch Enterprise 24 PoE (USW-Enterprise-24-PoE) is a fully managed, Layer 3 Multi-Gigabit switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports, (2) 10G SFP+ ports, and a 400W total PoE supply. The USW Enterprise 24 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.

Additionally, the USW Enterprise 24 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features
  • (1) 1.3" LCM color touchscreen with AR switch management
  • (12) GbE, 802.3at PoE+ RJ45 ports
  • (12) 2.5GbE, 802.3at PoE+ RJ45 ports
  • (2) 10G SFP+ ports
  • (1) USP RPS DC input
  • 400W total PoE supply
  • Layer 3 switching features
  • Single-row RJ45 port layout for easy patch panel cable management
  • Managed with the UniFi Network application: Version 5.14.12 and later
Details
Manufacturer's Code USW-Enterprise-24-PoE
Total Non-Blocking Throughput 62 Gbps
Switching Capacity 124 Gbps
Forwarding Rate 92.25 Mpps
Max. Power Consumption 550W
Power Method (1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz (1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A
Power Supply AC/DC, Internal, 550W
Management Interface Ethernet In-Band
Networking Interfaces (12) 10/100/1000 Mbps RJ45 Ethernet, (12) 100/1000/2500 Mbps RJ45 Ethernet
SFP+ Interfaces (2) 1/10G SFP+
PoE Interfaces (24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3af Mode 44 to 57V
Voltage Range 802.3at Mode 50 to 57V
Services SMB Layer 3 PoE Gigabit Ethernet Switch
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 - 95% Noncondensing
Dimensions 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
Weight Without Mount: 5.11 kg (11.27 lb), With Mount: 5.2 kg (11.46 lb)
Enclosure Materials SGCC Steel
Mount Material SGCC Steel
Certifications CE, FCC, IC
Details
Power Supply IEC Power Cord
Mounting Hardware 1U Rackmount
