Ubiquiti UniFi Enterprise Access Hub Facility Access

Ubiquiti UniFi Enterprise Access Hub Facility Access

EAH-8

$2,164.00 NZD
$2,164.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock

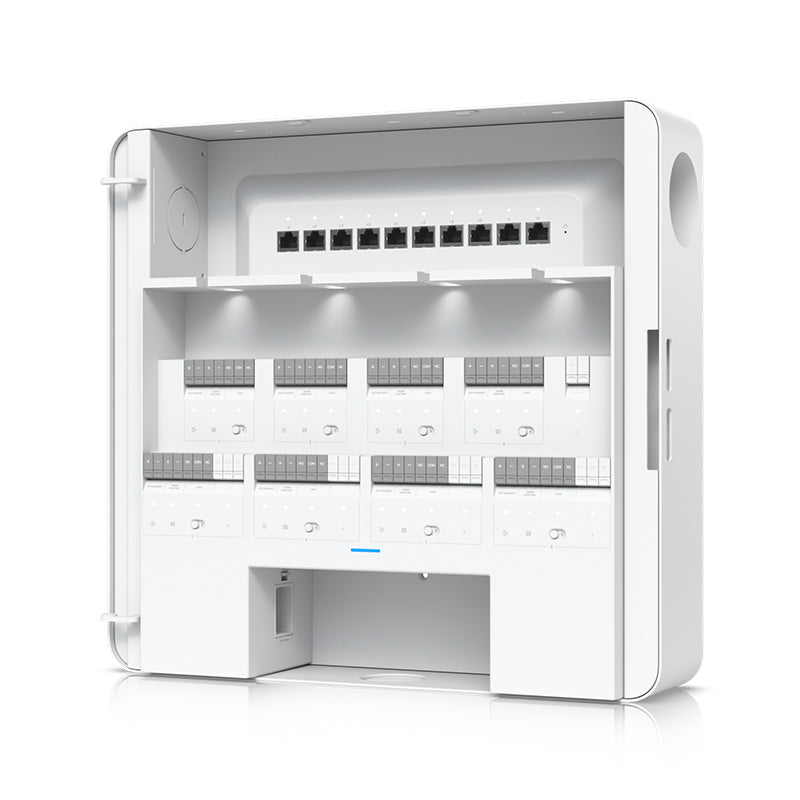

Ubiquiti UniFi Enterprise-grade Access Hub with entry and exit control to eight doors and battery backup support.
Ubiquiti UniFi Enterprise Access Hub Facility Access. Ubiquiti UniFi Enterprise Access Hub is an Enterprise-grade access hub with entry and exit control to eight doors and battery backup support., a part of UniFi Access solution.

Features
  • (8) Lock terminals (12V or Dry)
  • (8+8) Inputs for request-to-exit devices and door position sensors
  • (8) PoE ports for Access Readers
  • (4) AUX terminals for chimes, sirens, or door openers
  • (1) Battery backup input (32–48V)
Details
Manufacturer's Code EAH-8-EU
Dimensions 379 x 355 x 105 mm
Weight 9.1kg
Enclosure Material SGCC housing with PC cover
Mounting Material SGCC wall mount plate
Networking Interface (10) 1 Gbps Ethernet
Power Method Universal input, 100-240V AC,~4.4A Max, 50/60Hz, 32–48V DC Lead Acid Battery
Power Supply AC/DC, internal
Max Power Consumption 240W
PoE Interface (8) PoE (Pins 1, 2+; 3, 6-)
Voltage Range PoE Mode 44-57V DC
Total Available PoE 60W
Max PoE Wattage Per Port 15.4W
Button (1) Factory-reset
Digital Input (8) Inputs for request-to-exit devices, (8) Inputs for door position sensors, (1) Emergency
Dry Output Relay (8) Lock terminals (12V or Dry), (4) AUX terminals for advanced setup (Chime/Siren/Door opener)
Powered Output Relay Lock: 12V DC, 1A/ Dry, Aux: Dry only
Operating Environment Indoor use only
Operating Temperature 0 to 40° C (32 to 104° F)
Operating Humidity 5 - 90% Noncondensing
Certifications CE, FCC, IC
Details
Power Supply Yes, IEC cord provided
Mounting Wall-Mount and Screws included
