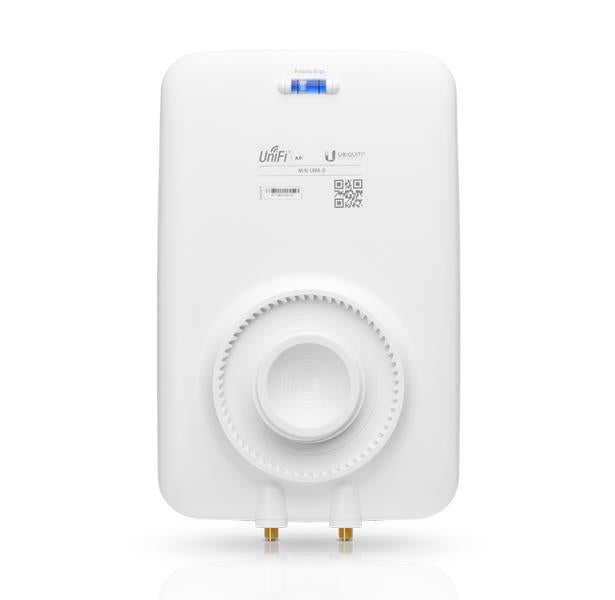

Ubiquiti UniFi Dual Band Dual Polarity 2.4GHz/5GHz MESH Sector Antenna

Ubiquiti UniFi Dual Band Dual Polarity 2.4GHz/5GHz MESH Sector Antenna

UMA-D

$199.00 NZD
$199.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti UniFi Mesh Dual Band Dual Polarity 802.11ac Directional Antenna
Ubiquiti UniFi Dual Band Dual Polarity MESH Antenna. The Ubiquiti UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customised pattern shaping. It is available in single and five packs.
Features
  • Optimised for 802.11ac, UMA-D offers a high efficiency directional radiation pattern with dual polarity
  • Encased in UV-stabilised plastic, can be used indoors or outdoors
  • Ball joint mount designed for precise aiming and can be mounted on a pole or wall
  • Connectorised antenna that is compatible with the UAP-AC-M
Details
Manufacturer's Product Code UMA-D
Frequency Range 2.4 - 2.5 GHz, 5.1 - 5.9 GHz
Gain 10dBi @ 2.4GHz, 15dBi @ 5GHz
Polarisation Dual-Linear
Max VSWR 2:1
Vertical Beamwidth 90deg @ 2.4GHz, 45deg @ 5GHz
Horizontal Beamwidth 90deg @ 2.4GHz, 45deg @ 5GHz
Elevation Beamwidth 90deg @ 2.4GHz, 45deg @ 5GHz
Connector Type (2) RP-SMA Female
Wind Loading 125 mph
Pole Mount Diameter 38 - 75mm
Details
Pole Mount Yes
Wall Mount Yes
Cables (2) RP-SMA to RP-SMA Coax Cables
