Ubiquiti

Ubiquiti UniFi Dream Wall All-in-one Internet Gateway

Ubiquiti UniFi Dream Wall All-in-one Internet Gateway

UDW

$2,272.00 NZD
$2,272.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Ubiquiti UniFi Dream Wall All-in-one internet gateway, WiFi access point, and UniFi Console with an abundance of PoE ports

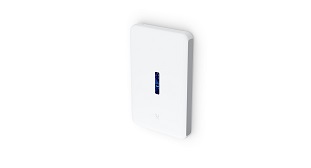

The Ubiquiti UniFi Dream Wall (UDW) is a Wall-mountable UniFi Gateway Console with a built-in high-speed access point, network video recorder, and PoE switch.

Performance
- Redundant WAN with failover and load balancing
- WiFi QoS with UniFi APs
- Application, domain, and country-based QoS
- Application and device type identification
- Additional internet failover with LTE Backup
- Internet quality and outage reporting

Next-generation security
- Application-aware firewall rules
- Signature-based IPS/IDS threat detection
- Content, country, domain, and ad filtering
- VLAN/subnet-based traffic segmentation
- Full stateful firewall

Advanced networking
- License-free SD-WAN
- WireGuard, L2TP and OpenVPN server
- OpenVPN client
- OpenVPN and IPsec site-to-site VPN
- One-click Teleport and UID VPN
- Policy-based WAN and VPN routing
- DHCP relay
- Customizable DHCP server
- IGMP proxy
- IPv6 ISP support
Features
  • Integrated Enterprise WiFi6 (4x4 MIMO)
  • Full UniFi OS and UniFi application support
  • 3.5+ Gbps routing
  • LAN ports - (1) 10G SFP+, (17) GbE RJ45, including (4) PoE++, (4) PoE+, and (4) PoE ports
  • WAN ports - (1) 10G SFP+, (1) 2.5GbE RJ45
  • 4.7" touchscreen for management
  • Integrated 128 GB SSD & pre-installed 512 GB microSD card
Details
Manufacturer's Code UDW
Dimensions 549 x 342 x 62 mm (21.6 x 13.5 x 2.4")
Weight 8.6 kg (19 lb)
Enclosure materials Polycarbonate, galvanized steel, aluminum alloy
Mount material Stainless steel
Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz
System memory 4 GB DDR4
On-board storage 16 GB eMMC, Integrated 128 GB SSD, Pre-installed 512 GB microSD card
Expansion slot Micro SD memory card (Requires a memory card with at least 128 GB of storage)
Management interface Ethernet, Bluetooth, WiFi
Networking interface (17) LAN: GbE RJ45 ports, (1) WAN: 2.5 GbE RJ45 port, SFP+ interface (1) LAN: 10G SFP+ port, (1) WAN: 10G SFP+ port
PoE interface (4) PoE (Pair A 1, 2+; 3, 6-), (4) PoE+ (Pair A 1, 2+; 3, 6-), (4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Power method Universal AC input 100—240V AC, 7A Max., 50/60Hz
Power supply (2) Hot-Swappable AC/DC 550W PSU (Comes with (1) pre-installed PSU)
Max. power consumption 532W
Max. PoE wattage per port by PSE PoE: 15.4W, PoE+: 30W, PoE++: 60W
Voltage range PoE mode PoE: 44—57V, PoE+/PoE++: 50—57V
Max. TX power 2.4 GHz: 23 dBm, 5 GHz: 26 dBm
MIMO 2.4 GHz: 2 x 2, 5 GHz: 4 x 4
Throughput rate 2.4 GHz: 300 Mbps, 5 GHz: 2.4 Gbps
Antenna gain 2.4 GHz: 5.9 dBi, 5 GHz: 6 dBi
ESD/EMP protection Air: ± 8kV, contact: ± 4kV
LCM display (1) 4.7" touchscreen
Button Factory reset
Mounting Wall mount (included)
Operating temperature -10 to 40° C (14 to 104° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Details
Power Cable Included
Mounting Hardware Wall Mount Included
