Ubiquiti

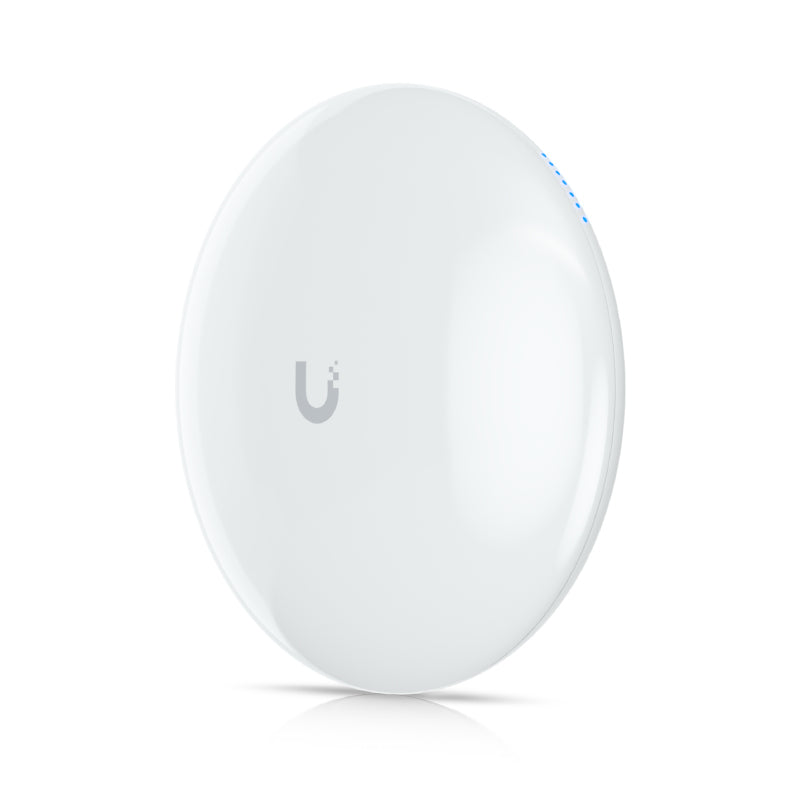

Ubiquiti UniFi Device Bridge Pro with integrated UniFi WiFi Auto-Link

Ubiquiti UniFi Device Bridge Pro with integrated UniFi WiFi Auto-Link

UDB-Pro

$442.00 NZD
$442.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti UniFi Device Bridge Pro with integrated UniFi WiFi Auto-Link
Ubiquiti UniFi Device Bridge Pro is a 5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.



Link at 5+ km distances with a point-to-point connection to another Device Bridge Pro, or uplink seamlessly with UniFi WiFi Auto-Link
Features
  • (2) GbE ports with (1) PoE output for PoE devices
  • Powered using PoE/PoE+
  • PoE Passthrough (when powered via PoE+)
  • Pole mounting
  • Weatherproof (outdoor exposed)
  • Sold as a single unit
Details
Manufacturer's Code UDB-Pro-AU
Dimensions Ø189.5 x 64.3 mm
Weight Without mount: 431 g, With mount: 515 g
Enclosure Material UV-resistant polycarbonate
Mount Material UV-stabilized polycarbonate, stainless steel
Pole Mount Diameter 20–53.1 mm on pipe outer diameter
Wind Loading 69 N at 200 km/h
Weatherproofing IPX6
Management Interface WiFi, Ethernet
Networking Interface (2) GbE RJ45 port
PoE Interface (1) PoE in (PoE output not used), (1) Passive PoE output
Power Method PoE, PoE+ (Required for PoE output)
Power Supply UniFi PoE switch, 48V, 0.32A PoE adapter (Included)
supported Voltage Range 42.5–57V DC
Maximum Power Consumption 9W
Maximum TX Power 25 dBm
MIMO 5GHz: 2x2
Antenna Gain 19 dBi
Antenna Internal
Range 5+ km
Mounting Pole (Included)
Ambient Operating Temperature -40 to 60° C
Ambient Operating Humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Details
Power Injector Yes, Included
Antenna External 4 dBi Omni
