Ubiquiti

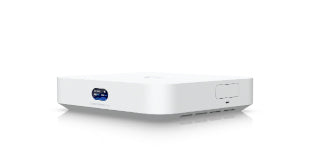

Ubiquiti UniFi Cloud Gateway Max Multi-Gigabit HyperFibre Capable Ethernet Router with 512GB NVMe SSD Storage

Ubiquiti UniFi Cloud Gateway Max Multi-Gigabit HyperFibre Capable Ethernet Router with 512GB NVMe SSD Storage

UCG-Max

$605.00 NZD
$605.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti UniFi Cloud Gateway Max Multi-Gigabit Ethernet Router with 512GB NVMe SSD Storage, perfect for 2Gbps HyperFibre
The Ubiquiti UniFi Cloud Gateway Max (UCG-Max) is a compact 2.5Gbps Ethernet Cloud Gateway Router with 30+ UniFi device / 300+ client support, 2.3 Gbps IPS routing, and selectable NVR storage.

Features
  • Perfect for 2Gbps HyperFibre
  • Includes full UniFi application suite for device management (Network, Protect, Access, Talk, Connect)
  • Manages 30+ UniFi devices and 300+ clients
  • 2.3 Gbps routing with IDS/IPS
  • Multi-WAN load balancing
  • BGP + OSPF Dynamic Routing
  • 512 GB NVMe SSD storage for NVR
  • 0.96" LCM status display
  • USB-C powered (adapter included)
Details
Manufacturer's Code UCG-Max
Dimensions 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
UniFi Application Suite Network, Protect, Access, Talk, Connect
Managed UniFi Devices 30+
Managed Cameras (15) HD, (8) 2K, (5) 4K
Managed Access Hubs 50
Simultaneous Users Connected 300+
Max. WAN Port Count 4
Default WAN Ports (1) 2.5 GbE RJ45
Port Layout 2.5 GbE RJ45: 5 (2.5G/1G/100M/10M)
IDS/IPS Throughput 2.3 Gbps
Form Factor Compact desktop
NVR Storage 512 GB
Max. Power Consumption 16.1W
Power Method USB type C (5V DC/5A)
Power Supply USB type C (5V DC/5A) (Adapter included)
supported Voltage Range 100—240V AC
Heat Dissipation 55 BTU/hr
Processor Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory 3 GB
Stateful Firewall Yes
Application-Aware Layer 7 Firewall Yes
DPI & Traffic Identification Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) Yes
Content Filtering Yes
Intrusion Prevention (IPS/IDS) Yes
Ad Blocking Yes
IDS/IPS Signatures 55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation Yes
License-Free SD-WAN Yes
Weight Without SSD: 460 g (1 lb), With SSD: 519 g (1.1 lb)
Enclosure Material Polycarbonate
LCM Display 0.96" status display
Management Ethernet, Bluetooth
LEDs Ethernet
Button (1) Factory-reset
ESD/EMP Protection Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature -10 to 40° C (14 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant Yes
Certifications CE, FCC, IC, Anatel: 09004-24-08356, SRRC
Details
Power Supply USB-C Power Adapter (Included)
