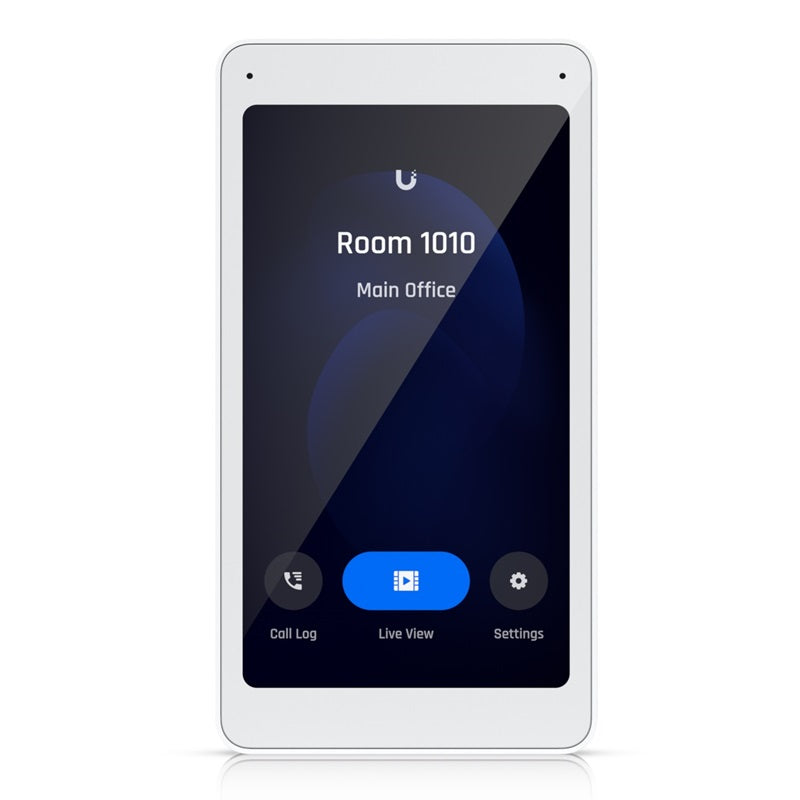

Ubiquiti UniFi Access Intercom Viewer

Ubiquiti UniFi Access Intercom Viewer Ubiquiti UniFi Access Intercom Viewer is a display that pairs with the Access Intercom for visitor screening and remote access control, to mount in multiple locations throughout your building. Features Receives doorbell calls from one or more locations Two-way audio Instant live view 5" touch display Connect and power using a PoE switch Details Manufacturer's Code UA-Intercom-Viewer Networking interface (1) 10/100 Mbps RJ45 port Management interface Ethernet Power method PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU supported voltage range 44–57V DC Max. power consumption 5W Display 127 mm (5") diagonal Resolution 720 x 1280 (9:16) Display luminance 300 nits (typical) Touch screen technology Capacitive multi-touch Screen orientation Portrait Microphone Yes Speaker Yes Button Factory reset Ambient operating temperature 0 to 40° C (32 to 104° F) Operating environment Indoor use only Ambient operating humidity 5 to 95% noncondensing Software information The software version of a product can be checked at https://unifi.ui.com UL 294 level Destructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I UL 294 statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits... The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable. CAN/ULC-60839-11-1 Grade Grade assignment: I Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 Document number, and issue date and/or revision level UA-Intercom-Viewer, V01 Dimensions 135 x 72 x 31.8 mm (5.3 x 2.8 x 1.3") Weight 168 g (5.9 oz) Enclosure materials Glass, polycarbonate Mount material Aluminum alloy Mounting Wall (Included), Gang box mount (Gang box not included) Help and Documentation Console Capacity Calculator Case Studies Blogs support Go Wireless Help Centre Solutions Details Power Supply Not Included Mount Kit Included

Key features

• PoE cabling requirements Cable 5e cabling is the minimum performance category recommended
• The performance category utilized should match the transmission speed required at the installation site
