• Ubiquiti UniFi Access Door Hub Mini
1 1

Ubiquiti

Ubiquiti UniFi Access Door Hub Mini

Ubiquiti UniFi Access Door Hub Mini

UA-Hub-Door-Mini

$236.00 NZD
$236.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

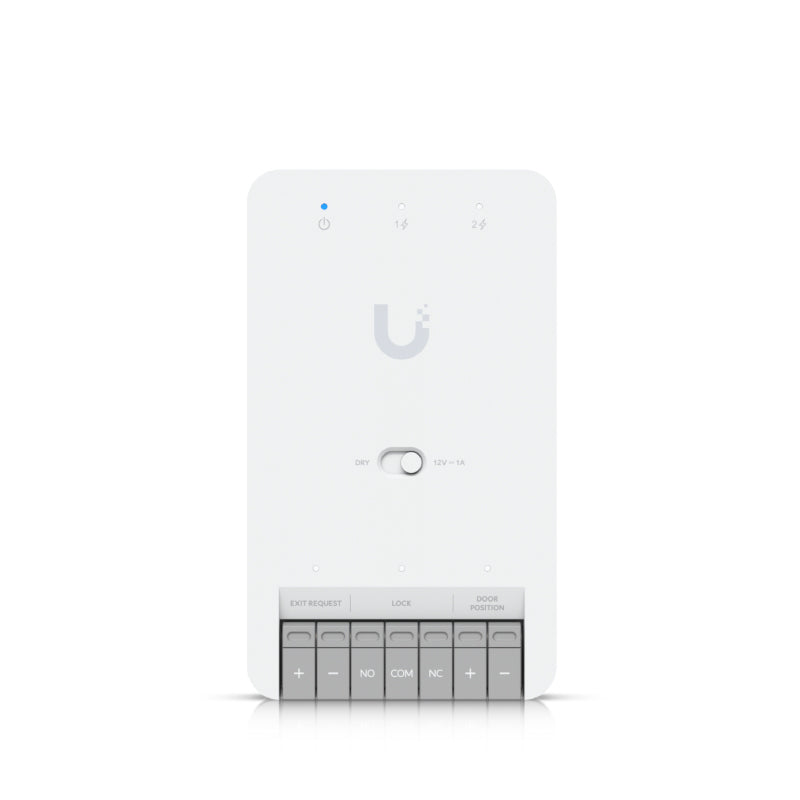

Ubiquiti UniFi Access Door Hub Mini UA-Hub-Door-Mini
Ubiquiti UniFi Access Hub is a compact access control Hub for a single door. Part of the UniFi Access solution.

Features
  • Powered by 802.3bt (PoE++) switch
  • Three 802.3af PoE ports for UniFi readers and Protect surveillance cameras
  • 12V powered and dry relays compatible
  • DIN-rail mounting
Details
Manufacturer's Code UA-Hub-Door-Mini
Dimensions 113 x 66 x 27.6 mm
Weight 190 g
Enclosure Material Polycarbonate, metal
Networking Interface (3) GbE RJ45 ports
Power Method PoE++
Maximum Power Consumption Without PoE output: 19W, With PoE output: 50W
PoE Input 50V DC, 1A
PoE Output (2) PoE ports, total 31W
Button (1) Factory-reset, (1) Dry/Wet switch
Digital Input Request to exit/door position sensor
Output Relay Dry: 30V DC, 1A, Wet: 12V DC, 1A
Operating Environment Indoor use only
Ambient Operating Temperature -10 to 40° C
Ambient Operating Humidity 5 to 90% noncondensing
Certifications CE, FCC, IC
Details
Power Supply Not Included
Mounting DIN Rail and Screws included
