Ubiquiti

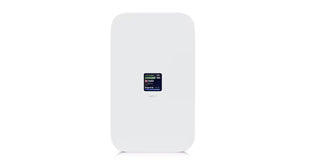

Ubiquiti UniFi 5G Max High-Performance Indoor Cellular Modem

Ubiquiti UniFi 5G Max High-Performance Indoor Cellular Modem

U5G-Max

$879.00 NZD
$879.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Ubiquiti UniFi 5G Max, a high-performance 5G (3.4 Gbps) modem for any Unifi deployment. Instantly adopt through any UniFi PoE port, it delivers automatic setup, dual SIM/eSIM, and seamless failover
The Ubiquiti UniFi 5G Max is a high-performance 5G (3.4 Gbps) modem for any Unifi deployment. Instantly adopt through any UniFi PoE port, it delivers automatic setup, dual SIM/eSIM, and seamless failover.

Features
  • UniFi Gateway virtual WAN
  • 5G mobile network receiver
  • 1.3" touchscreen
  • Table stand, wall or window mounting
  • 2.5 GbE, PoE in RJ45 port
  • (1) Nano-SIM card slot, (1) Nano-SIM card slot or eSIM (Note. Nano-SIM 2 cannot be used when an eSIM is active.)
Details
Manufacturer's Code U5G-Max
Dimensions 180 x 109 x 33.8 mm (7.1 x 4.3 x 1.3")
Networking Interface (1) 2.5 GbE RJ45 port, 5G NR and LTE radio
SIM (1) Nano SIM, (1) Nano-SIM or eSIM (Nano-SIM 2 cannot be used when an eSIM is active)
PoE Interface (1) PoE input
Mounting Desktop stand, wall, window mount (Included)
Tamper Resistance IK04
Weight Device: 410 g, Stand: 215 g, Wall mount: 7.6 g, Window mount: 20 g
Enclosure Material Polycarbonate, aluminum alloy
Mount Material Polycarbonate, silicone rubber
Management Ethernet
5G NR Frequency Bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
5G NR Max. TX Power HPUE power class 2: 26 dBm
4G LTE Frequency Bands B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
4G LTE Max. TX Power HPUE power class 2: 25 dBm
3G UMTS Frequency Bands B1, B2, B4, B5, B8, B19
Peak Data Speed 5G NSA: Downlink 3.4 Gbps Uplink 560 Mbps, 5G SA: Downlink 1.8 Gbps Uplink 650 Mbps, 4G LTE: Downlink 1.6 Gbps, Uplink 210 Mbps
Antennas (4) Embedded cellular antennas
Max. Power Consumption 14.5W
Power Method PoE
Display 1.3" touchscreen
Buttons (1) Factory-reset
Ambient Operating Temperature 0 to 40 °C (32 to 104 °F)
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant Yes
Certifications FCC, IC, CE, PTCRB, GCF, AT&T, T-Mobile, Verizon
Application Requirements UniFi Network Version 10.0.162 and later
Details
Power Supply Not Included
Mounting Desktop stand, wall, window mount (Included)
