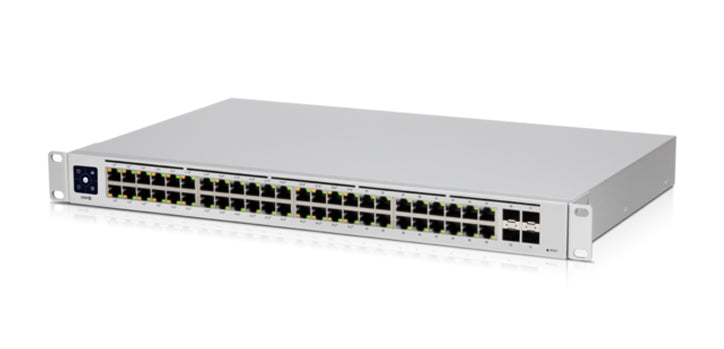

Ubiquiti UniFi 48 Port Gigabit Switch with PoE and SFP
Ubiquiti UniFi 48 Port Gigabit Switch with PoE and SFP
SKU:USW-48-POE
Regular price
$1,364.00 NZD
Regular price
Sale price
$1,364.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability
Ubiquiti UniFi 48 Port Gigabit Switch with PoE and SFP
The Ubiquiti UniFi Switch USW-48-PoE is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports including 32 auto-sensing 802.3at PoE+ ports, and 4 SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-48-PoE features a 1.3" touch LCM to provide status.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-48-PoE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Note: Only Ports 1-32 can supply POE+ IEEE 802.3af/at and that the Total available power budget is 195 Watts.
New replacement for older US-48-500W PoE Switches.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-48-PoE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Note: Only Ports 1-32 can supply POE+ IEEE 802.3af/at and that the Total available power budget is 195 Watts.
New replacement for older US-48-500W PoE Switches.
Features
- (48) Gigabit Ethernet Ports including (32) 802.3at PoE+
- (4) 1G SFP Ports
- 1.3" touch LCM
- Managed by UniFi Controller
- 240W Power supply
| Details | |
|---|---|
| Manufacturer's Code | USW-48-POE |
| Dimensions | 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72") |
| Weight (With Rackmount Brackets) | 4.61 kg (10.16 lb) |
| Networking Interfaces | (48) 10/100/1000 RJ45 Ports, (4) 1G SFP Ethernet Ports |
| Management | Ethernet In-Band |
| Power Method | 100-240VAC, 50/60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 240W |
| supported Voltage Range | 100 to 240VAC |
| Max. Power Consumption (Excluding PoE Output) | 45W |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE Interfaces | Ports 1-32, POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
| Max. PoE Wattage per Port by PSE | 802.3at 32W |
| Voltage Range 802.3af Mode | 44-57V |
| Voltage Range 802.3at Mode | 50-57V |
| Details | |
|---|---|
| Power Supply | IEC Power Cord |
| Mounting Hardware | 1U Rackmount |
