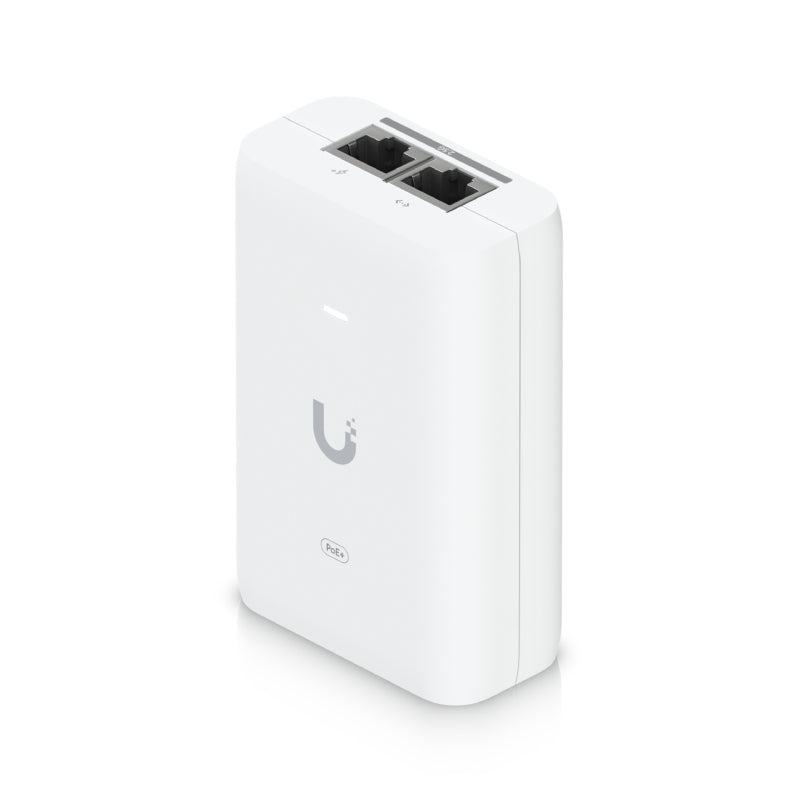

Ubiquiti UniFi 2.5G Ethernet PoE+ Adapter (30W)

Ubiquiti 802.3at 2.5 Gigabit Ethernet PoE Injector 48VDC 30W Ubiquiti UniFi 2.5Gbps Ethernet PoE+ Adapter 30W.The UACC-PoE+-2.5G is an adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection. Features Delivers up to 30W of PoE+ Surge, peak pulse, and overcurrent protection Contains RJ45 data input, AC cable with earth ground, and PoE+ output LED indicator for status monitoring Details Product Code UACC-PoE+-2.5G Dimensions 93 x 62 x 35 mm Weight 156 g Output Voltage 48V DC @ 0.65A LAN Activity Indicator No Gigabit LAN Port Yes, up to 2.5 GbE Remote Reset Capability No Reset Button No Rated Voltage 100—240V AC @ 50/60Hz Input Current 0.75A max.. 3% 2-pair Powering Pins 4, 5 (+) and 7, 8 (-) 4-pair Powering No Data In / PoE RJ45 shielded socket Surge Protection Difference and common mode Clamping Protection 11V data, 60V power Maximum Surge Discharge 1500A (8/20 ?s) power Peak Pulse Current 36A (10/1000 ?s) data Shunt Capacitance <5 pF data Response Time <1 ns Ambient Operating Temperature 0 to 40° C Storage Temperature - Ambient Operating Humidity 10 to 95% noncondensing Certifications CE, FCC, IC, UL, UKCA, KC, CCC, RoHS support Go Wireless Help Centre Solutions Details Power Cord 3 Pin Clover Lead

Key features

• 30 to 70°C
• Inrush Current <150A peak @ 230V AC Efficiency >87% Output Ripple 1% max
• Switching Frequency 65 kHz maximum Line Regulation ?
• 1% Load Regulation ?
