Ubiquiti

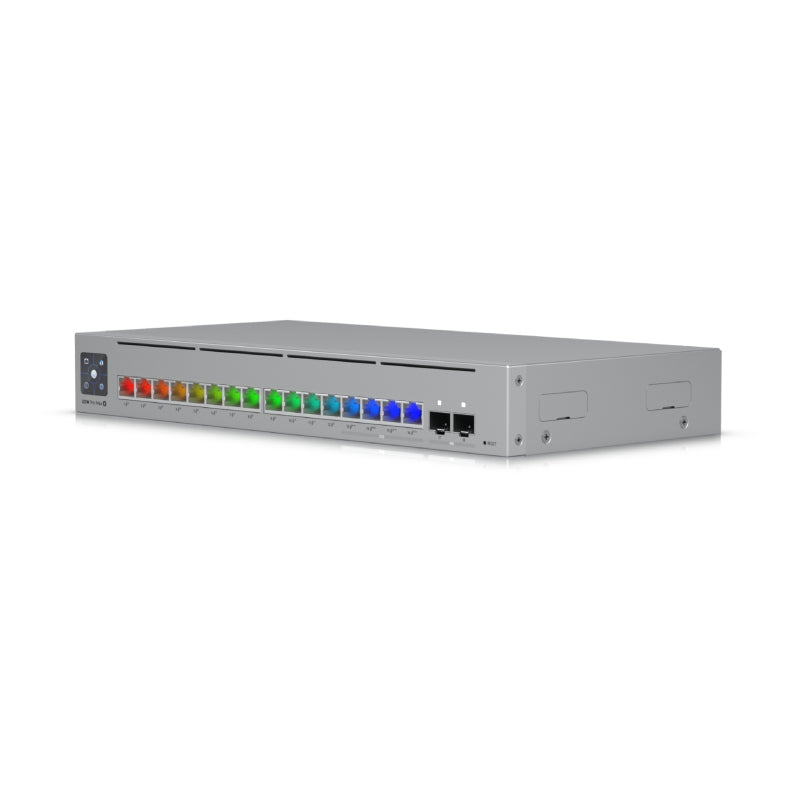

Ubiquiti UniFi 16-port, Layer 3 Switch with Etherlighting, 2.5 GbE, PoE++

Ubiquiti UniFi 16-port, Layer 3 Switch with Etherlighting, 2.5 GbE, PoE++

USW-Pro-Max-16-PoE

$924.00 NZD
$924.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti UniFi 16-port, Layer 3 Switch with Etherlighting, 2.5 GbE, PoE++
Ubiquiti UniFi 16-port, Layer 3 Switch with Etherlighting™, 2.5 GbE, PoE++ output, and versatile mounting options.

Features
  • Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
  • (4) 2.5 GbE PoE++ ports
  • (12) GbE PoE+ ports
  • (2) 10G SFP+ ports
  • 180W total PoE availability
  • Versatile desktop, wall, and rack mounting
  • Silent, fanless cooling system
Details
Manufacturer's Code USW-Pro-Max-16-PoE-AU
Dimensions 325.1 x 160 x 43.7 mm
Weight 2.1 kg
Enclosure Material SGCC steel
Networking Interface (12) GbE RJ45 ports, (4) 1/2.5 GbE RJ45 ports, (2) 10G SFP+ ports
PoE Interface (12) PoE/PoE+ (Pins 1, 2+; 3, 6-), (4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total Non-blocking Throughput 42 Gbps
Switching Capacity 84 Gbps
Forwarding rate 62.496 Mpps
Power method DC Adapter
Power supply 54V, 210W
Maximum Power Consumption 30W (Excluding PoE Output)
Total Available PoE 180W
Maximum PoE Wattage per Port by PSE PoE: 15.4W, PoE+: 30W, PoE++: 60W
Ambient Operating Temperature -5 to 40° C
Ambient Operating Humidity 10 to 90% noncondensing
Etherlighting™ Modes Ethernet/SFP+: Locating, Speed/link, Native VLAN/network
Certifications CE, FCC, IC
Details
Power Supply IEC Power Cord
Mounting Hardware 1U Rackmount, not included
